Procedures

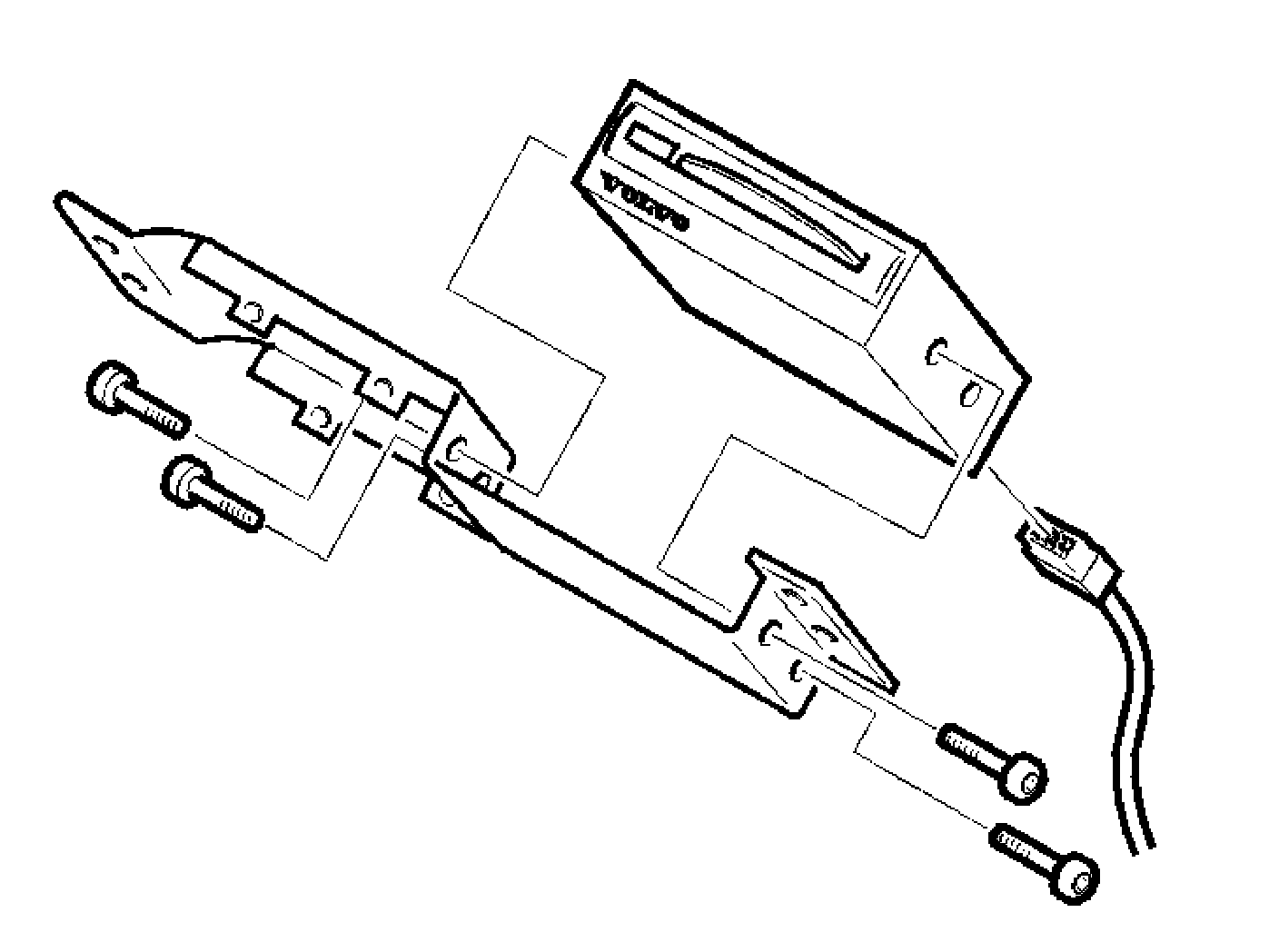

Replacing CD-ROM player
- Ignition off.

Remove:







- TMC receiver
- CD-ROM player from the bracket.

Install:
- CD-ROM player onto bracket.
- TMC receiver.

Finishing
- Check that the system appears to be working normally.
- Check no diagnostic trouble codes (DTCs) have been stored during the repair.
