Checking the Function of the Transmission

Checking the function of the transmission

Checking the function of the transmission

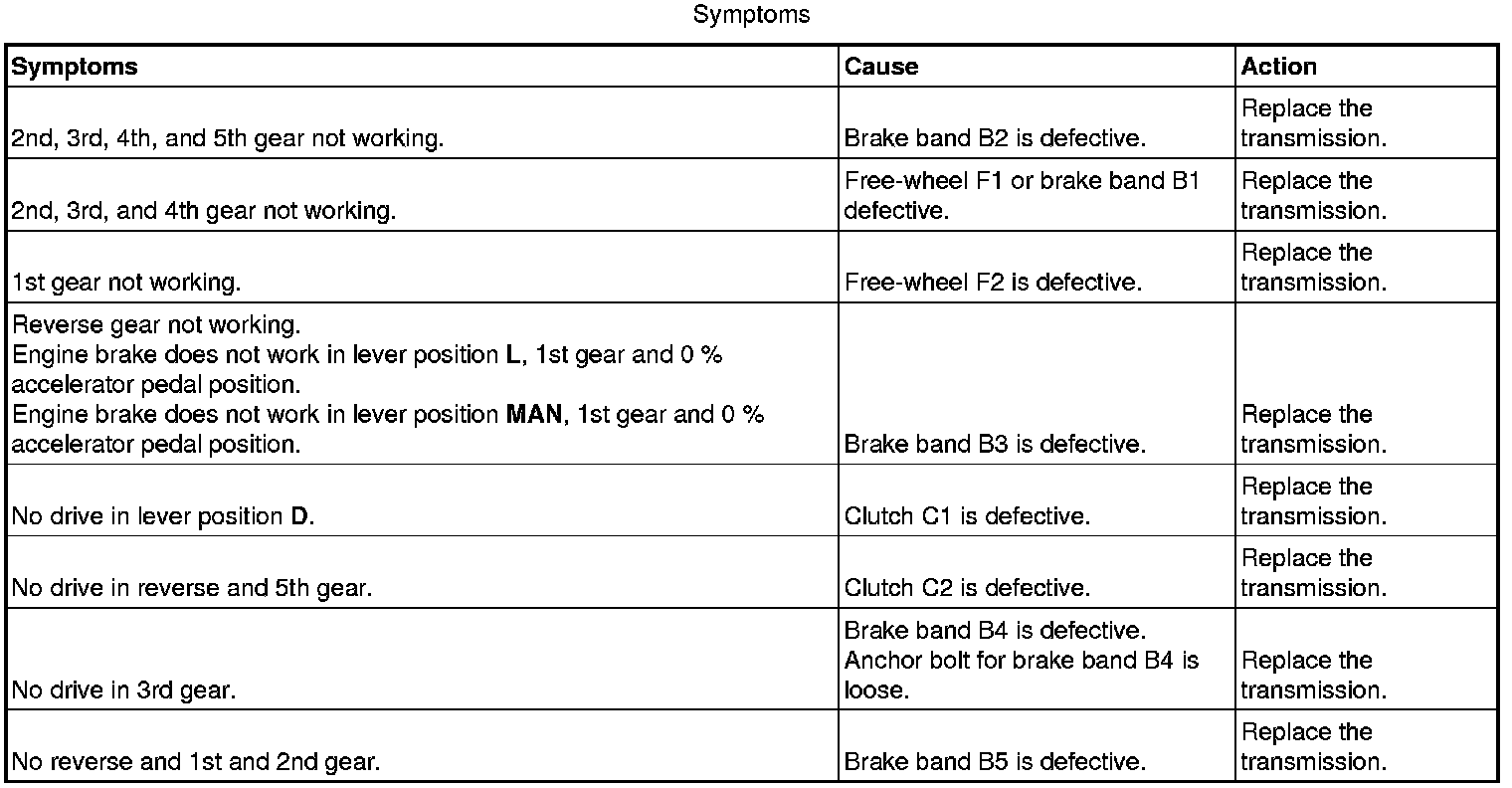

Note! The information can be used when all other troubleshooting has failed and the problem symptoms still remain.

Hint: Information for checking lost drive in other gears than 1st gear and reverse:

Lever carrier, standard
- D = 1st gear.
- L + Winter mode = 2nd gear.
- D + Winter mode = 3rd gear.

Lever carrier, Geartronic (MAN)
- Manual gear position = 3rd gear.





Other information
- Component/function, AW55-50/51SN Description and Operation
