Transmission Output Speed Sensor, Replacing

Transmission output speed sensor, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Preparations
Ignition off.

Removing the air cleaner (ACL) housing and intake manifold

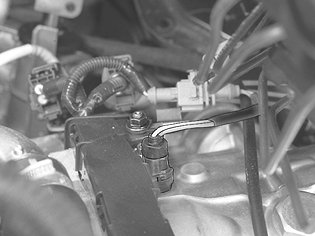

Disassembling the connector for the transmission output speed sensor. Removing the sensor




Remove the nut for the cable duct / bracket. Unhook the components.
Clean thoroughly around transmission output speed sensor. Remove the sensor.

Lubricating the O ring for the new transmission output speed sensor. Installing the sensor




Install the sensor. Tighten to 5.5 Nm .

Install:
- the bracket and cable duct. Tighten to 5.5 Nm
- the connector.

Installing the air cleaner (ACL) housing and intake manifold






Checking diagnostic trouble codes (DTCs)
Check and erase any diagnostic trouble codes (DTCs).
