Transmission Input Speed Sensor, Replacing

Transmission input speed sensor, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Replacing the transmission input speed sensor

Replacing the transmission input speed sensor V70 -2000 and S80
Replacing the transmission input speed sensor V70 -2000, see Replacing the transmission input speed sensor V70 -2000
Replacing the transmission input speed sensor S80, see Replacing the transmission input speed sensor S80

Replacing the transmission input speed sensor V70 -2000

Removing engine compartment components




Ignition off.

Remove:

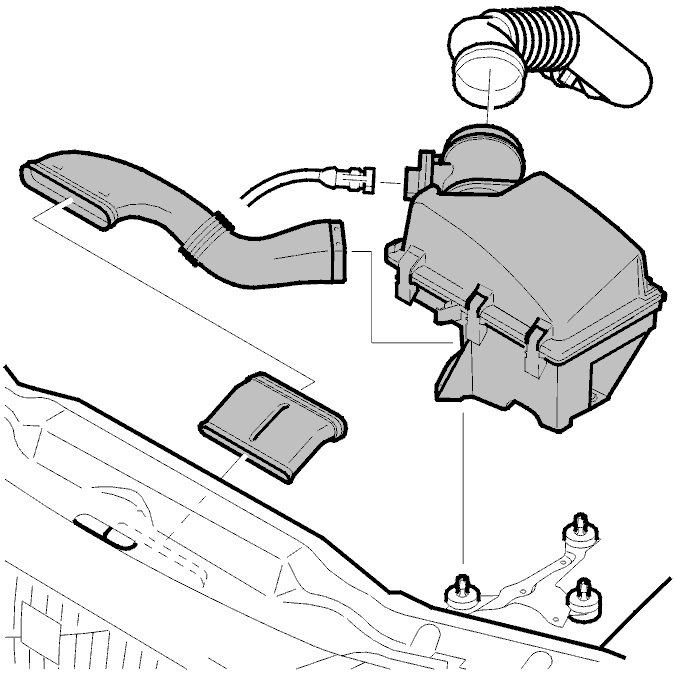

- the air cleaner (ACL) housing and the intake manifold
- the battery
- the battery shelf.

Removing the gear selector cable





Remove:

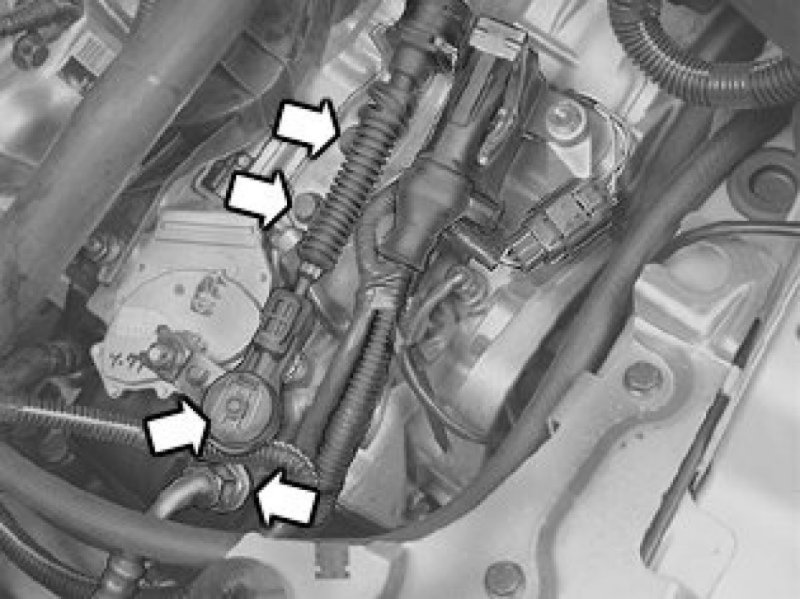

- the screws from the bracket for the gear selector cable
- the cable from the lever. Move the cable to one side
- the screws for the large connector. Separate the connector.

Disassembling the large connector





Remove:

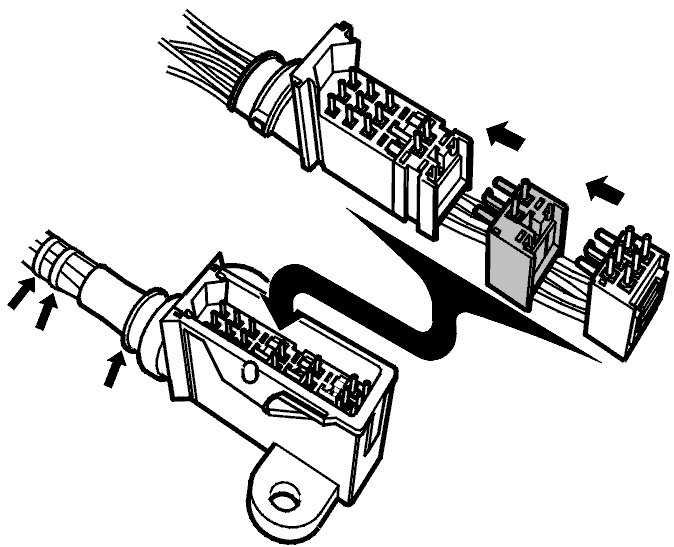

- the tie straps around the rubber seal for the connector and cable harness
- the rubber seal.

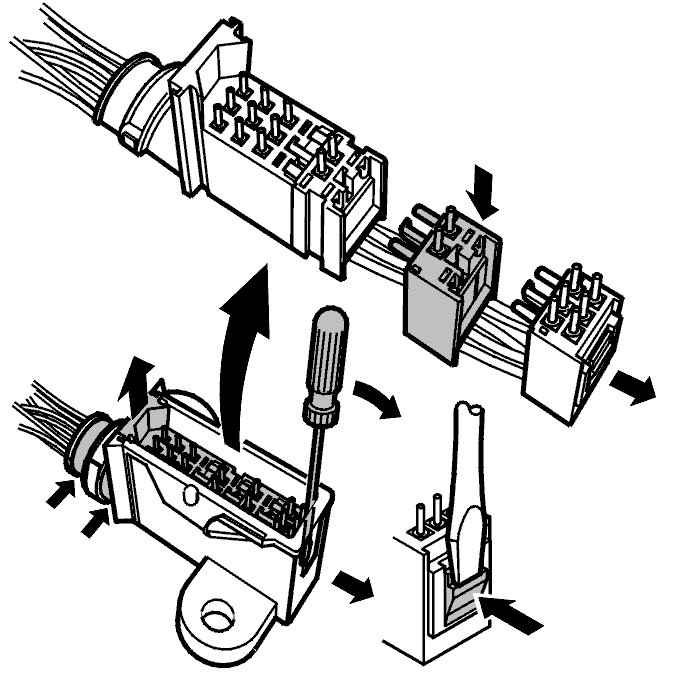

Insert a screwdriver between the casing and socket. Press in the lock while sliding the bases out of the casing.
Detach the base for the transmission input speed sensor from the other bases.

Replacing the sensor




Clean thoroughly around the sensor.

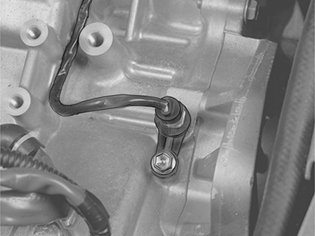

Remove the sensor

Install the new sensor
Apply a little Vaseline to the sensor O-ring. Tighten to 5.5 Nm .

Assembling the connector




Ensure that the rubber seal is in position.
Install the tie straps around the rubber seal.

Installing the gear selector cable





Install:
- the large connector and the bracket. Tighten the smaller connector. Tighten to 25 Nm . Connect the large connector
- the tie straps for the cable harness
- the cable on the lever
- the screws for the bracket. Tighten to 25 Nm .

Installing engine compartment components





Install:
- the battery shelf
- the air cleaner (ACL) housing and the intake manifold
- the battery.

Checking diagnostic trouble codes (DTCs)
Check and erase any diagnostic trouble codes (DTCs).

Replacing the transmission input speed sensor S80

Removing engine compartment components




Ignition off.
Remove the air cleaner (ACL) housing assembly with the intake manifold.

Removing the gear selector cable





Remove:
- the screws from the bracket for the gear selector cable
- the cable from the lever. Move the cable to one side
- the screws for the large connector. Separate the connector.

Disassembling the large connector





Remove:
- the tie straps around the rubber seal for the connector and cable harness
- the rubber seal.
Insert a screwdriver between the casing and socket. Press in the lock while sliding the bases out of the casing.
Detach the base for the transmission input speed sensor from the other bases.

Replacing the sensor




Clean thoroughly around the sensor.

Remove the sensor

Install the new sensor
Apply a little Vaseline to the sensor O-ring. Tighten to 5.5 Nm .

Assembling the connector




Ensure that the rubber seal is in position.
Install the tie straps around the rubber seal.

Installing the gear selector cable





Install:
- the large connector and the bracket. Tighten the smaller connector. Tighten to 25 Nm . Connect the large connector
- the tie straps for the cable harness
- the cable on the lever
- the screws for the bracket. Tighten to 25 Nm .

Installing engine compartment components




Install the air cleaner (ACL) housing, including all hoses and electrical terminals.

Checking diagnostic trouble codes (DTCs)
Check and erase any diagnostic trouble codes (DTCs).
