Procedures

Control Arm Front, Replacing

Special Tools: 998 5434, 999 5461, 998 5972, 951 2050

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparations

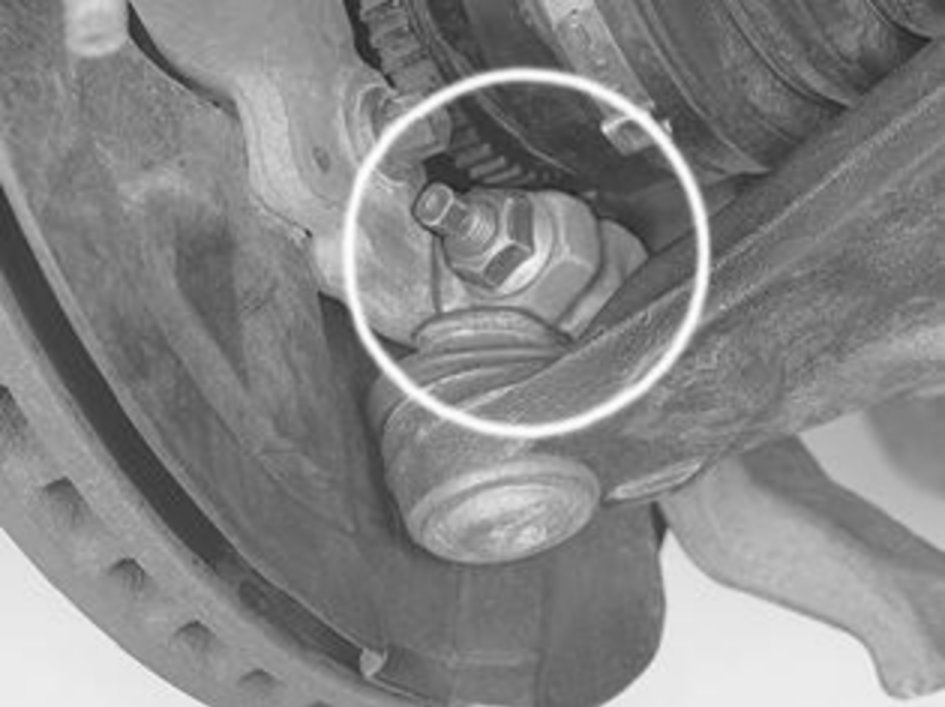

Cleaning around the ball joint







- Blow clean around the ball joint with compressed air.
- Generously spray the ball joint and the screw and nut retaining the ball joint using rust penetrator.

Removing the ball joint from the wheel spindle







NOTE: Do not insert a screwdriver or punch between the ears on the wheel spindle.

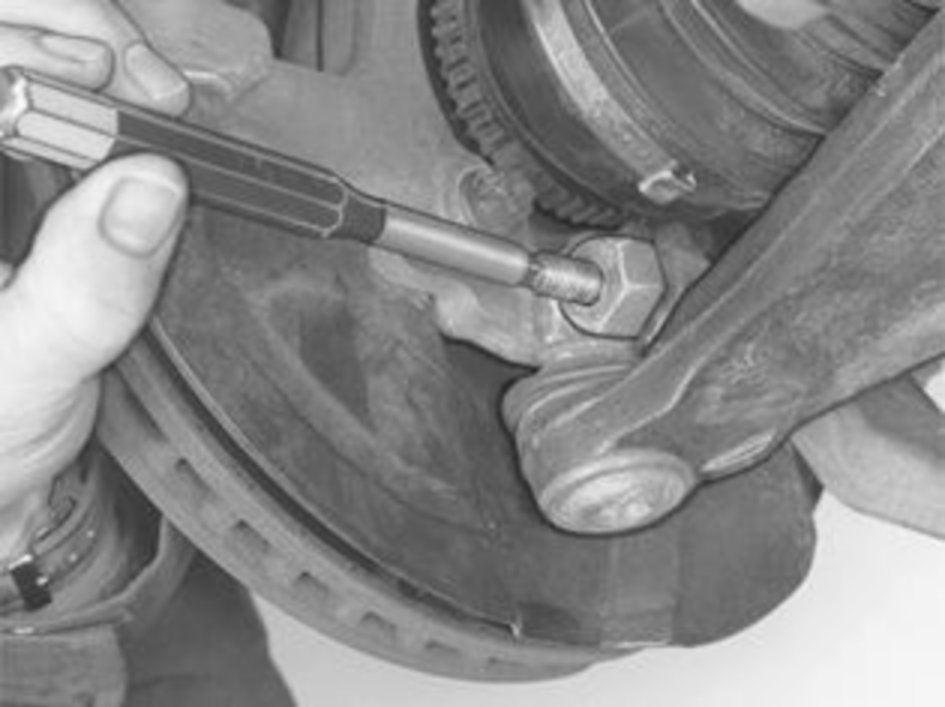

- If the screw has rusted solid, slacken off the nut a few turns. Knock the screw so that it loosens.
- Remove the screw and the nut.
- Spray the ball joint with rust penetrator again.

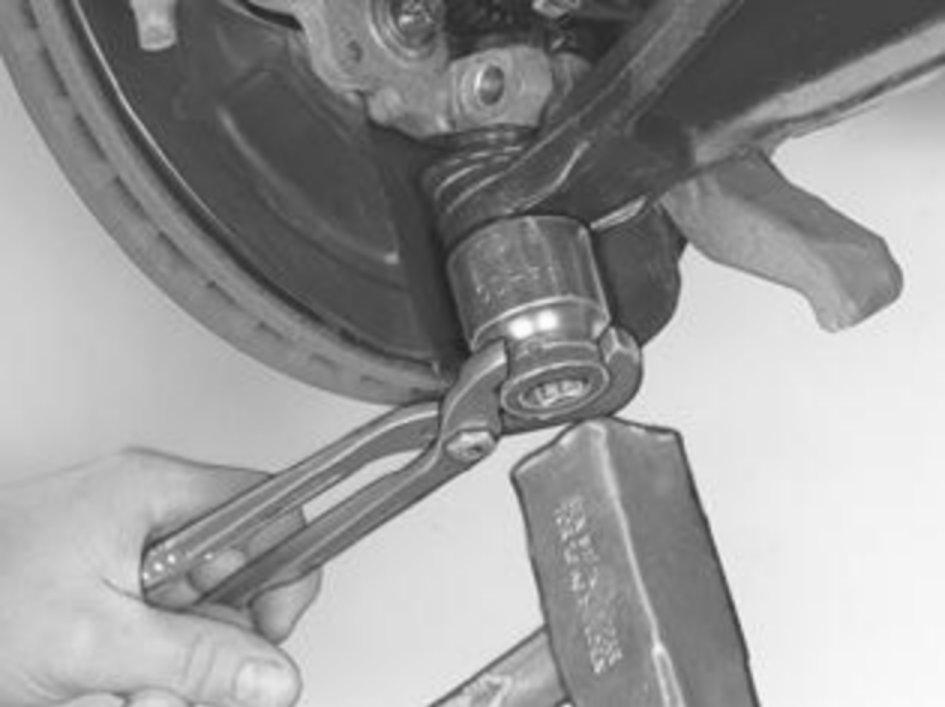

NOTE: The inner diameter of the socket must be larger than the outer diameter of the cover. This is to prevent damage to the cover.

- Tap the ball joint off the wheel spindle.
- Use a socket as a spacer.
- Spray the ball joint with rust penetrator again.

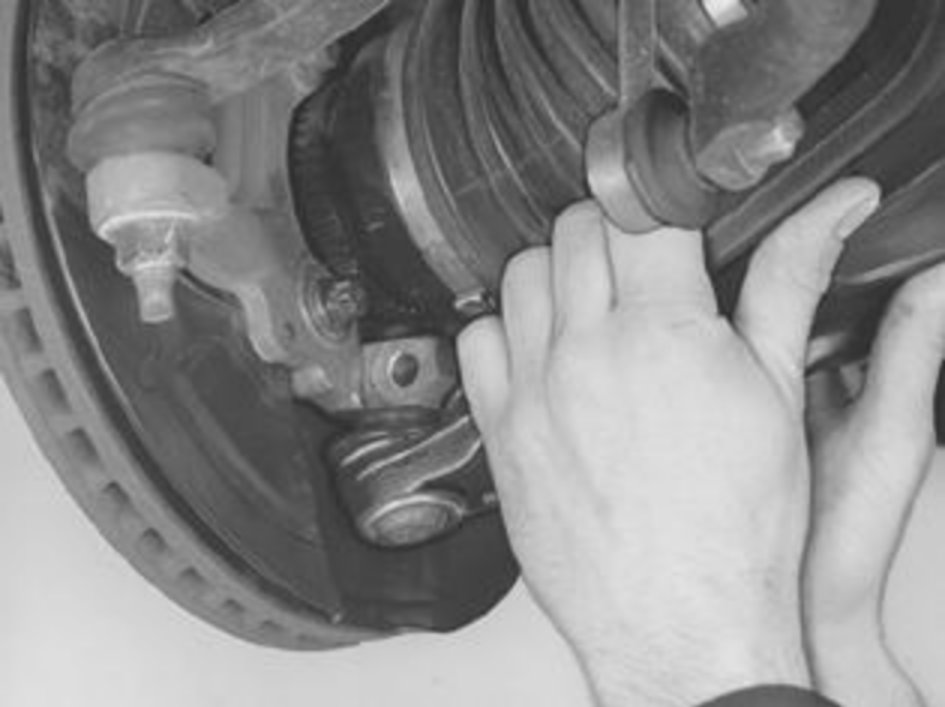

- Move the ball joint up and down by hand (or a jimmy bar can be used) until the ball joint detaches from the wheel spindle.
- Withdraw the drive shaft from the hub.
- Twist the spring strut to one side. Hang the drive shaft so that the control arm is not in contact with the drive shafts.

Removing the engine mountings







- Remove the two screws for the engine pad on the right side.

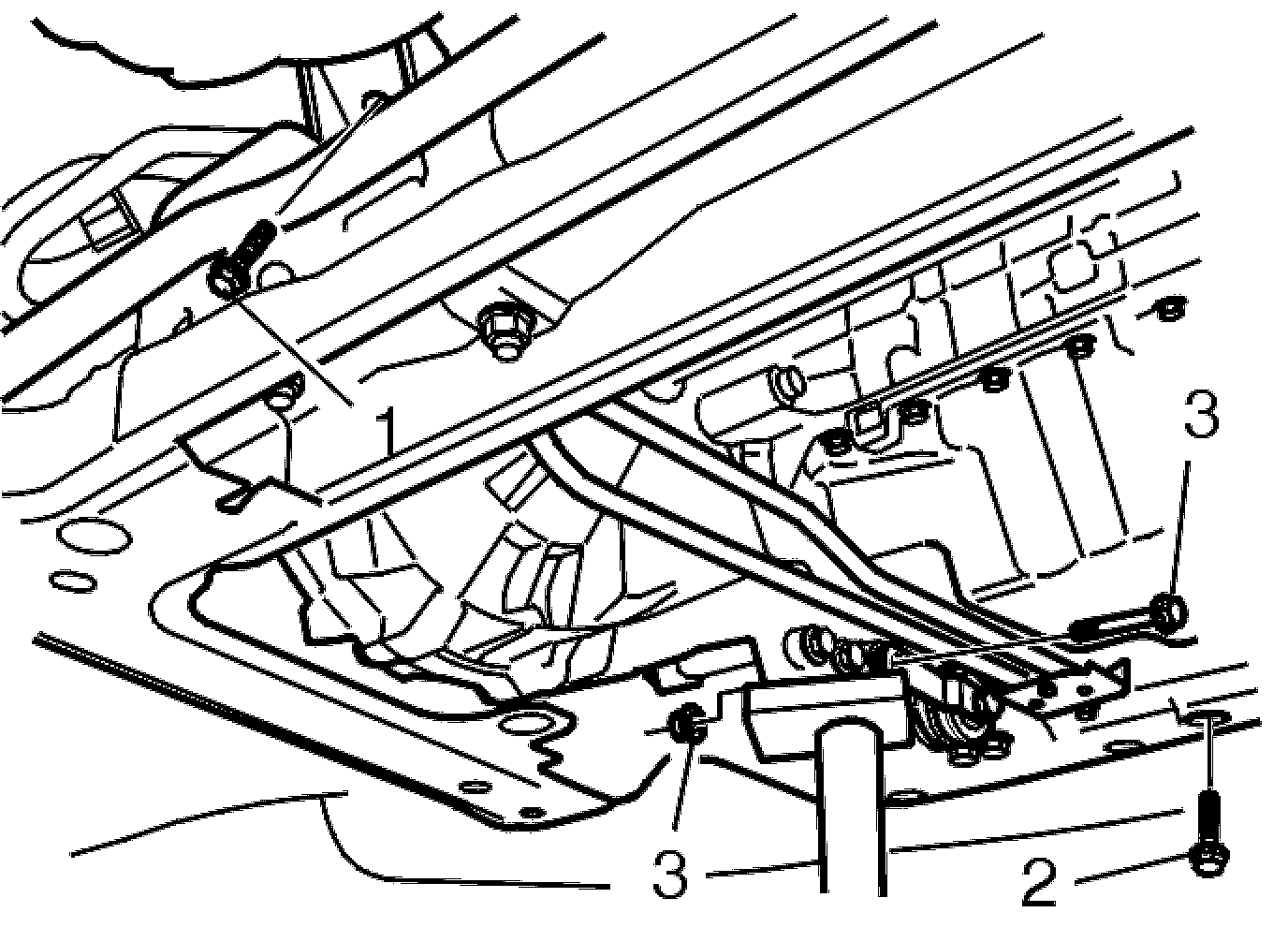

Remove







- the screw (1) for the rear engine pad
- the screw (3) for the front engine pad
- the screw and nut (2) for the torque rod.

Removing the control arm on the left-hand side
Position mobile jack 998 5972 on the torque rod mounting in the transmission.

NOTE: Use a wooden block as a shim.

Remove:
- the four screws for the control arm
- the control arm.

Removing the control arm on the right-hand side







Position mobile jack 998 5972 against the oil trough.

NOTE: Use a wooden block as a shim.

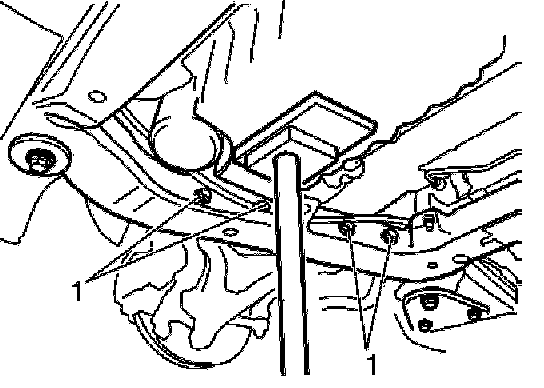

Lift the engine to access the control arm screws.

Remove:
- the four screws (1) for the control arm
- the control arm.

Installing the control arm on the left-hand side

NOTE: Ensure that there is no exhaust leakage.

- Install the control arm on the sub-frame. Use new screws. Tighten to 65 Nm. Angle-tighten 90 degree. Use bevel protractor 951 2050.
- Lower and remove the mobile jack.

Installing the control arm on the right-hand side
- Install the control arm on the sub-frame. Use new screws. Tighten to 65 Nm. Angle-tighten 90 degree. Use bevel protractor 951 2050.
- Lower and remove the mobile jack.

Installing the engine mountings

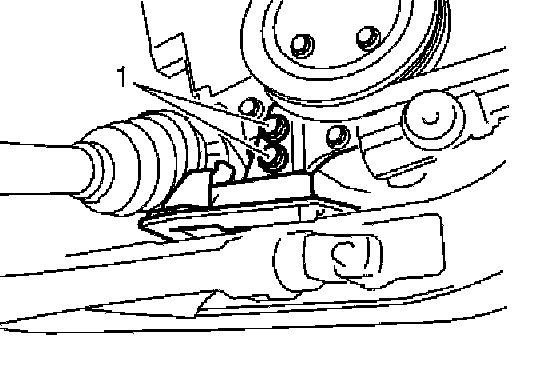

- Install the two screws (1) for the engine pad on the right side. Tighten to 35 Nm. Angle-tighten 90 degree.
- Use bevel protractor 951 2050.

NOTE: Use new screws.







- Install the screws (1, 3). Tighten to 50 Nm.
- Install the screw and nut (2) for the torque rod.
- Tighten to 40 Nm. Angle-tighten 40 degree.
- Use bevel protractor 951 2050.

NOTE: Use a new screw and nut.

Installing the ball joint on the wheel spindle







- Check that the groove on the ball joint spindle lines up with the screw hole in the wheel spindle.

NOTE: Press the ball joint upwards so that the conical top is visible above the screwed joint on the wheel spindle.

- Use a new locknut in the wheel spindle screw.
- Tighten to 50 Nm.

Finishing
Install the wheel.
