Cable Terminals Kit, P/N 9814234

Cable Terminals Kit, P/N 9814234

Contents

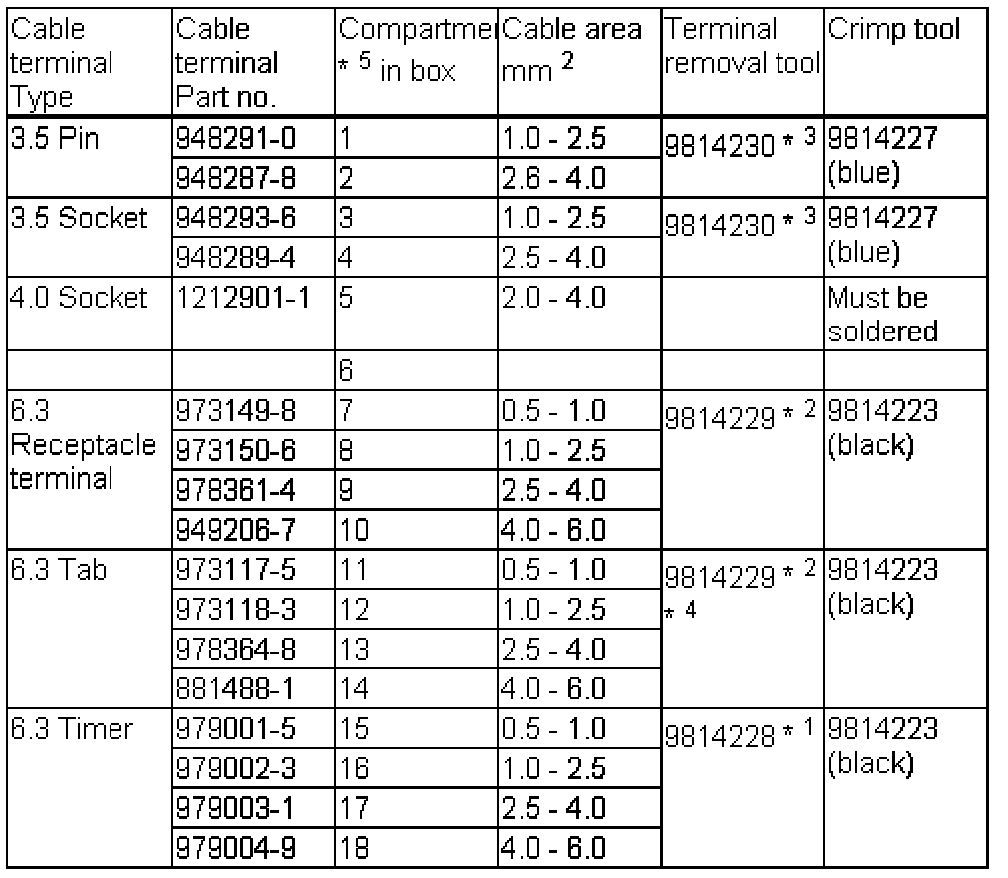

The table shows which spare parts are included in the kit, and the tool included for the different cable terminals.

Selecting terminal removal tool:

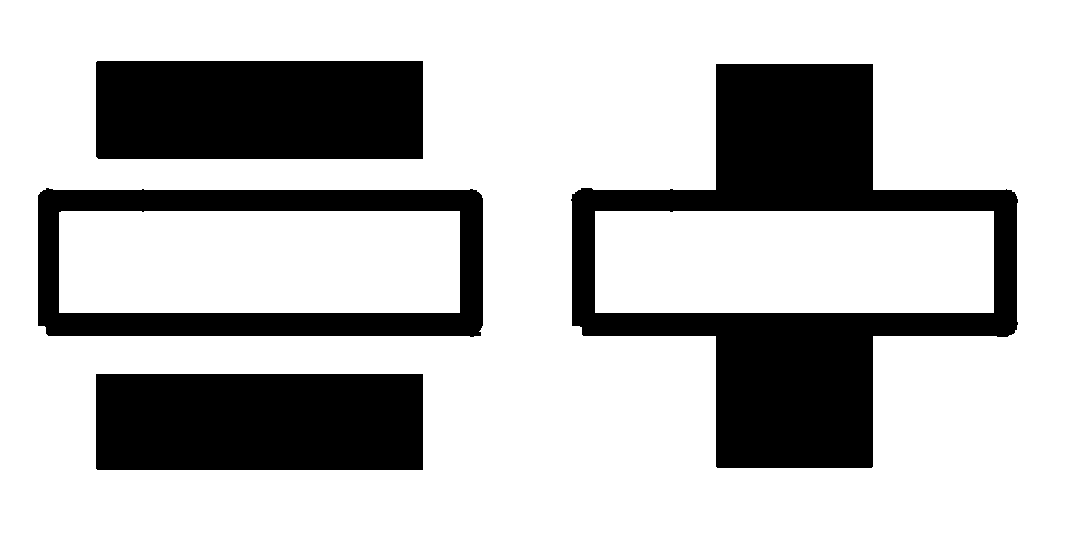

- 1 When the cavity opening has two extraction groove

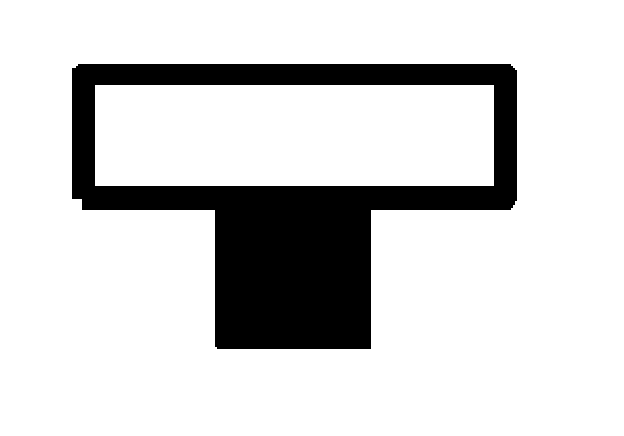

- 2 When the cavity opening has a extraction groove







- 3 When the cavity opening is round

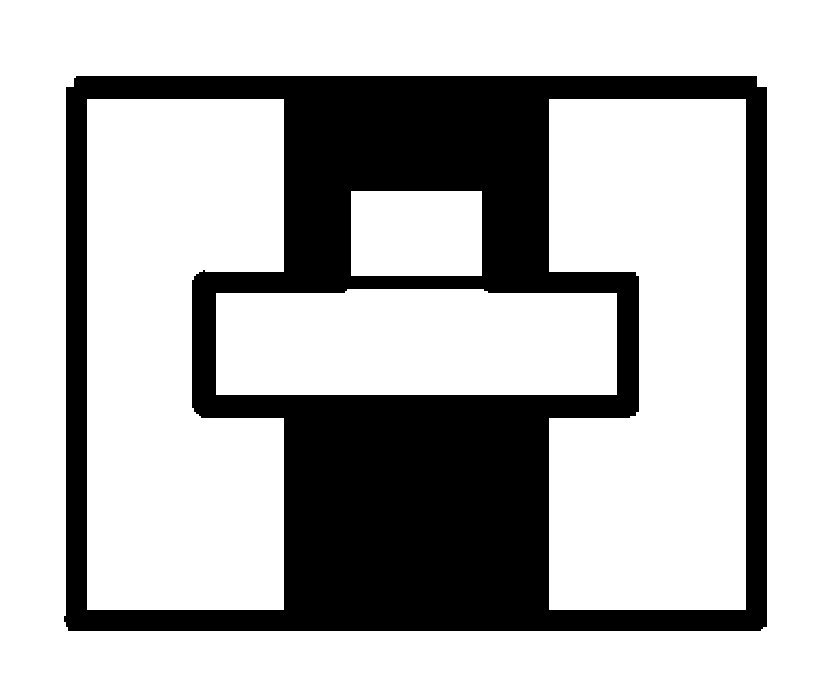

- 4 For tab terminals in receptacle housings with half-open contact side
