Fuel Tank Pressure Sensor

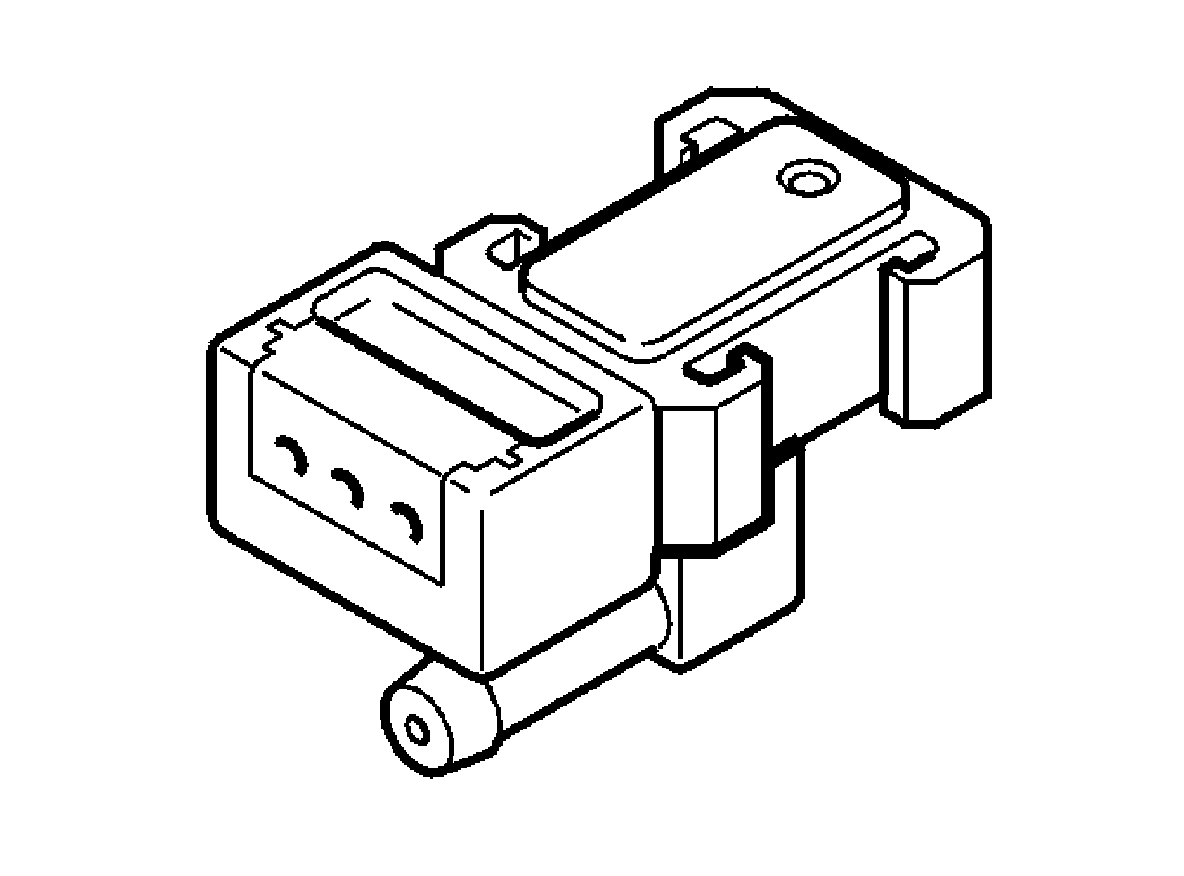

Fuel Tank Pressure Sensor







Piezo electric lineal pressure sensor.

P (kPa) V (Volt)
-2.0 1.70
-1.5 2.10
0 3.30
0.5 3.70
