C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Turbocharger
>>
Turbo Boost Sensor
Turbo Boost Sensor

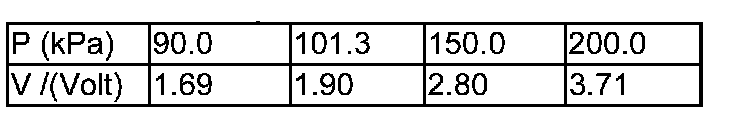

Boost pressure sensor
Measurement range 20.0 - 250 kPa.
