C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Brake Signal
Brake Signal

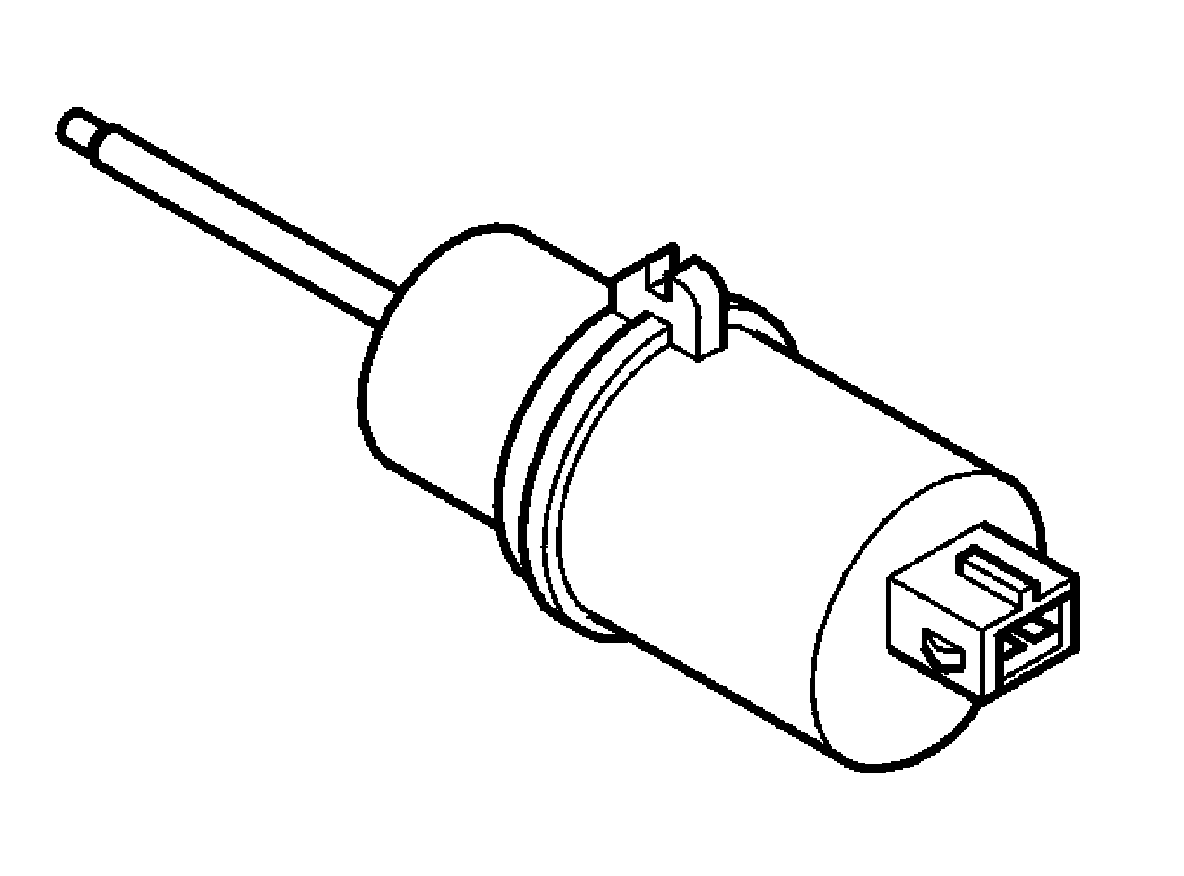

Brake Pedal Sensor
Self-adjusting.
Position (mm)
R (Ohms)
0
1300 - 2100
20
1000 - 1800
30
900 - 1700
50
600 - 1400
