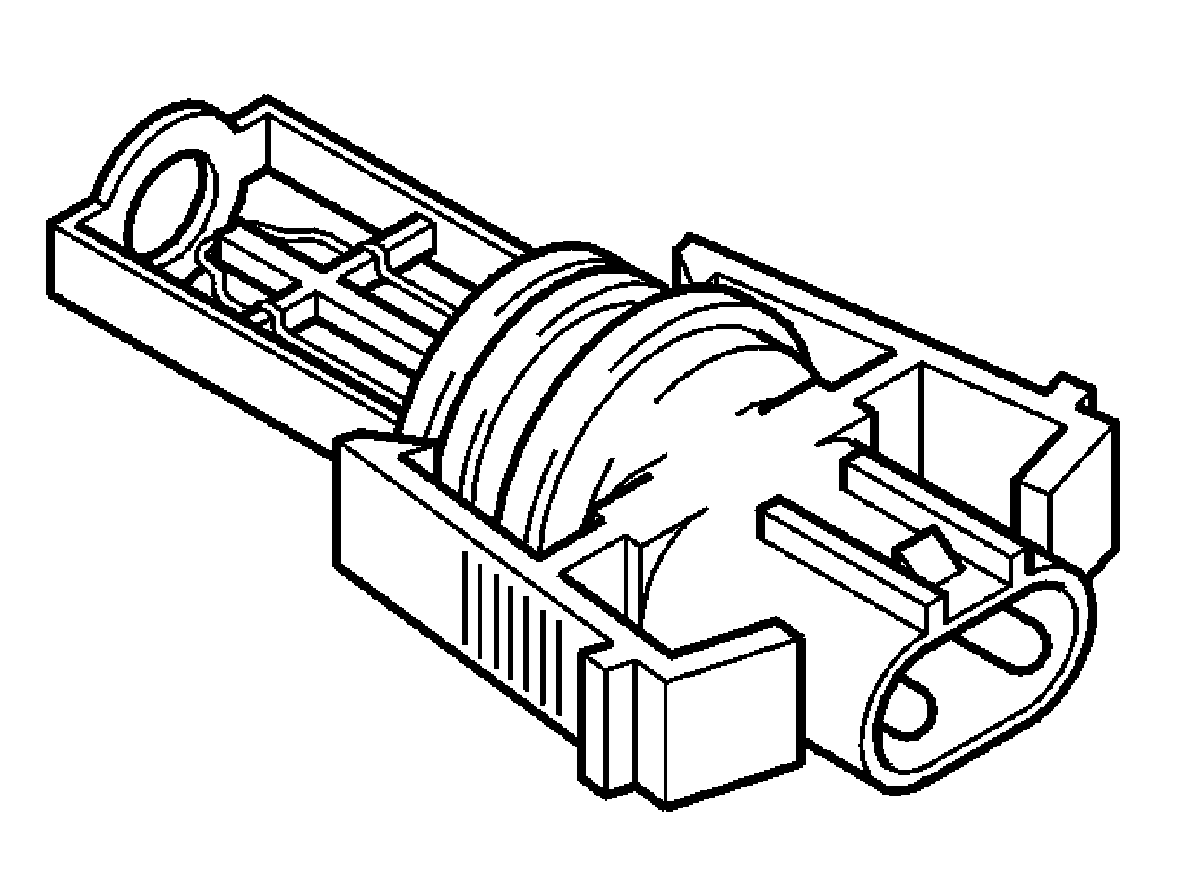

Intake Air Temperature (IAT) Sensor

Intake Air Temperature (IAT) Sensor







NTC resistance.

Temperature (degree C) R (Ohms) V (Volt)
0 15931 4.30
10 9672 3.94
20 6068 3.50
30 3923 3.00
40 2603 2.50
