Signal Specification, ABS Control Module

Signal specification, ABS control module

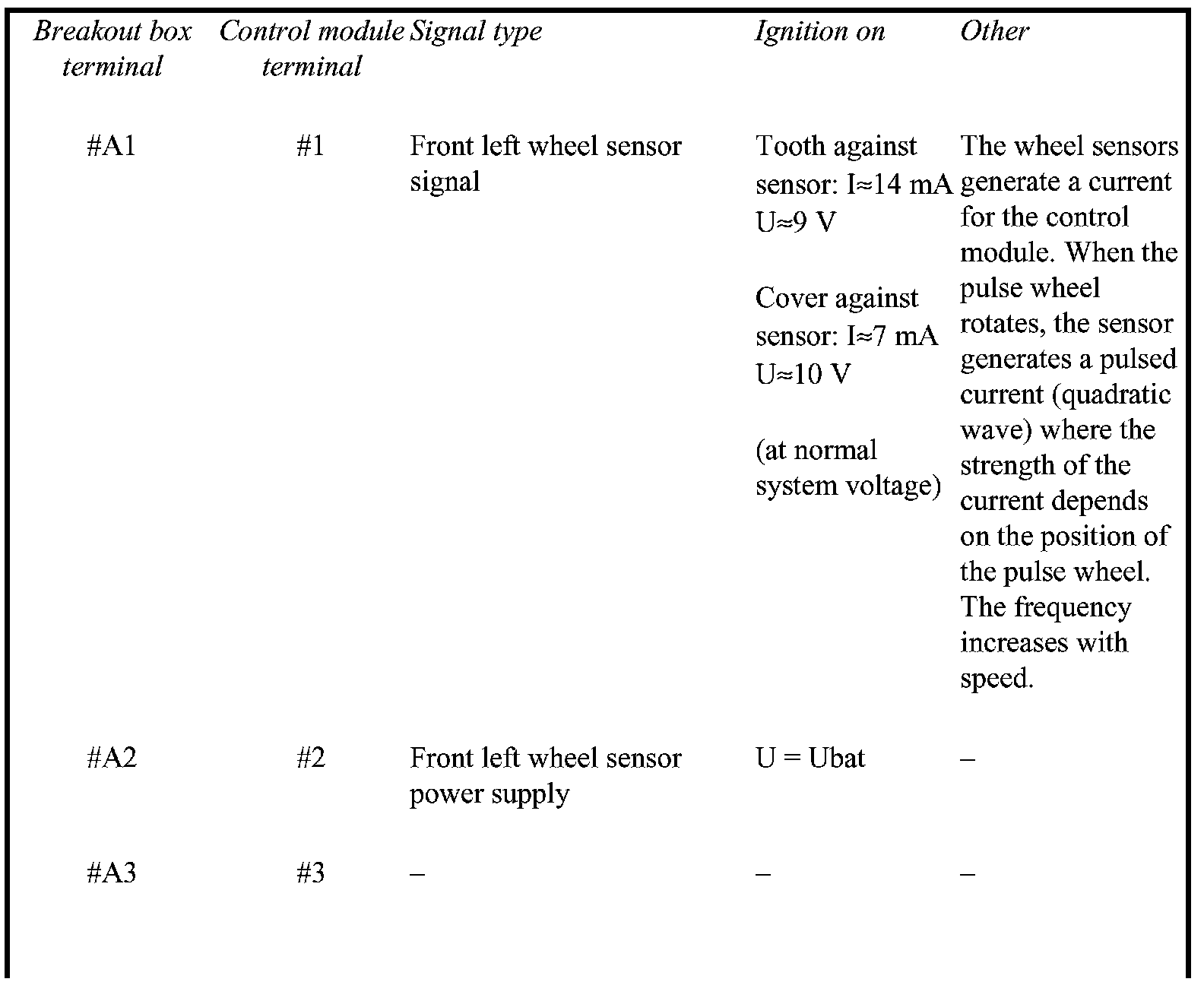

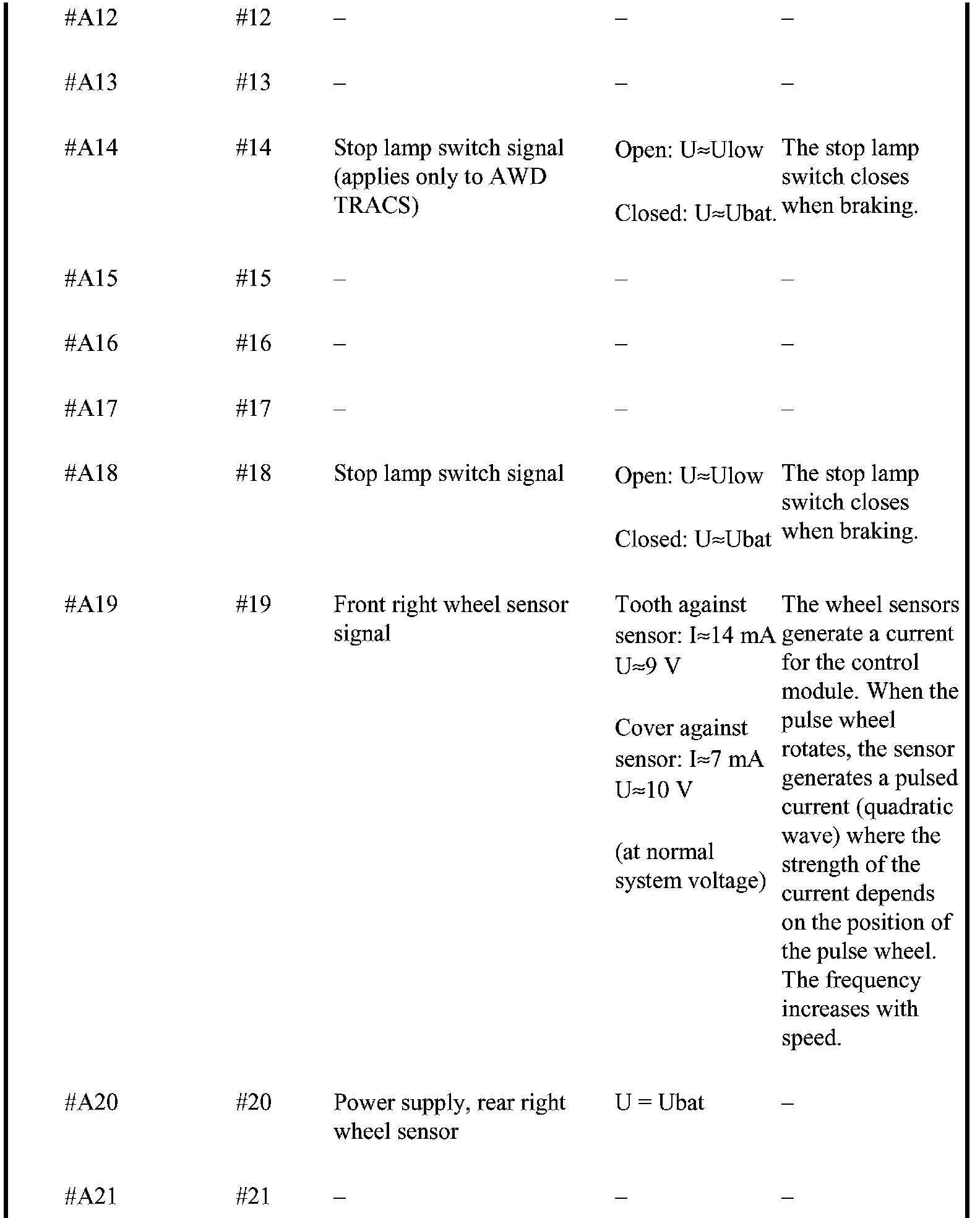

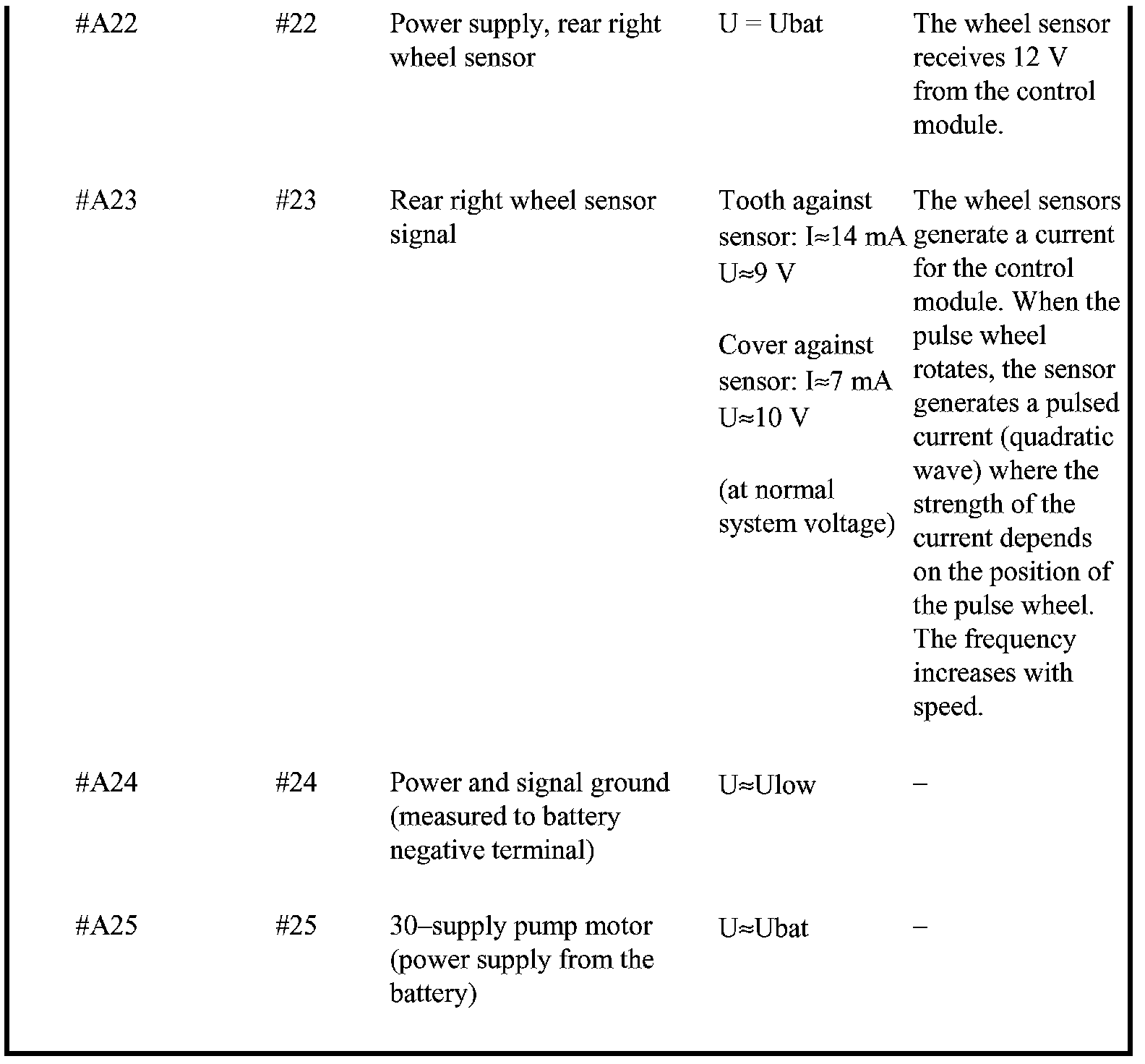

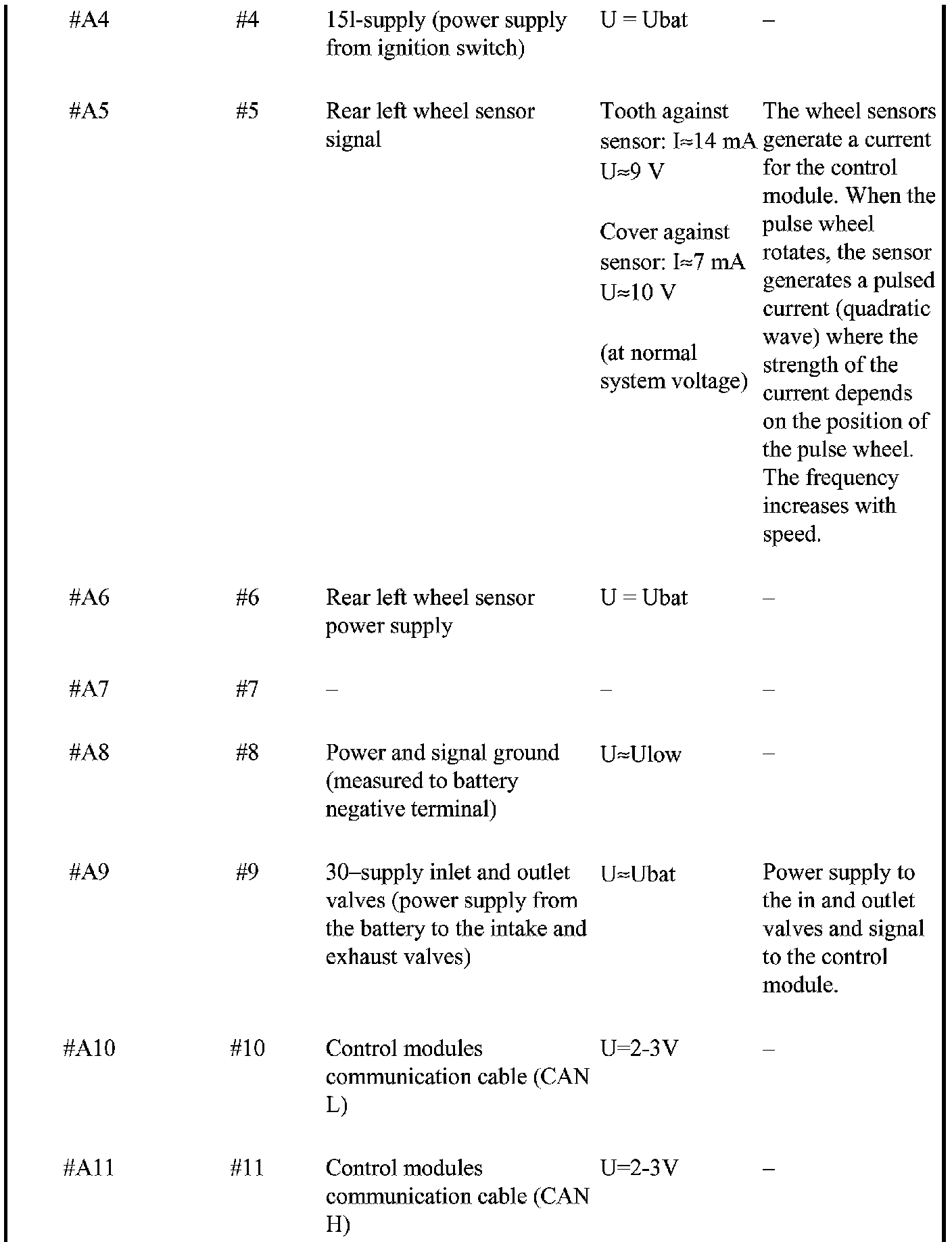

All values given are between the relevant terminal in column 1 and terminal #A8 or #A24 (ground), unless otherwise indicated in brackets.

NOTE: It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.

U = DC voltage in volts (V)
Ubat = battery voltage (V)
I = current in amperes (A)
Ulow = voltage approximately 0 V
