Procedures

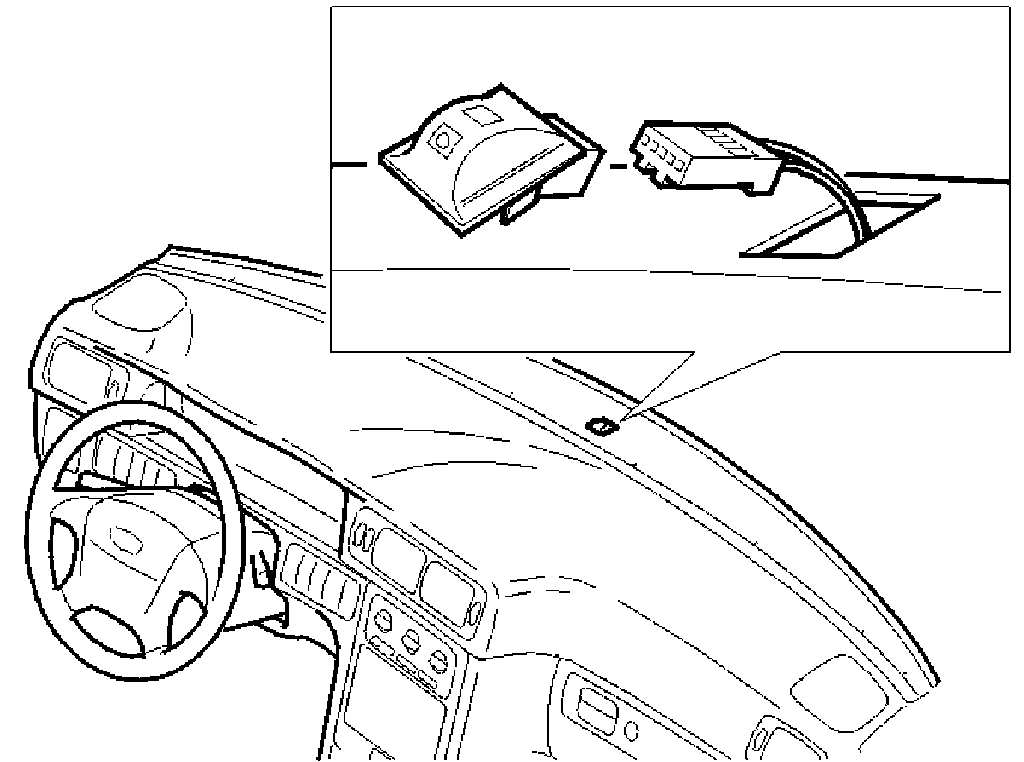

Removing Sun Sensor (ECC)







- Ignition off.
- Remove sun sensor by inserting a weatherstrip tool on the side of the sensor and carefully prying it up.
- Lift up sensor and disconnect connector.

Installing sun sensor (ECC)
- In reverse order.

Finishing:







- Check that the fault has been remedied by reading off sun intensity.

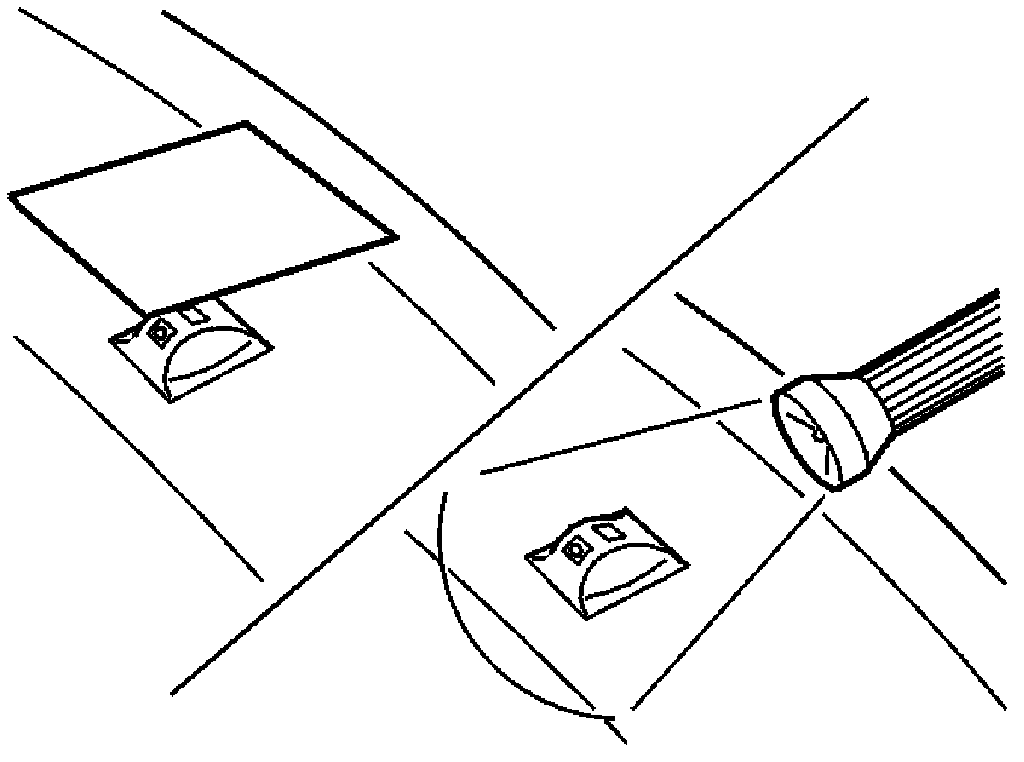

- Expose the sun sensor to light so that the value changes.
