Procedures

Replacing the front movement sensor

Removing:

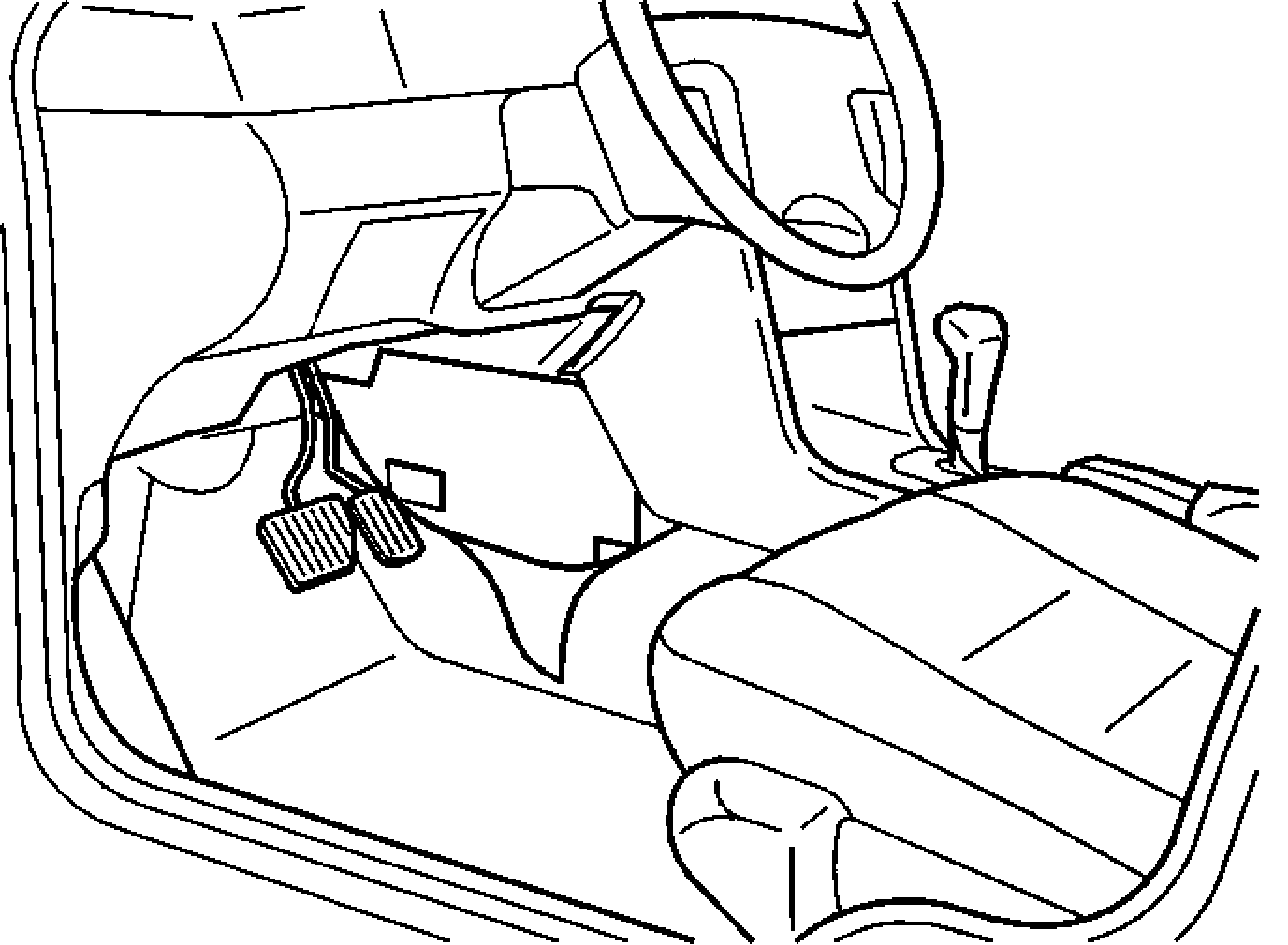

- Remove the soundproofing panel on the driver's side.

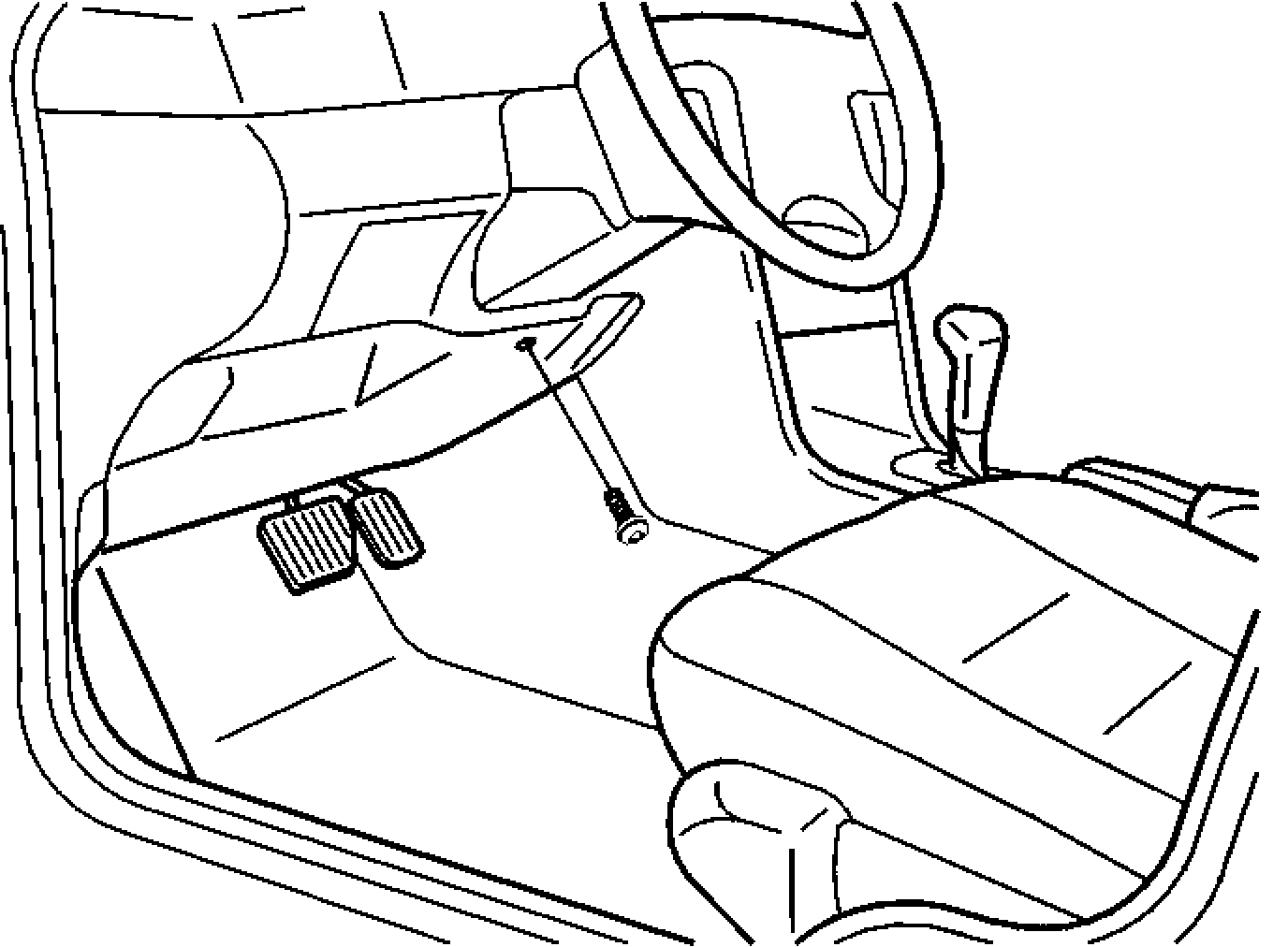

- Fold down the floor carpet. Remove the carpet bracket
- Remove the air duct for the rear seat.

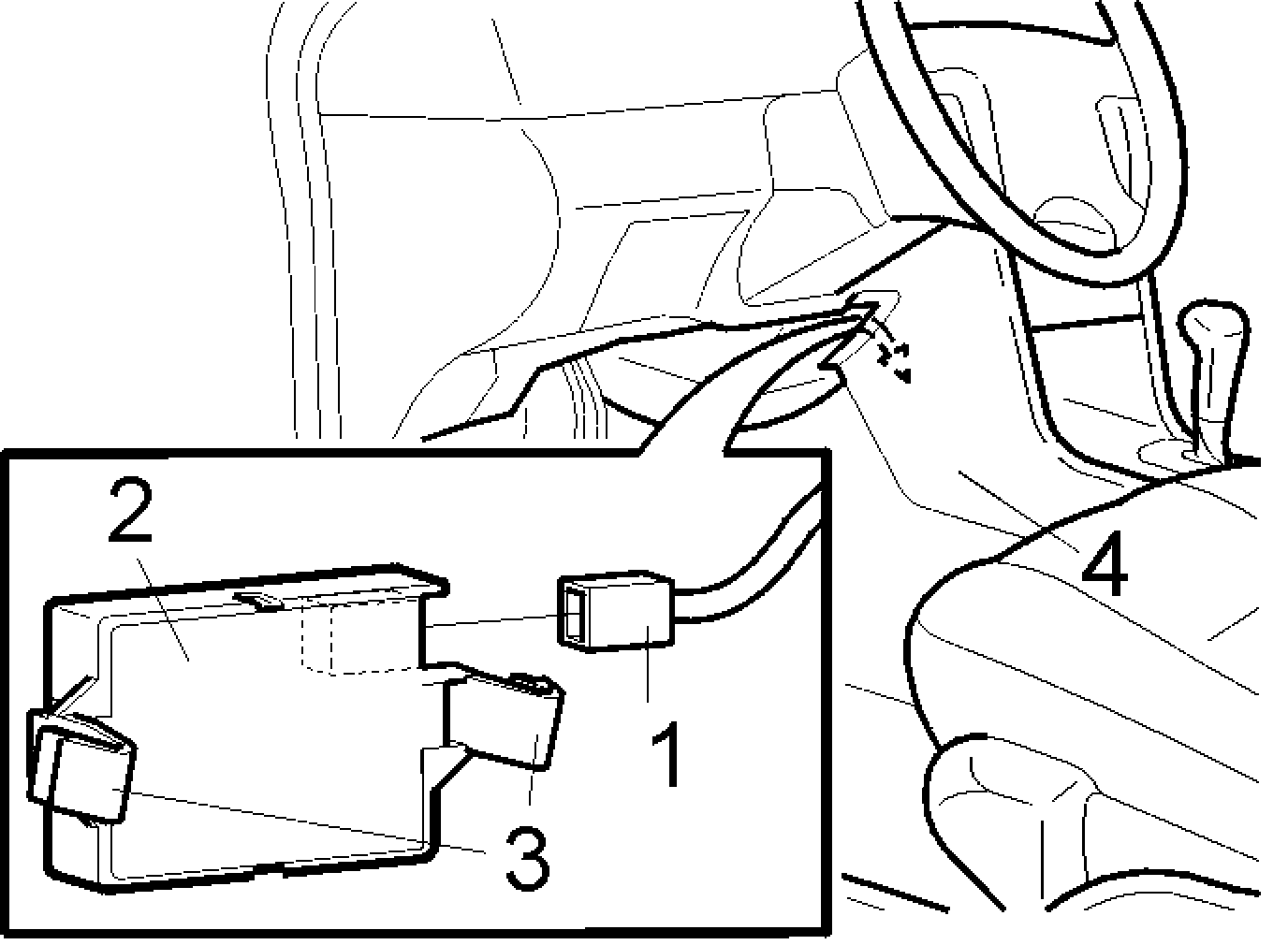

- Disconnect the 5 pin connector (1).

Installing
- In reverse order.
- Program the control module.

Replacing the rear movement sensor

Removing:







- The seat cushion, backrest cushion and head restraint.

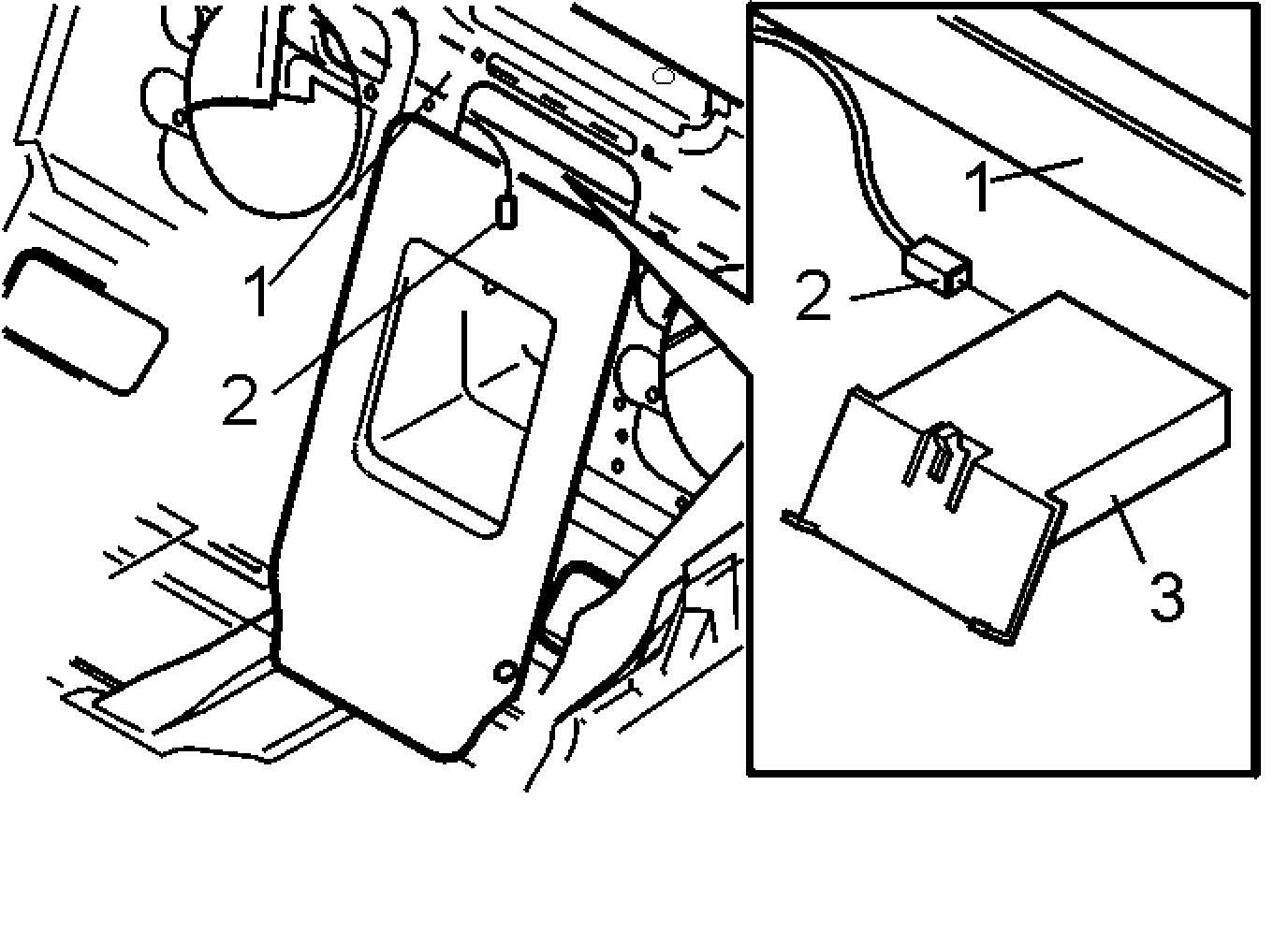

- Insert a hand through the hatch for long loads. Unclip the movement sensor (3) mounted under the member (1)
- Disconnect the connector (2).

Installing:
- In reverse order.

NOTE: Insert the movement sensor into the mounting under the member. Slide it until a click is heard.

- Program the control module.
