Air Bag Systems: Service Precautions

SRS safety equipment

WARNING: The car has pyrotechnical airbags and seat belt tensioners. The components in the SRS system must be treated very carefully during repair.

This is to help prevent:
1. Personal injury when carrying out repairs
2. Damage to or malfunction of the SRS system.

WARNING: The SRS system must always be worked on by a qualified workshop.

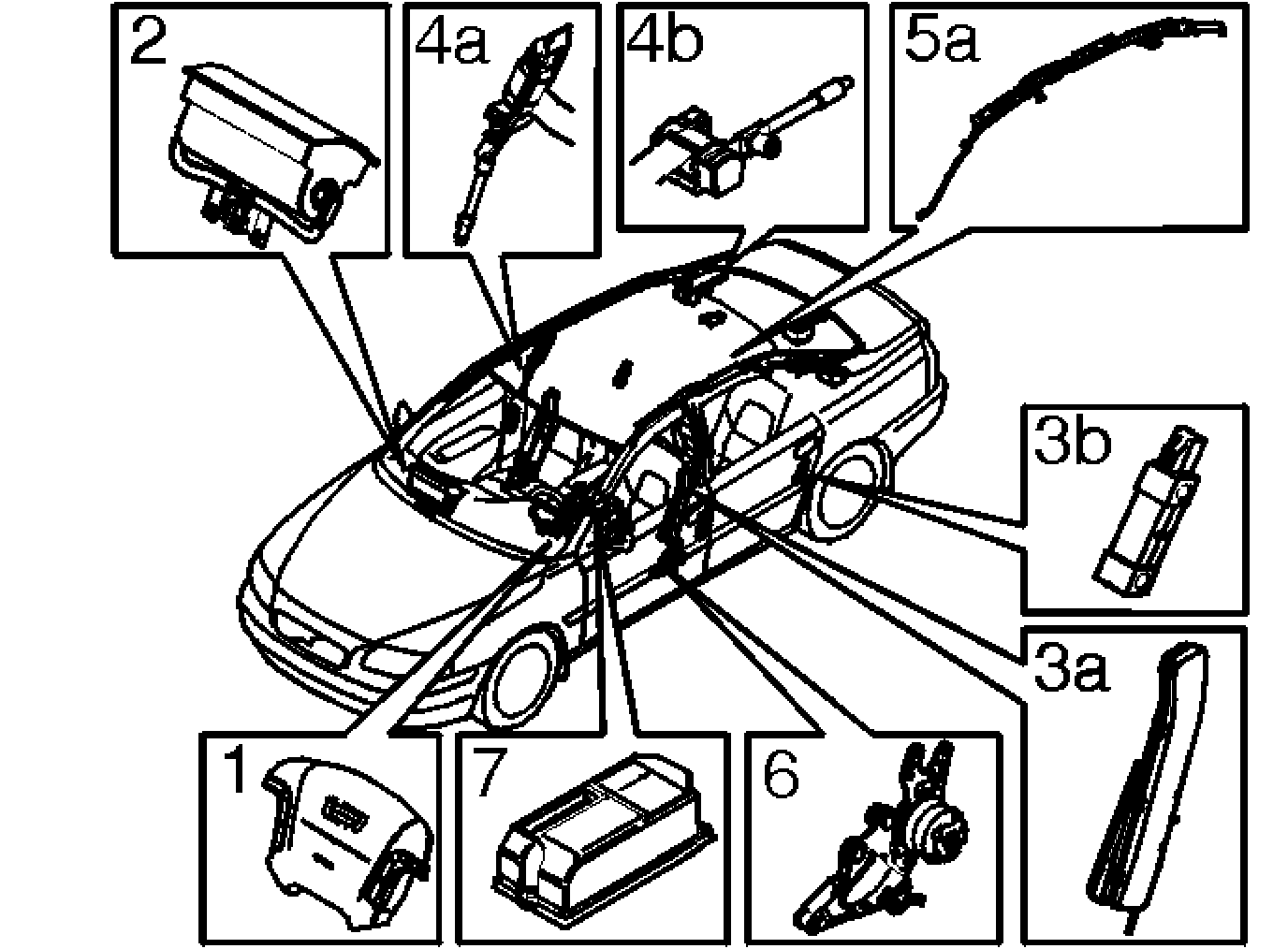

Location of components







1. Steering wheel module
2. Passenger airbag module
3a, c. SIPS module (Side Impact Protection System) and Sensors in B- and C-posts
4d. Seat belt with seat belt tensioner, front seat
4e. Seat belt with seat belt tensioner, Rear seat
6. WHIPS (Whiplash Protection System)
7. SRS control module
8a, b. ROPS module (Roll Over Protection System)
