Procedures

Resetting SRS Contact Reel

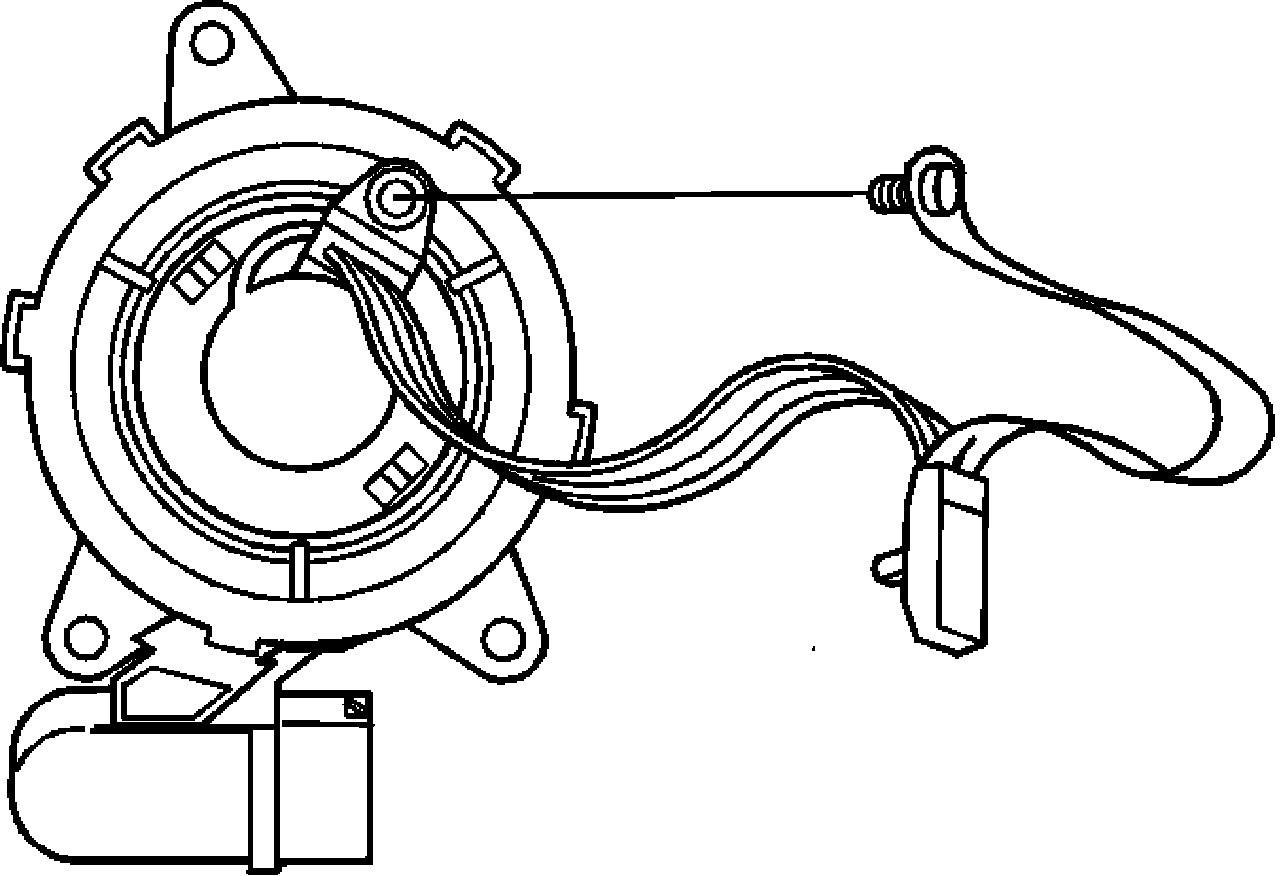

Remove screw







1 Torx 20 screw.

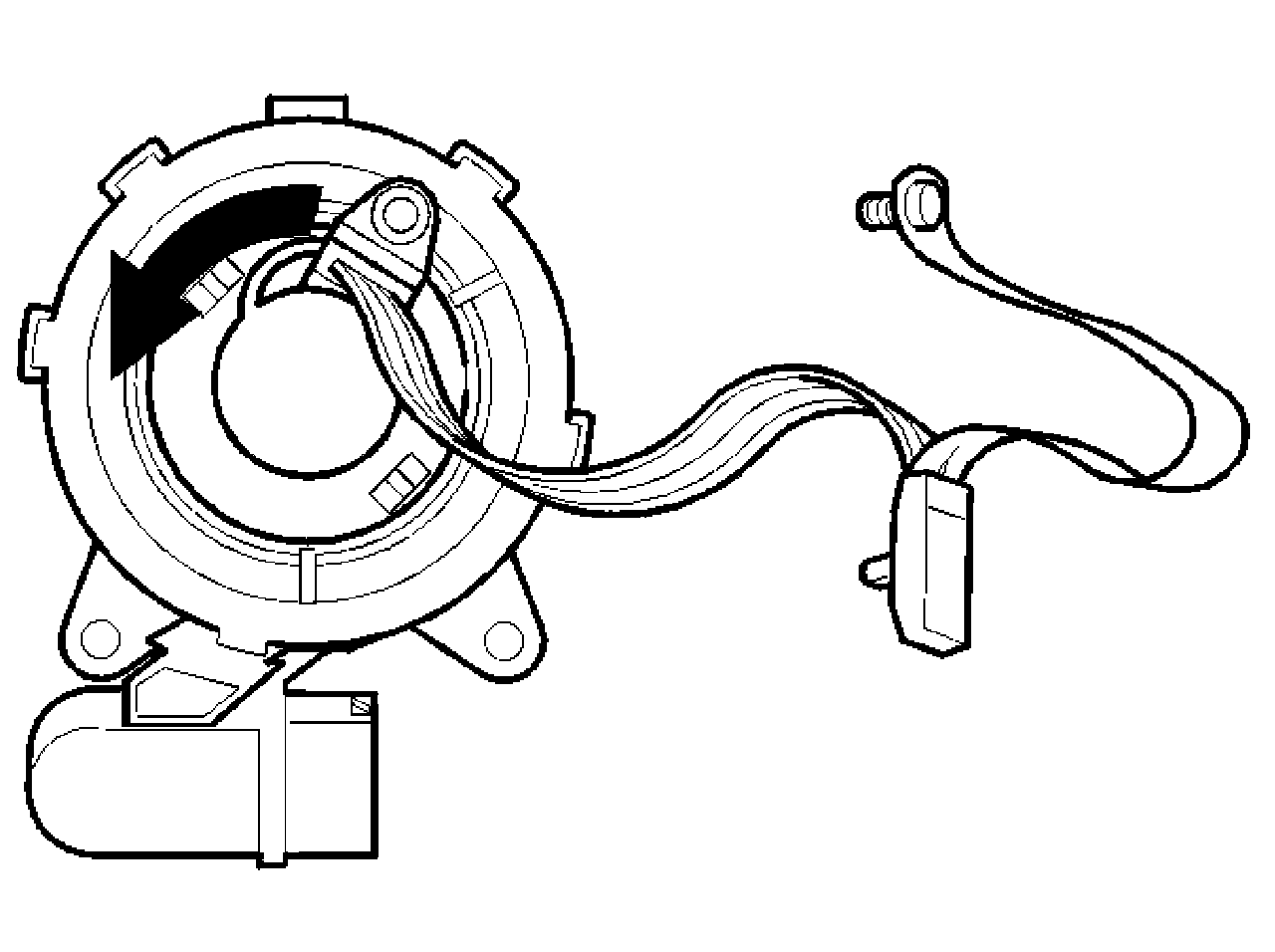

Turn to the left







- Turn the contact reel as far as possible to the left.

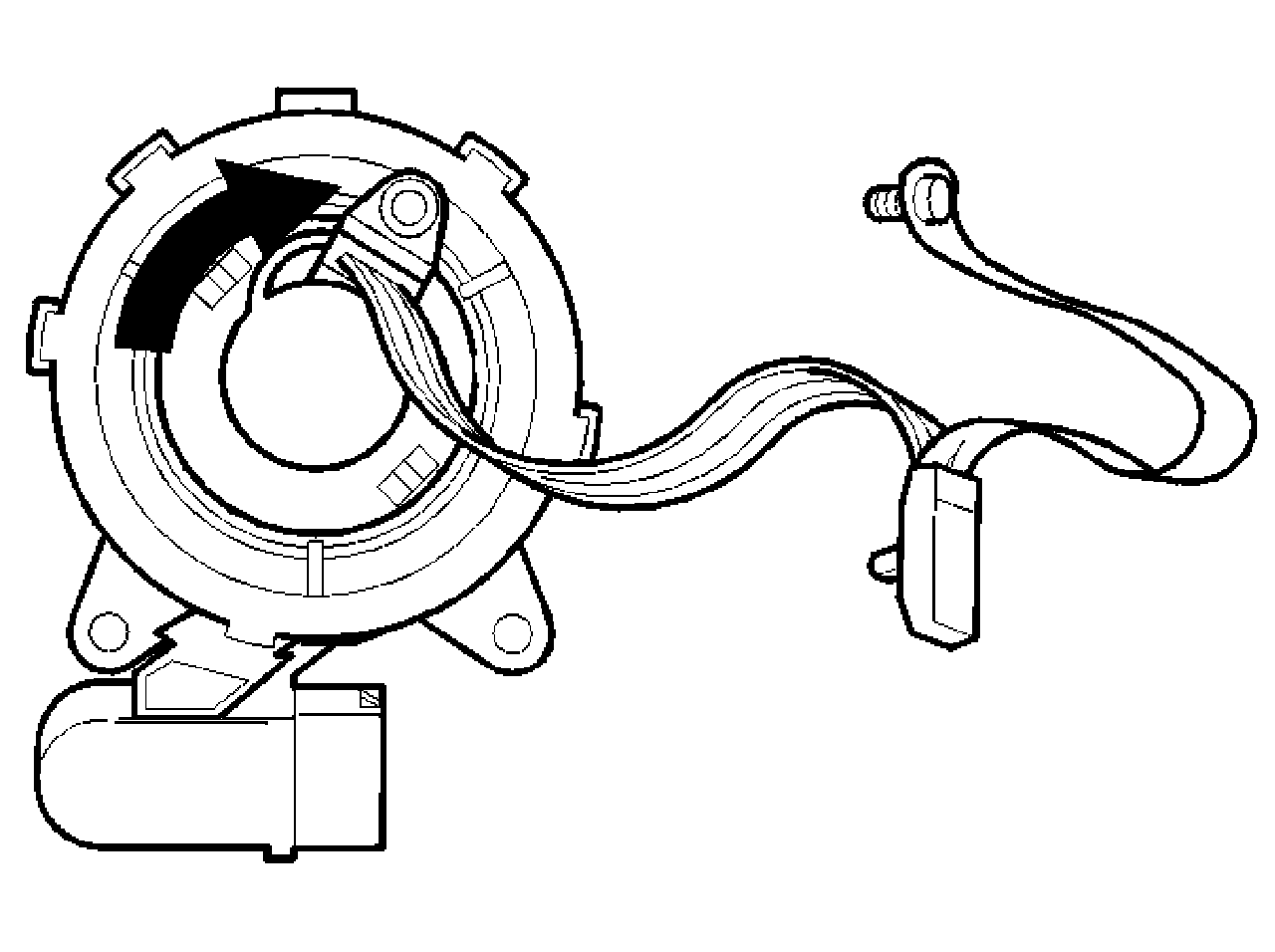

Turn to the right







- Turn contact reel to the right approximately 2 + 3/4 turns to the screw hole.
- The screw hole should be over the lock position - 1 o'clock as illustrated.

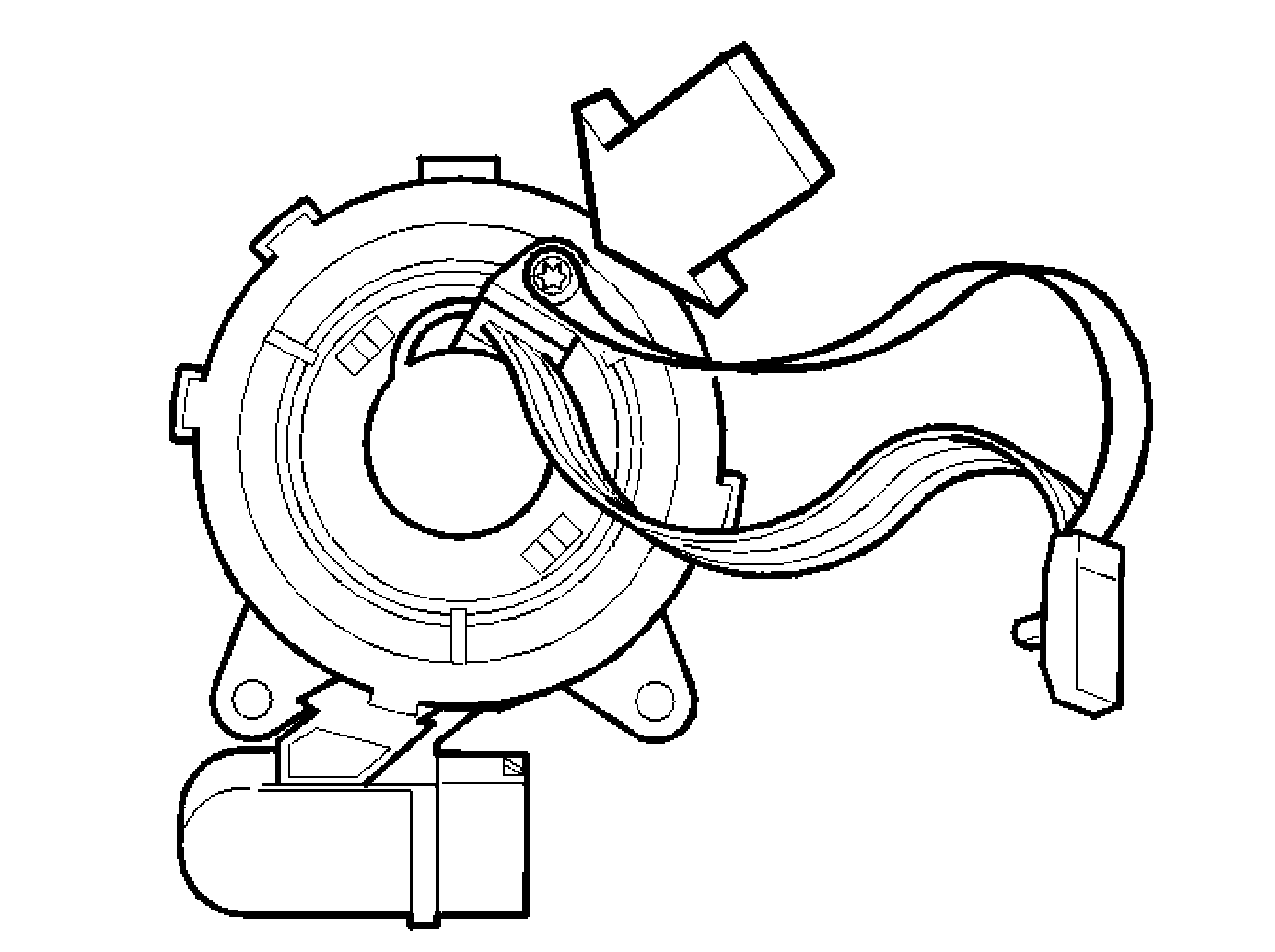

Install screw







- Install screw in contact reel lock position.
- The contact reel is now reset and locked (secured).
