Replacing the Turbocharger (TC) Control Valve

Replacing the turbocharger (TC) control valve

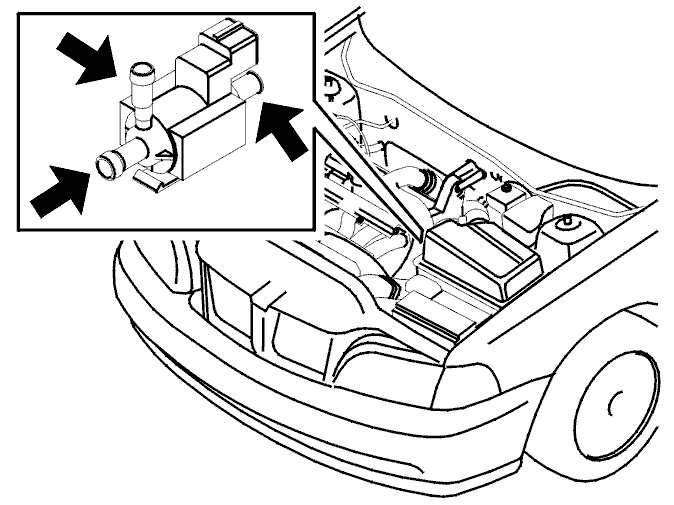

Removing the turbocharger (TC) control valve




Lift the valve away from the air cleaner (ACL) cover.
Remove the connector from the valve.
Mark up and pull off the hoses.

Installing the turbocharger (TC) control valve





Install
- the hoses according to the marking on the control valve
- the connector on the valve
- the valve on the air cleaner (ACL) cover.
