Engine Temperature Sensor, Replacing

ENGINE TEMPERATURE SENSOR

Removal




Engine temperature sensor, 5-cylinder
Jack up the car.
Remove protection cover from under engine.
Drain the coolant.
Lower the car.

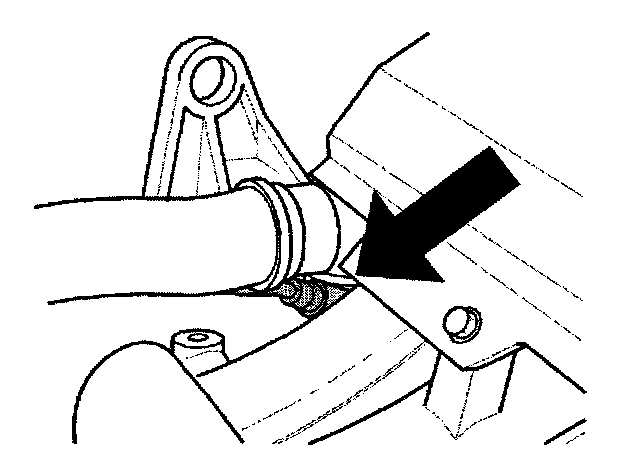

Release coolant hose from thermostat housing using pliers.
Remove thermostat housing.
Remove sensor.




Engine temperature sensor, 6-cylinder
Jack up the car.
Remove protection cover from under engine.
Drain the coolant.
Lower the car.
Loosen oil reservoir for servo pump.
Remove coolant reservoir and put it to one side.

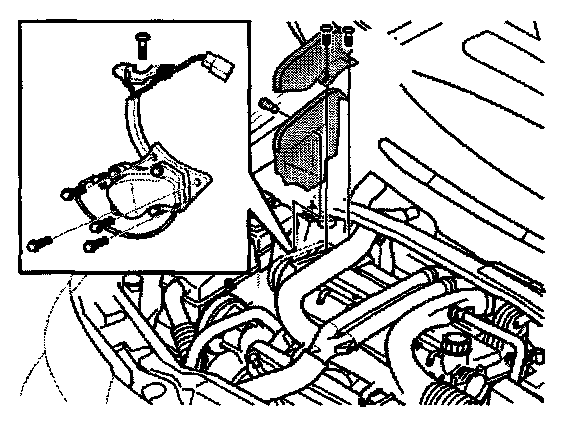

Remove screws and outer/upper timing-gear casing.
Remove screws and wire channel.
Disconnect connector.
Remove 4 screws and thermostat housing.
Remove sensor and wires.


Installation

Engine temperature sensor, 6-cylinder
Install thermostat housing sensor.
Position wires in slot on thermostat housing.

Note! The white marks should be positioned in lower opening of slot, from underneath.

Position gasket on thermostat housing correctly and install thermostat housing using two of the screws.
Position thermostat housing correctly and tighten the four screws.
Position wire channel correctly and position wire in channel.
Tighten screw on wire channel.
Connect the connector.
Install outer/upper timing-gear casing.
Install coolant reservoir.
Install oil reservoir for servo pump.

Follow-on work, 6-cylinder
Fill up coolant.
Warm the engine until the thermostat opens.
Switch engine off and check the level. Re-fill if necessary.
Check for leaks.
Check in VIDA vehicle communication (read-out of parameter values), for current engine system, that the engine temperature shown appears correct.

Engine temperature sensor, 5-cylinder
Install in reverse order.

Follow-on work, 5-cylinder
Fill up coolant.
Warm the engine until the thermostat opens.
Switch engine off and check the level. Re-fill if necessary.
Check for leaks.
Check in VIDA vehicle communication (read-out of parameter values), for current engine system, that the engine temperature shown appears correct.
