EVAP Canister Shut-Off Valve, Replacing

REPLACING EVAP CANISTER SHUT-OFF VALVE




Removing fender liner
Remove left front wheel.

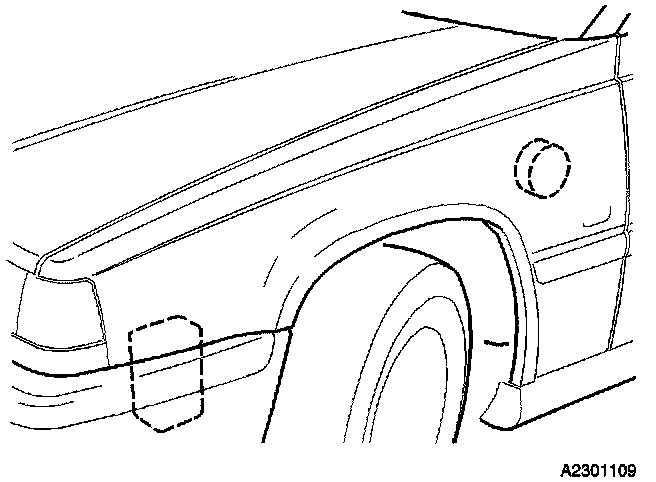

Remove fender liner fixed with 3 plastic nuts and 9 rivets. Use a drill to remove the rivets.

Removing EVAP canister shut-off valve

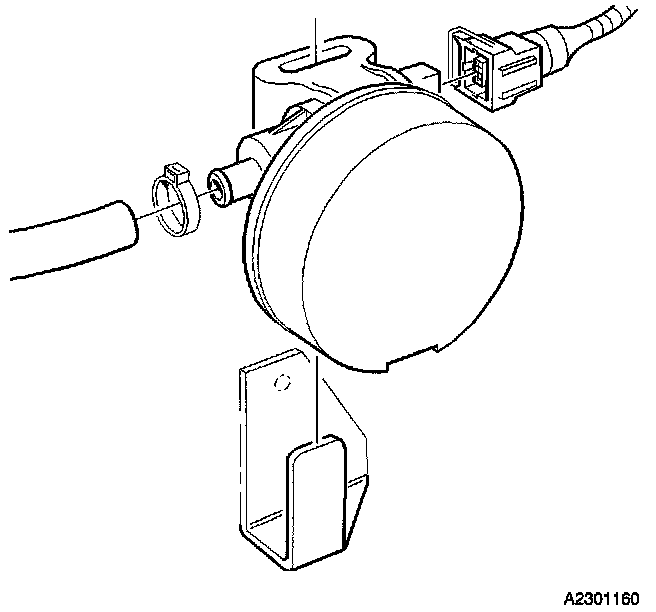

Disconnect EVAP canister shut-off valve connector.
Remove valve from its mounting on the bodywork.
Remove the hose from the valve.




Installing EVAP canister shut-off valve
Connect hose to EVAP canister shut-off valve. Use a new clamp.

Note! It is important to use the correct clamp to avoid fuel leakage at the joint.

Install valve on mounting in bodywork.
Connect valve connector.

Installing fender liner
Install fender liner, use new rivets.
Reinstall left front wheel.
