Replacing Heat Sink






Replacing heat sink

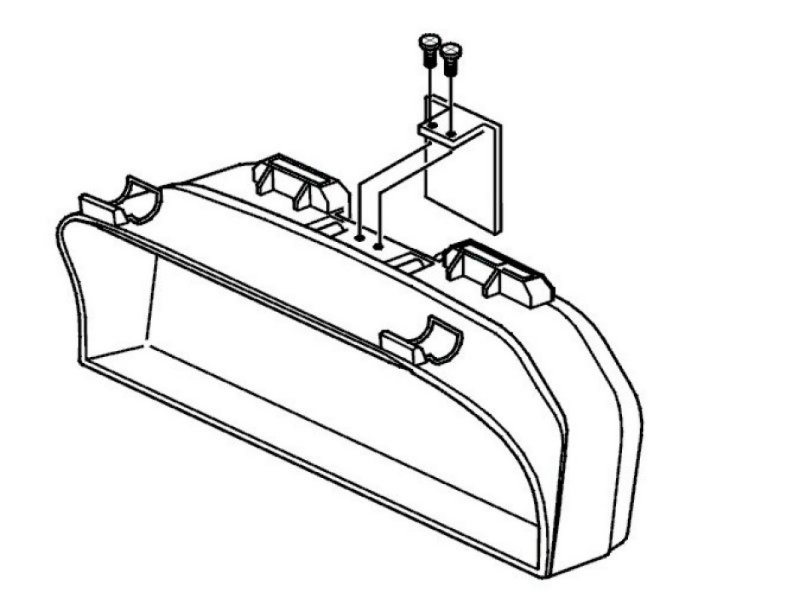

Removing heat sink





Remove:
- combined instrument panel from dashboard according to Replacing the combined instrument panel Replacing the Combined Instrument Panel.
- heat sink.

Installing heat sink
In reverse order.
