Replacing Instrument Housing

Replacing instrument housing

Removing





- Combined instrument panel from dashboard according to Removing the Combined Instrument Panel Removing the Combined Instrument Panel/Cluster
- Turn the combined instrument panel upside down with its reverse facing you.

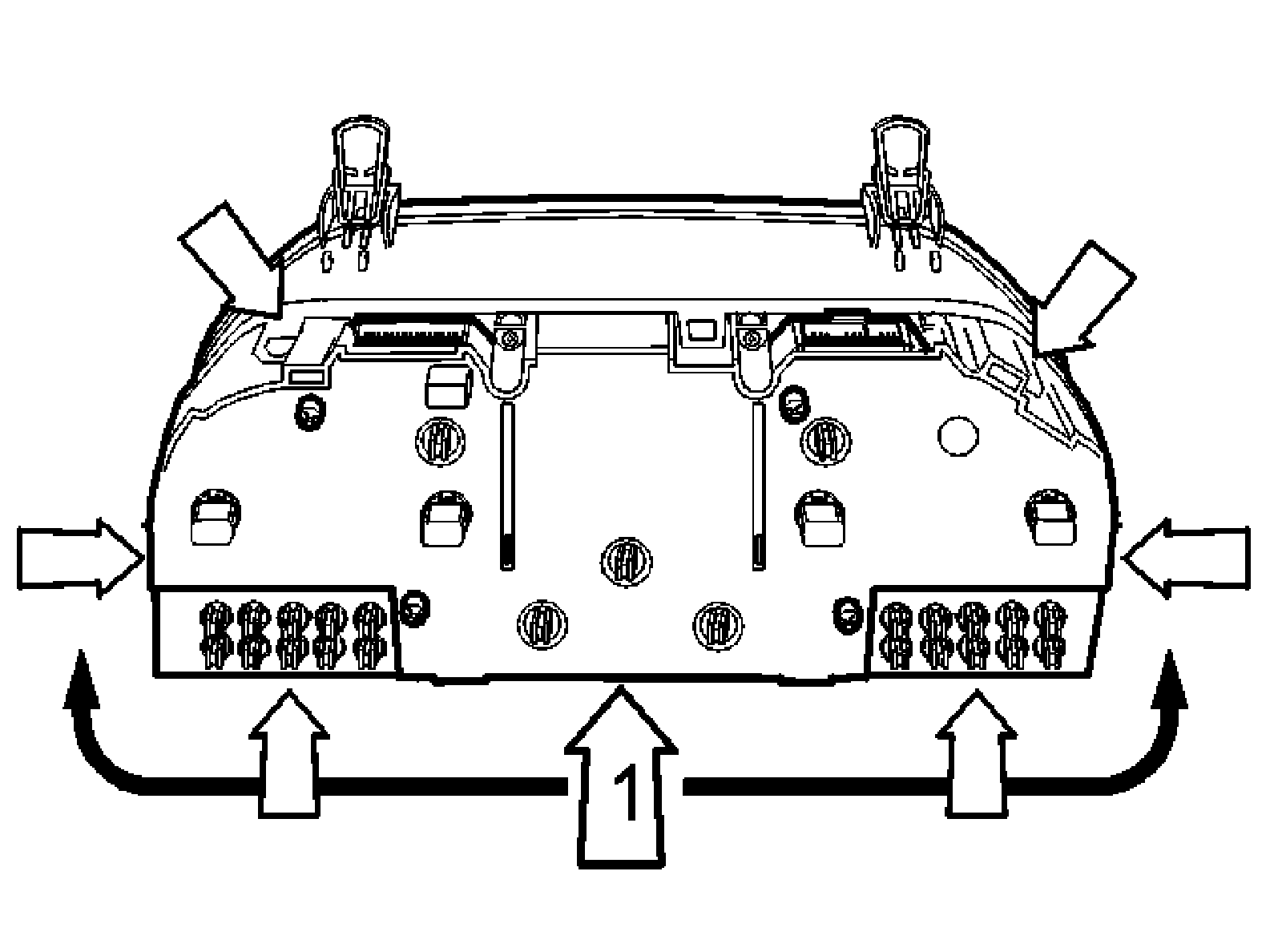

- Release the middle catch and pull out the instrument housing at the same time releasing the remaining catches in order.

Installing





- Place the combined instrument panel on a workbench with the instrument side facing up.

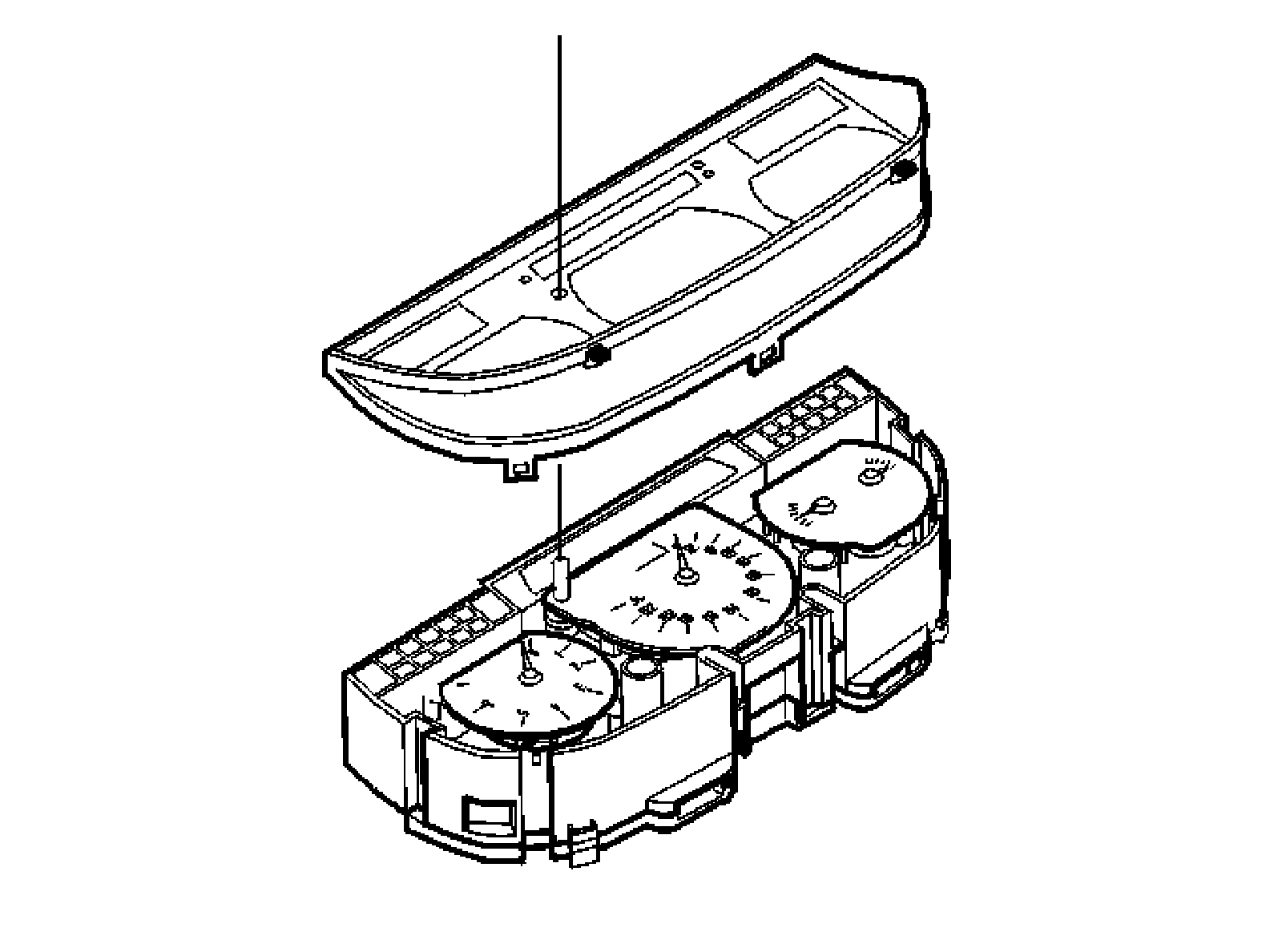

- Position the instrument housing on the combined instrument panel and press into place.
- combined instrument panel from dashboard in reverse order according to Removing the Combined Instrument Panel Removing the Combined Instrument Panel/Cluster
