Replacing Heat Sink

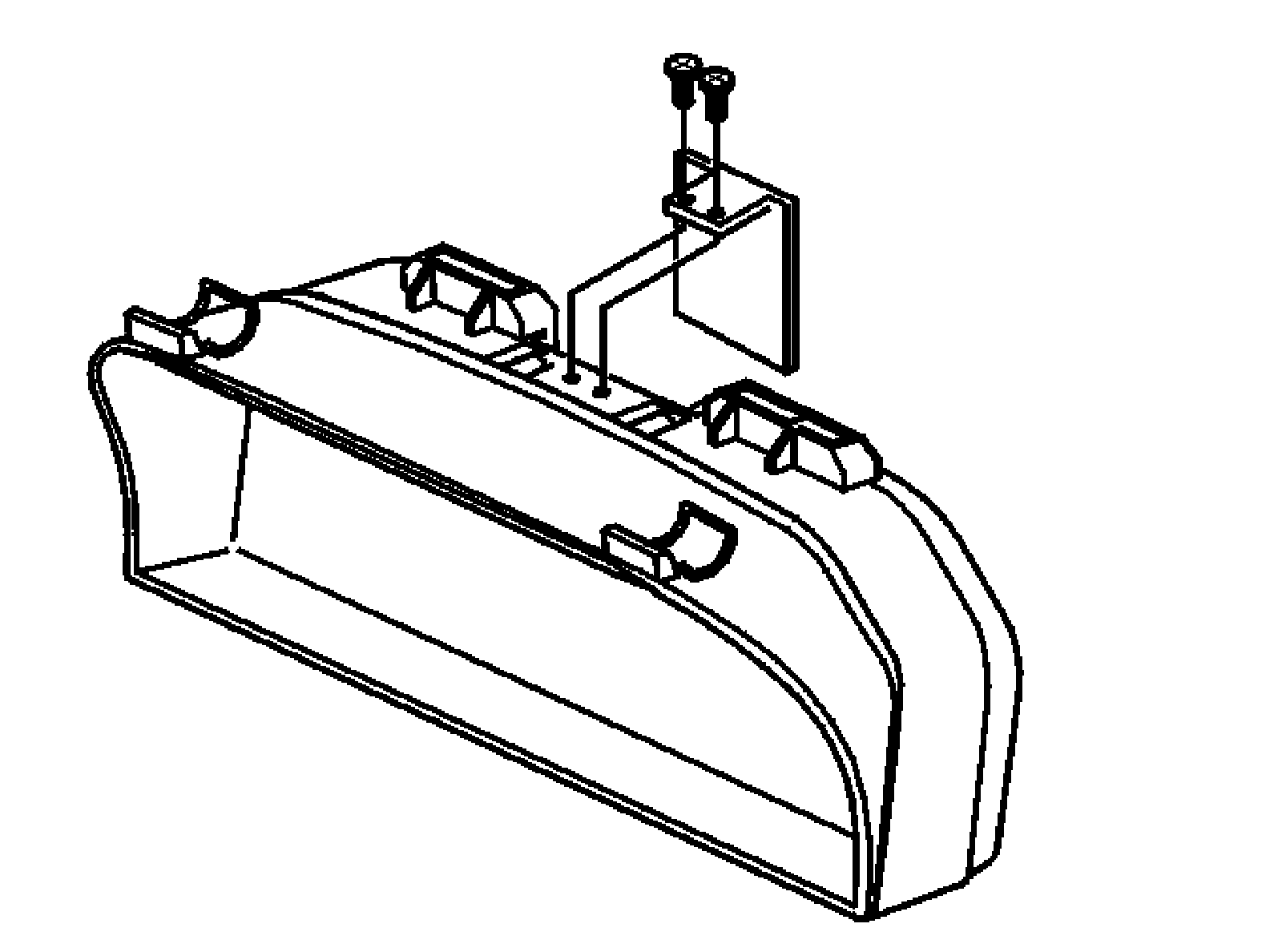

Removing heat sink







- combined instrument panel from dashboard.
- heat sink.

Installing heat sink
- In reverse order.
