Replacing Dashboard and Tunnel Compartment Switches

Replacing Dashboard And Tunnel Compartment Switches

Removing







- Ignition off.

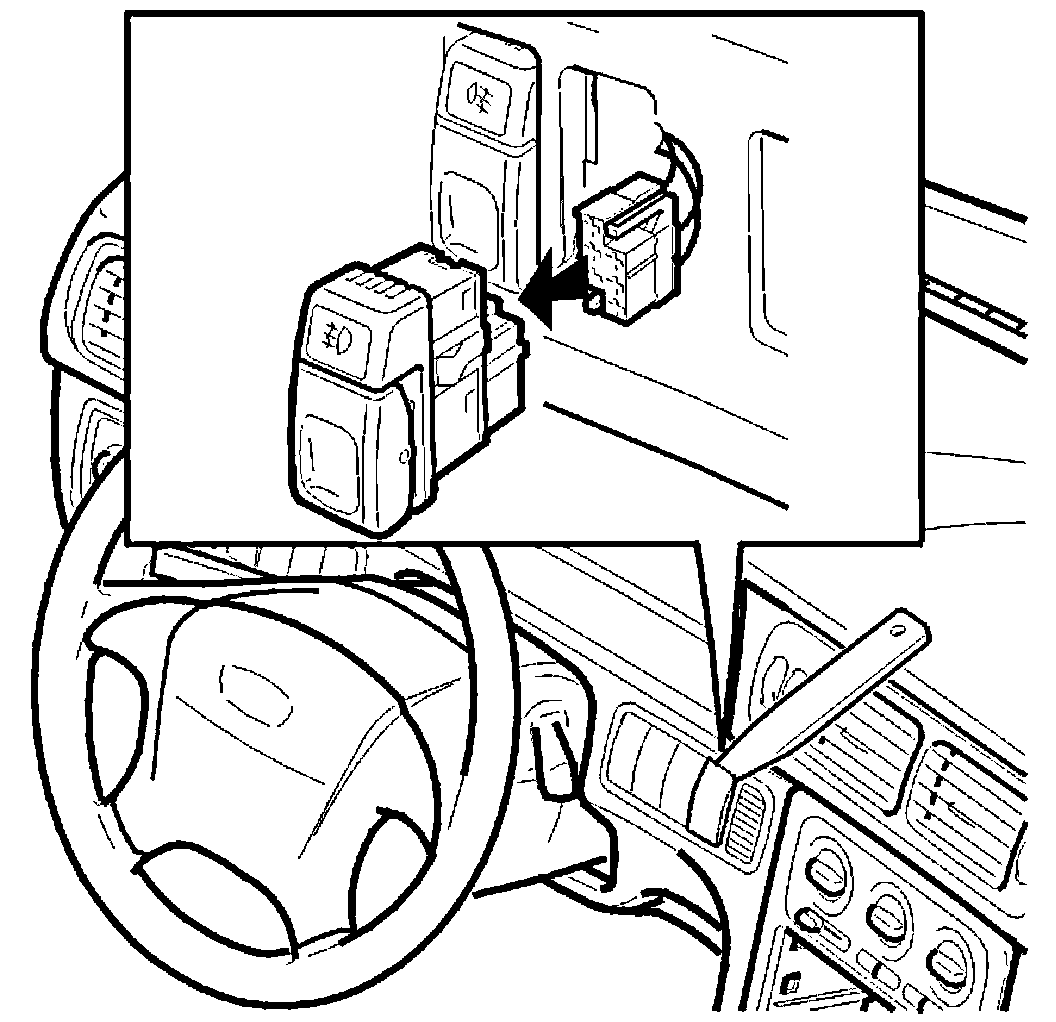

- Carefully insert a screwdriver or weatherstrip tool between the panel and the top of the rocker switch.
- Carefully pry outwards until the switch can be gripped with the fingers. Pull out the switch.

NOTE: Put something between the screwdriver and the surrounding panel so as not to damage it.

- Disconnect connector.

NOTE: The hazard warning signal flasher switch is located under the radio and is replaced in the same way as the other switches.

Installing
- Connect connector. Check that the rocker switch works before installing it in the panel.
- Reinstall rocker switch, press into place in panel.

Test switch function.
