Replacing Cover





Removing cover







- heat sink.

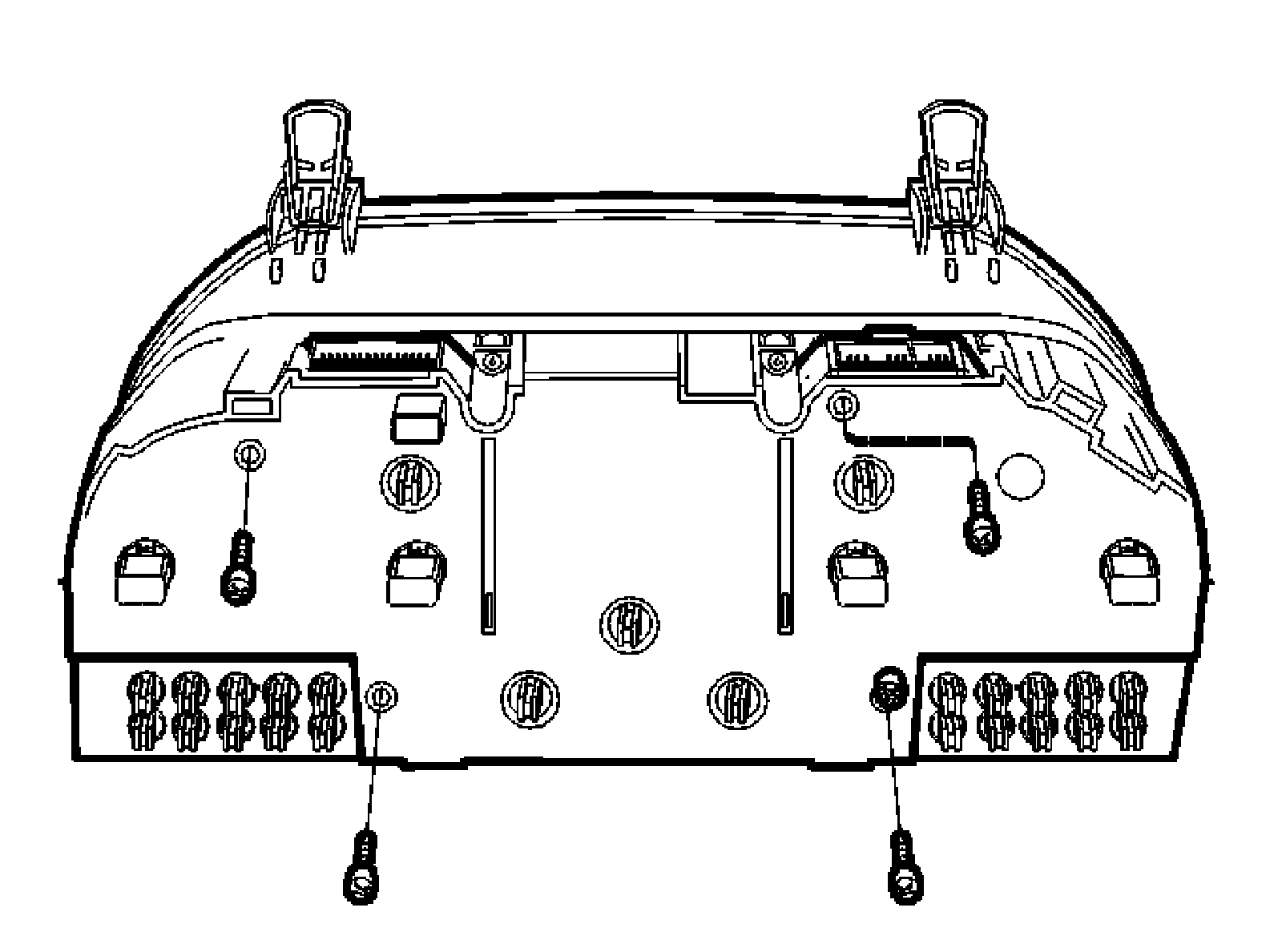

- cover screws.
- release the catches and remove the cover.

Installing cover
- In reverse order.
