Procedures

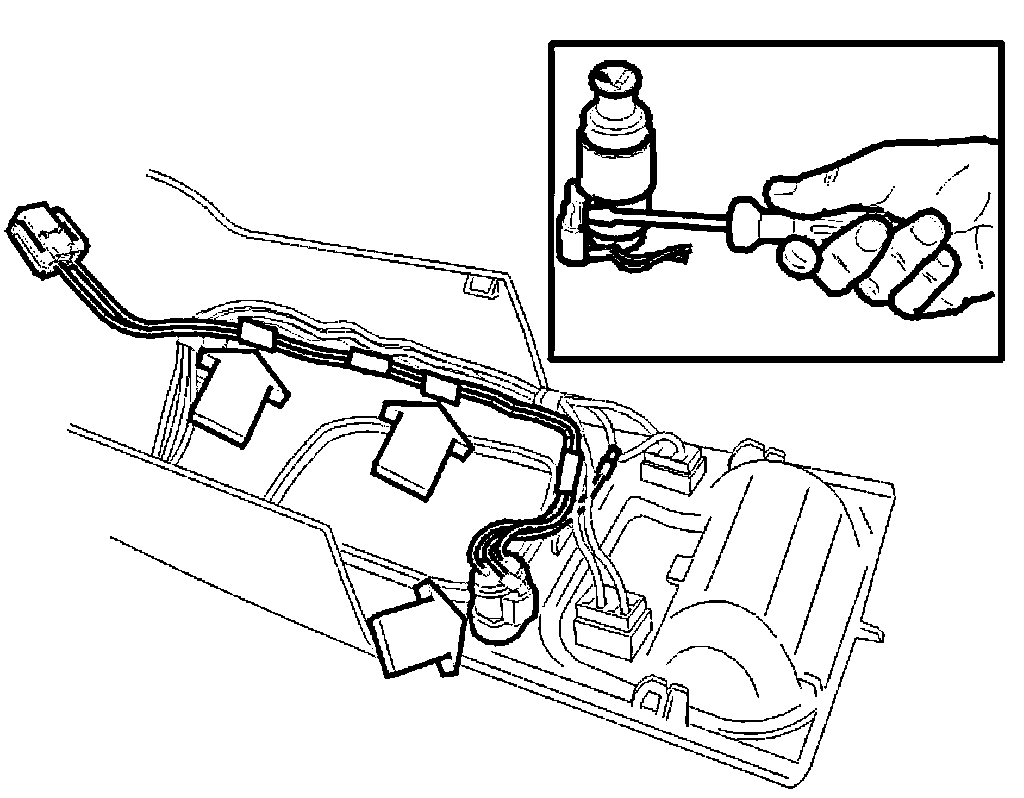

Replacing front cigarette lighter assembly

Ignition off.

Disconnect battery negative lead.

Remove tunnel compartment.

Remove:







- cigarette lighter assembly from tunnel compartment.
- wiring from mountings in tunnel compartment.
- connector from its mounting and disconnect the connector.
- Replace cigarette lighter assembly.
- Assemble in reverse order.

Test cigarette lighter assembly function.

Replacing rear cigarette lighter assembly

Ignition off. Disconnect battery negative lead.

Remove:
- rear ashtray panel
- cigarette lighter assembly connector.
- cigarette lighter assembly from panel.
- Replace cigarette lighter assembly.
- Assemble in reverse order.

Test cigarette lighter assembly function.
