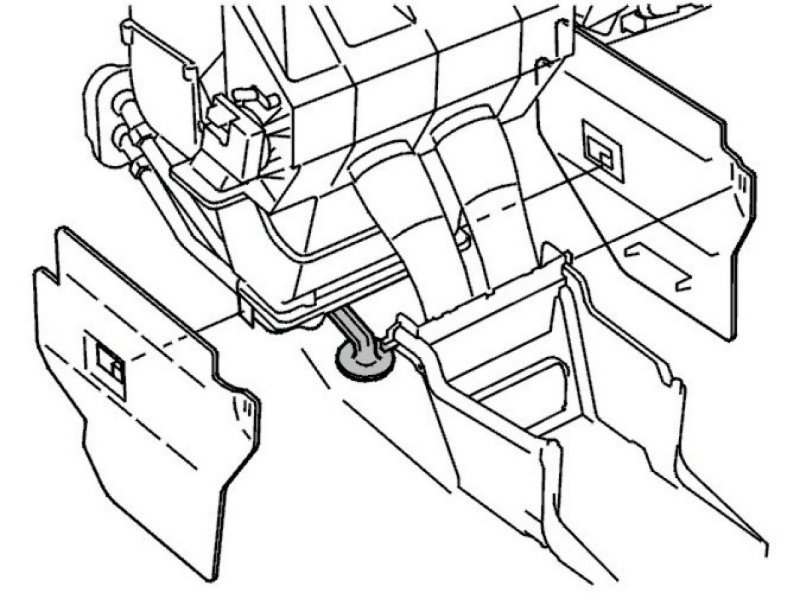

Checking Climate Control Unit Drainage
>>
Fault-Tracing Information
Fault-Tracing Information
Fault-tracing information
Condition
-
No diagnostic trouble codes (DTCs) stored.
Possible source
-
Blocked climate control system drainage.
Fault symptom[s]
-
Mist on inside windows.
-
Odor from climate control system.
