Procedures

Replacing blower fan motor

Removing







- Ignition off.
- Remove glove compartment.
- Remove soundproofing panel.
- Remove knee bolster/member.

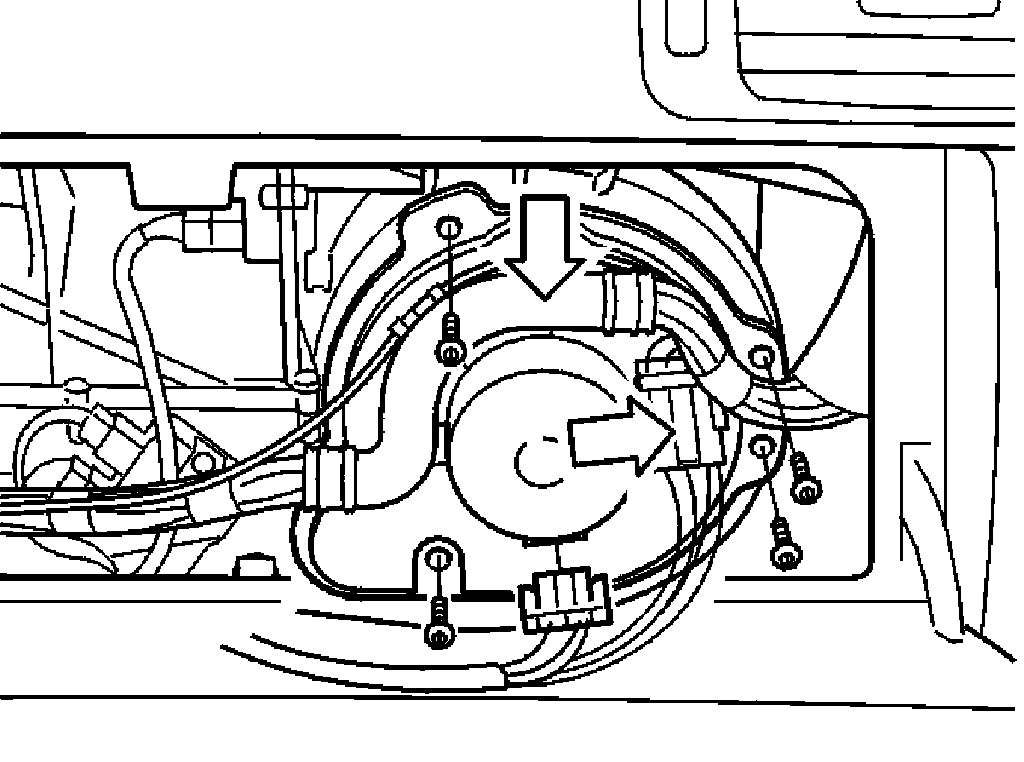

- Disconnect the blower fan motor connector.
- Expose blower fan motor (remove cable duct and disconnect heater aggregate connector from blower fan motor).
- Remove blower fan motor.

Installing
- In reverse order.

Finishing:
- Check that the blower fan is working.
- Check that no diagnostic trouble codes (DTCs) have been stored while the repair was carried out.
