Signal specification Additional heater 912-D/B

General

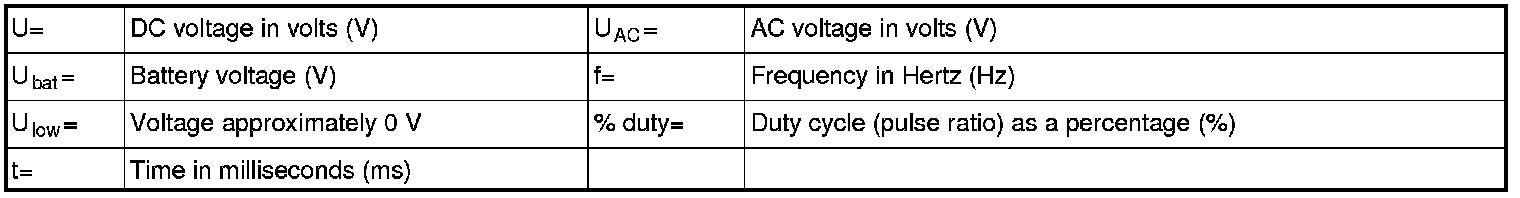

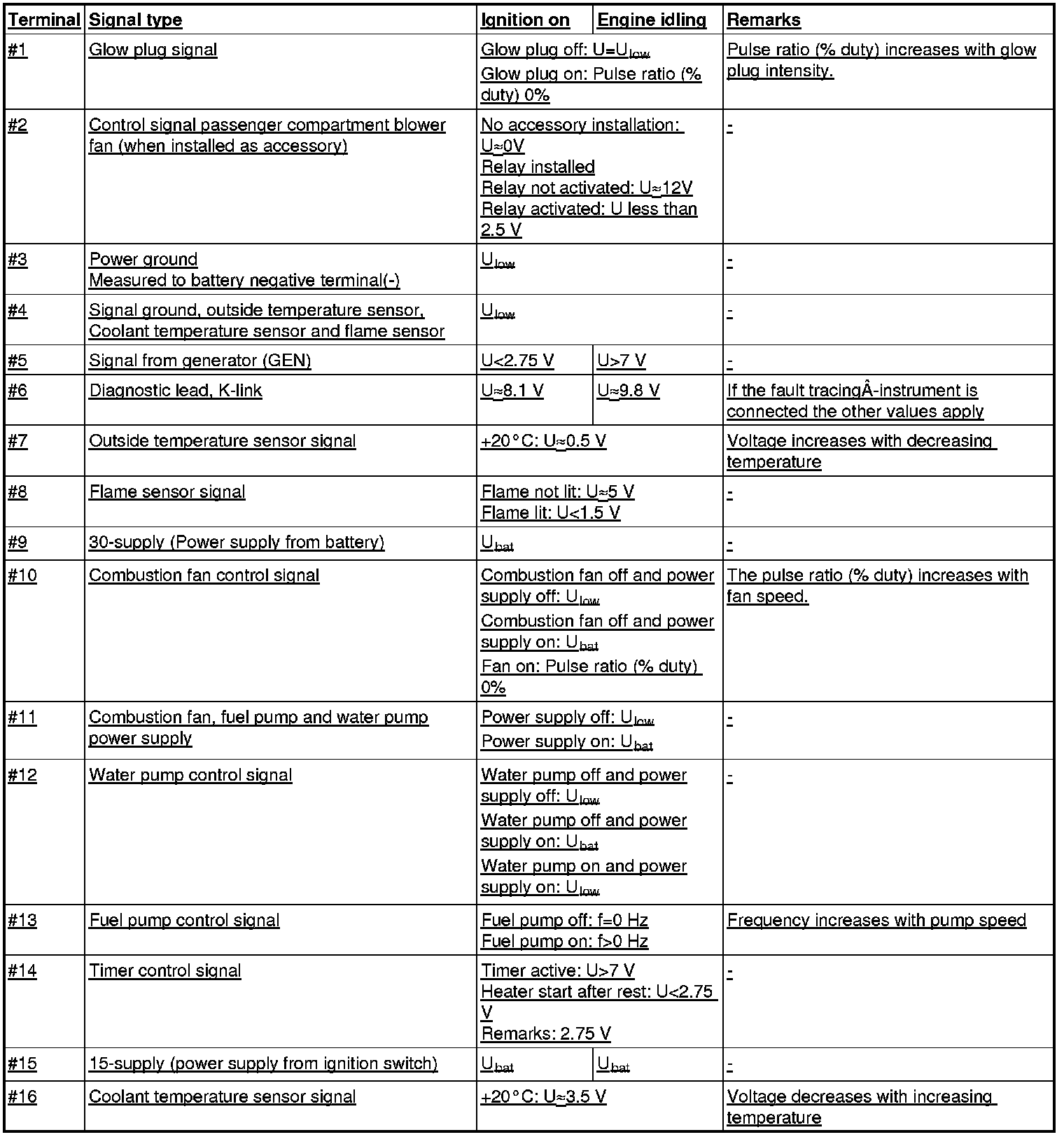

All values given below are between the respective terminal in column 1 and terminal #3 (power ground) unless otherwise stated in brackets after the table entry. Control module terminals #1-#16 correspond to #1-#16 on the breakout box.

Note! It is important to connect the breakout box and check ground terminals before taking readings.
