Engine Block, Installing Components

Engine block, installing components

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Installing engine block components

Note! Always use new seal washers and gaskets!

Install
- thermostat housing (B52x4x)
- knock sensor (KS)
- flame trap
- the pipe screw for the water-heated crankcase ventilation.

If in doubt about the order of assembly see:
B5xx4x Engine body, exposing, B5234T9, B5244T7 Engine Body, Exposing
B6xx4x Engine body, exposing, B5234T9, B5244T7 Engine Body, Exposing

Install the flywheel and carrier plate. See Crankshaft seal rear, replacing, B5234T9, B5244T7 .

For the correct tightening torques see:
B5xx4x Tightening torque, B5234T9 Tightening Torque
B6xx4x Tightening torque Tightening Torque

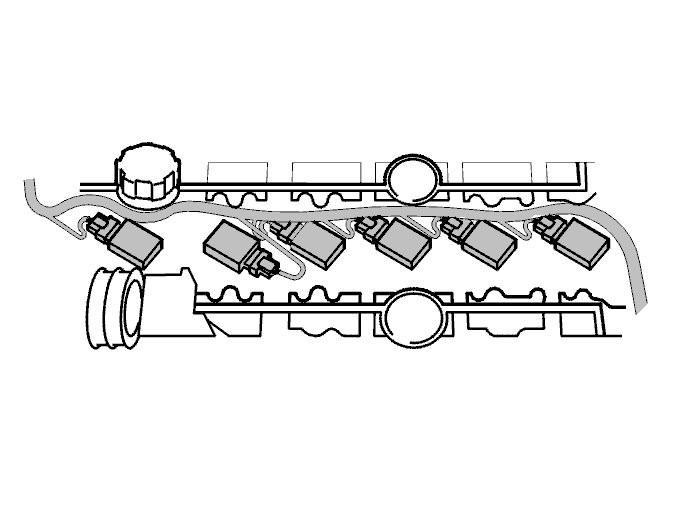

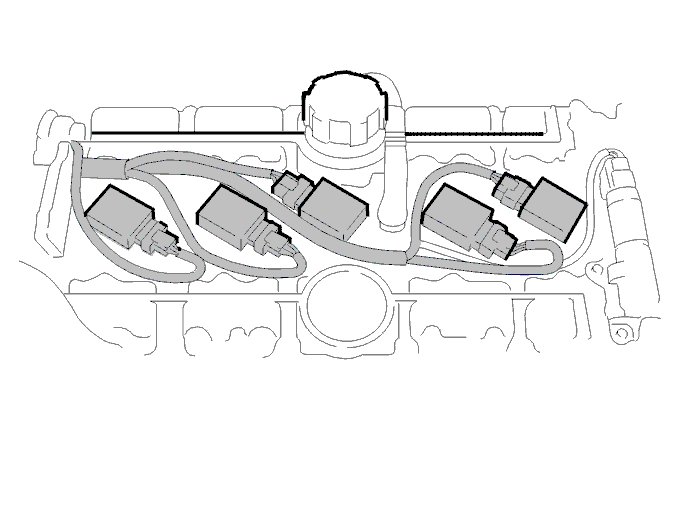

The ignition coil alignment and the wiring routing follows the illustrations below.

B5xx4x





B6xx4x
