Camshaft: Tools and Equipment

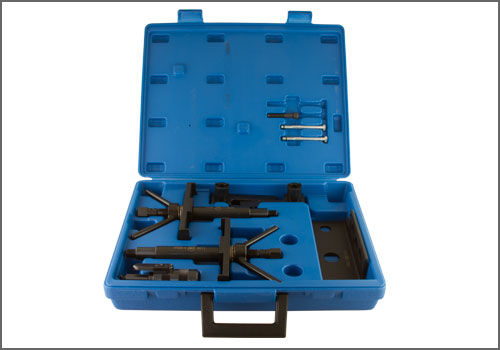

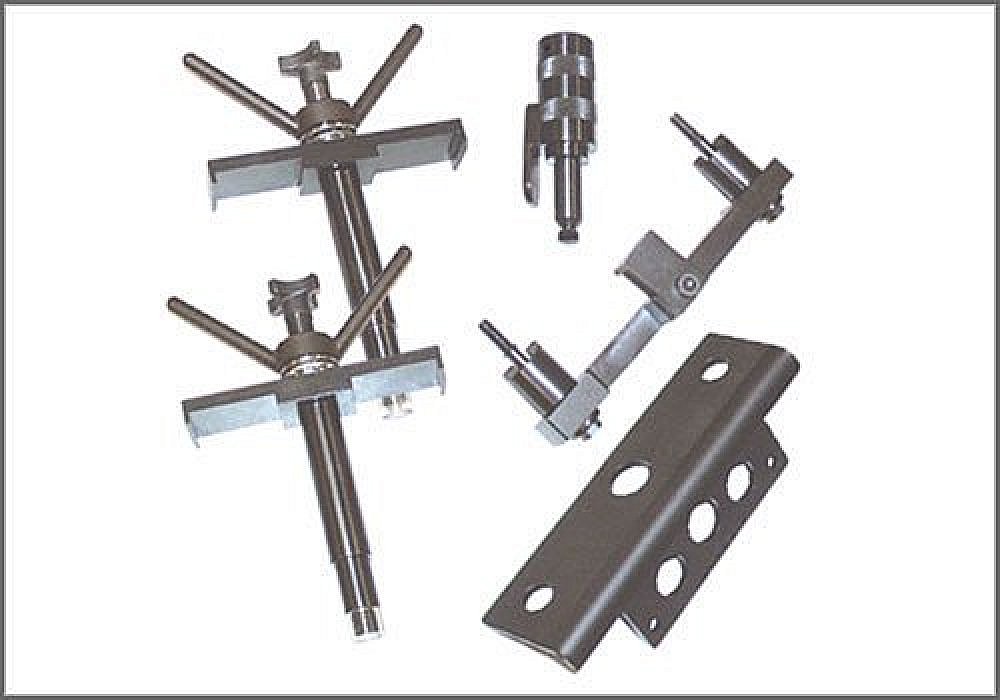

Volvo Camshaft and Crankshaft Timing Alignment Set

AST tool# V 500








This tool is used for the alignment of the camshafts and crankshafts on all In-line 4, 5 and 6 cylinders twin cam motors through 2007, except the 3.2L. May also be used to align the camshafts with the cam cover.

Comparable to Volvo tool numbers: 9995451, 9995452, 9995453 and 9995454.

Applicable to Engines:
B6254GS, B6294T, B5234T4, B6294S2, B5244S6, B5204T2, B5234FS, B4184S2, B5254FS M 4.4, B4204T2, B5244S4, B5254T, B5234T9, B4204T3(US)(CDN), B6304S3, B5204T4, B5244S5, B5204T3, B5204FS, B5252FS, B5254FS M 4.3, B4194T, B6294S, B5244T4, B6254FS, B4184S, B5234T6, B5234T2, B6304FS2,GB5252S, B4204S2, B4204T, B5244S2, B5204T5, B5244T7, B4184S9, B4204T4, B6284T, B5234T5, B6304FS, B4204T3, B5244SG2, B6244FS, B4184SJ, B4204T2 CVVT, B6304GS, B5254T4, B4184S3, B5234T3, B5244T2, B5244T3, B5244T5, B5254T2, B4204S, B5244S7, B5204FT, B5234FT, B5234T8, B5234T7, B5244S, B4184S10, B4194T2, B5254T3, B5254S DENSO, B4164S, B5254FS LH 3.2, B5244SG, B5244T, B4204T5, B5202FS, B4164S2, and D4192T2


- Used for Alignment of Camshafts and Crankshafts
- All In-line 4, 5 and 6 Cylinders Twin Cam Motors through 2007, except the 3.2L
- Made in USA

Contact AST for pricing.

Assenmacher Specialty Tools
1-800-525-2943
