Information Bus

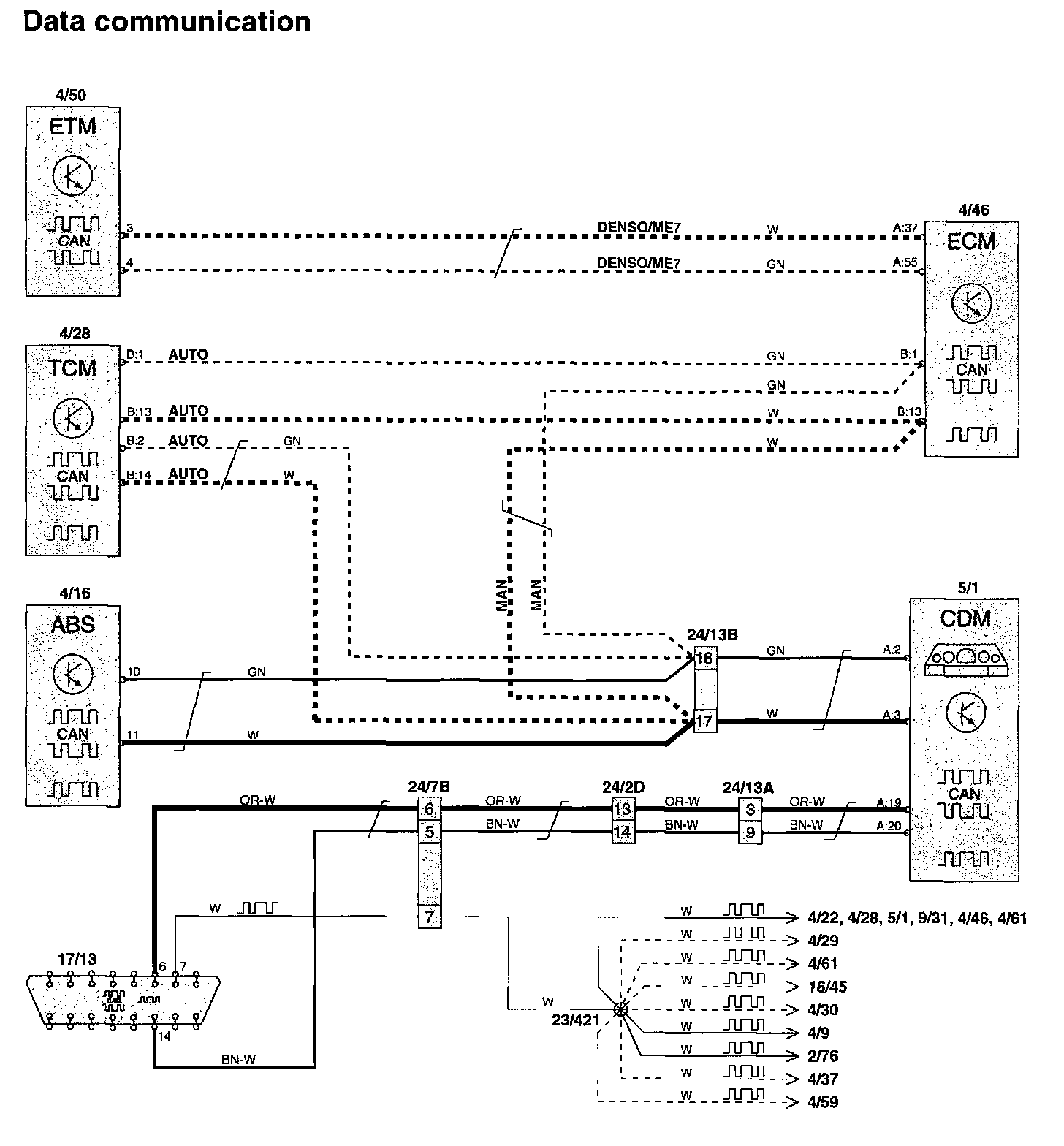

Data Communication - Part 1:

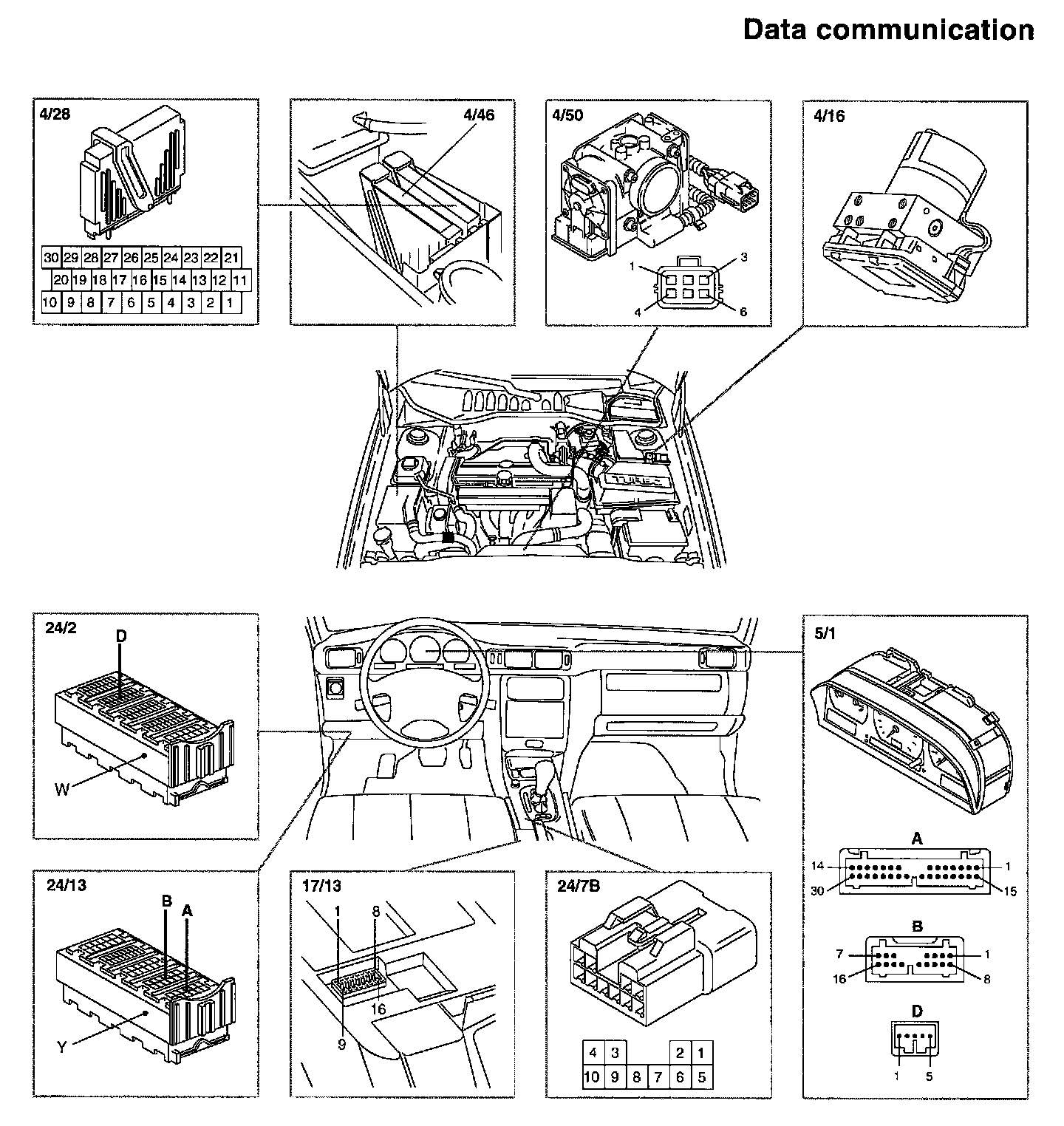

Data Communication - Part 2:

Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code Identification and Other Abbreviations
