License Plate Lamp

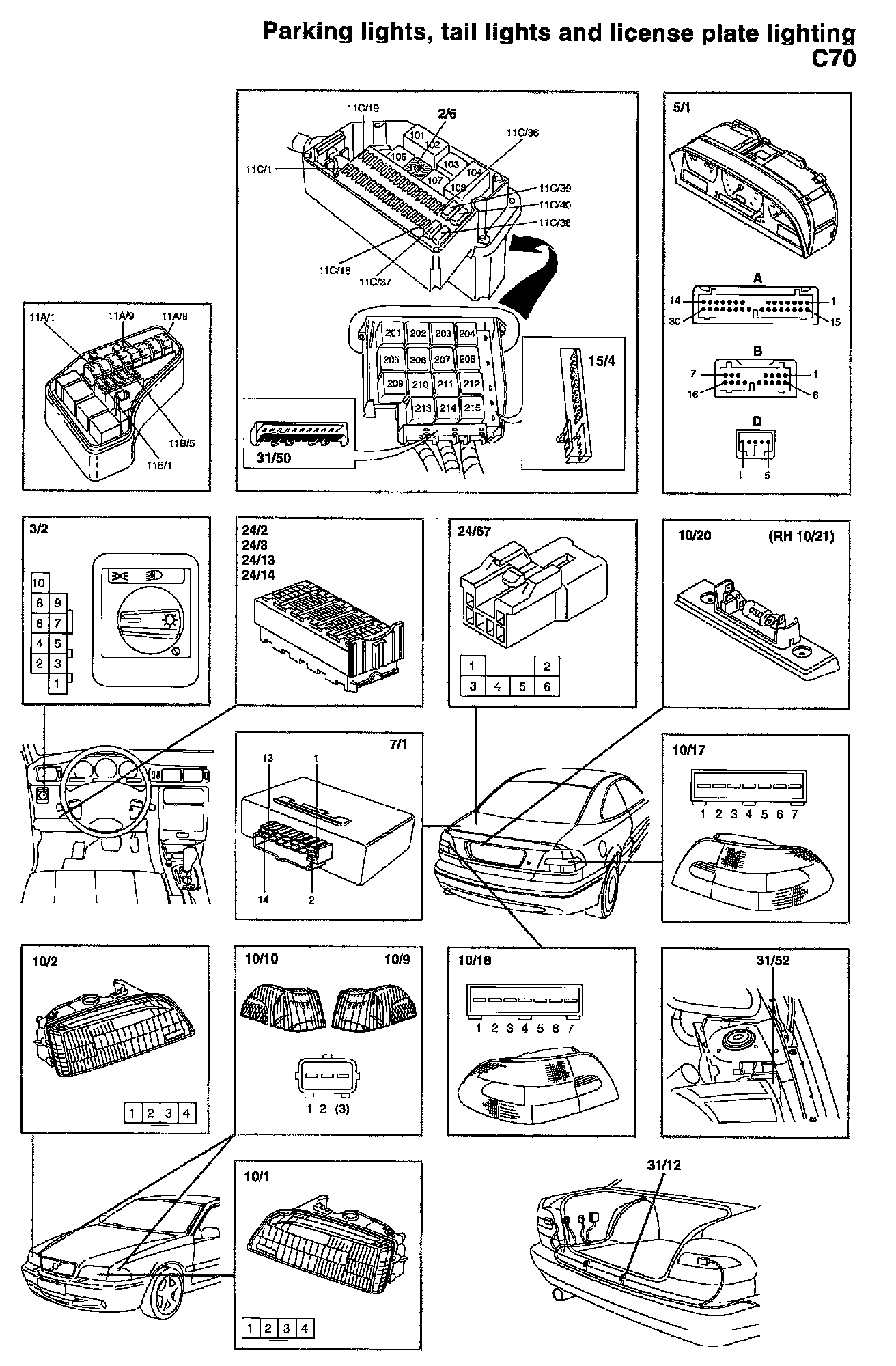

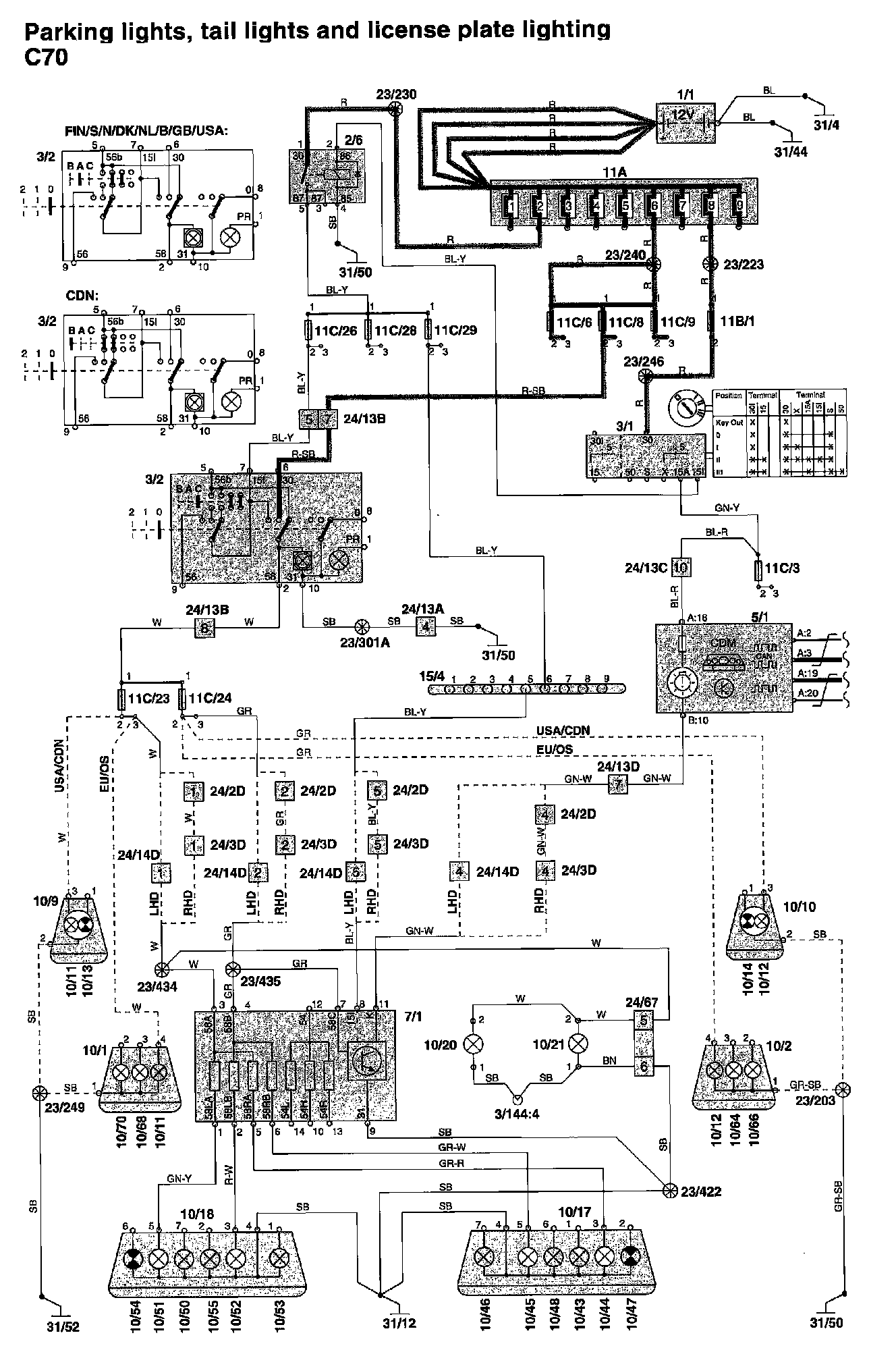

Parking Lights, Tail Lights And License Plate Lighting - Part 1:

Parking Lights, Tail Lights And License Plate Lighting - Part 2:

Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code Identification and Other Abbreviations
