C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

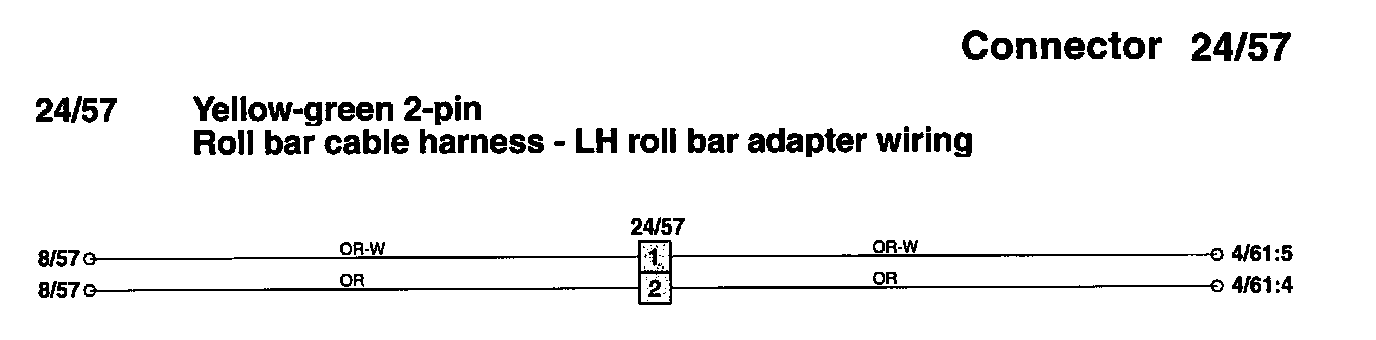

24/57
24/57
24/57:

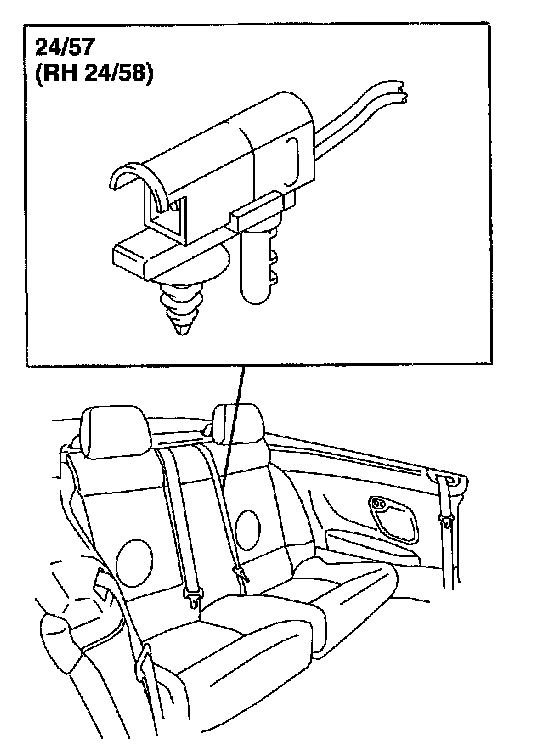

Connector 24/57, RH 24/58:
