C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/3A
24/3A
24/3A:

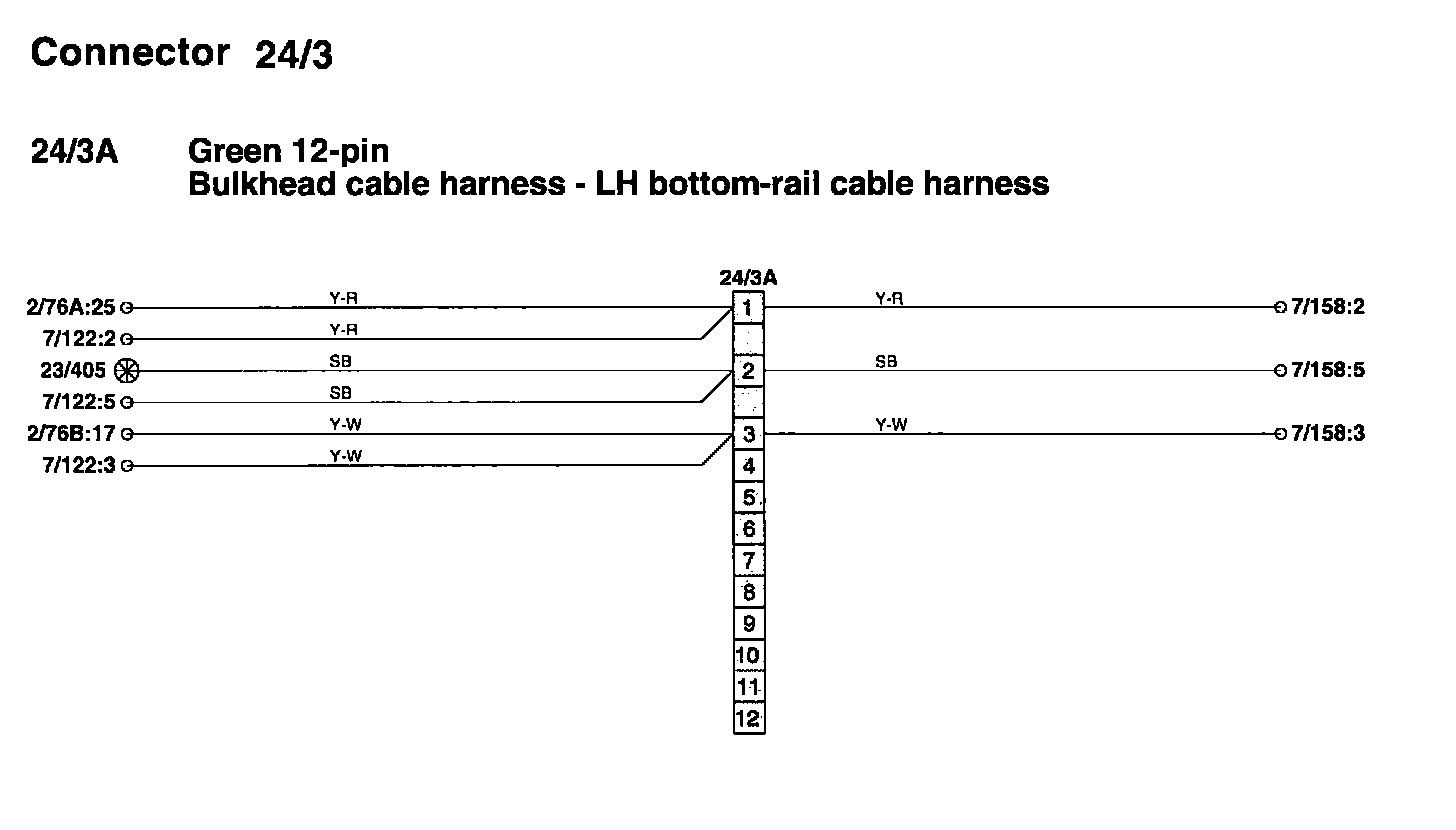

Connector 24/3A, 24/3B, 24/3C:
