C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/19
24/19
24/19:

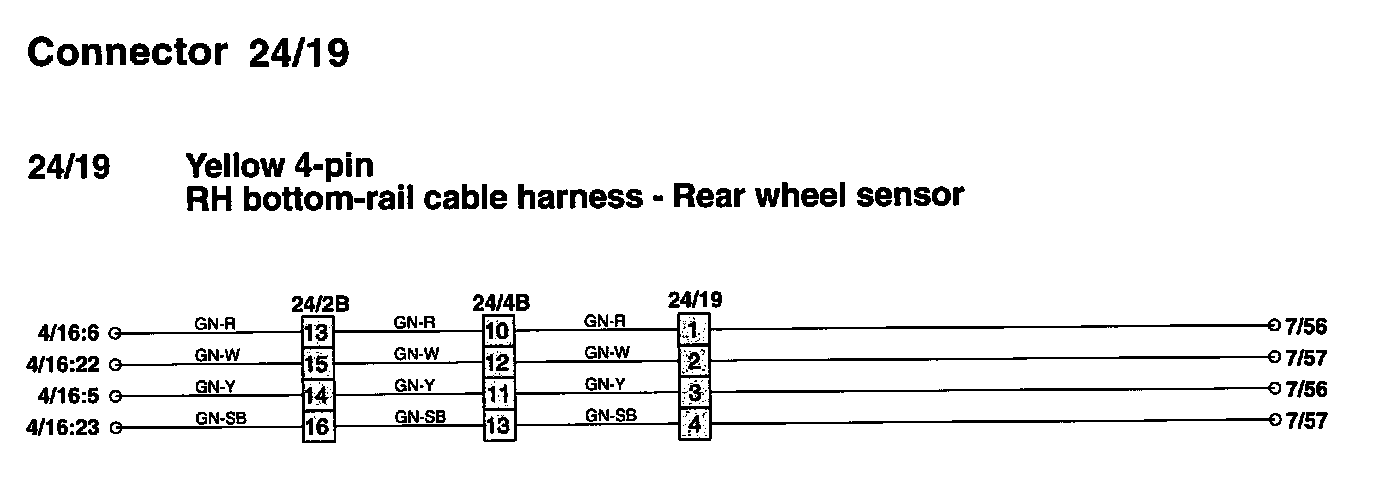

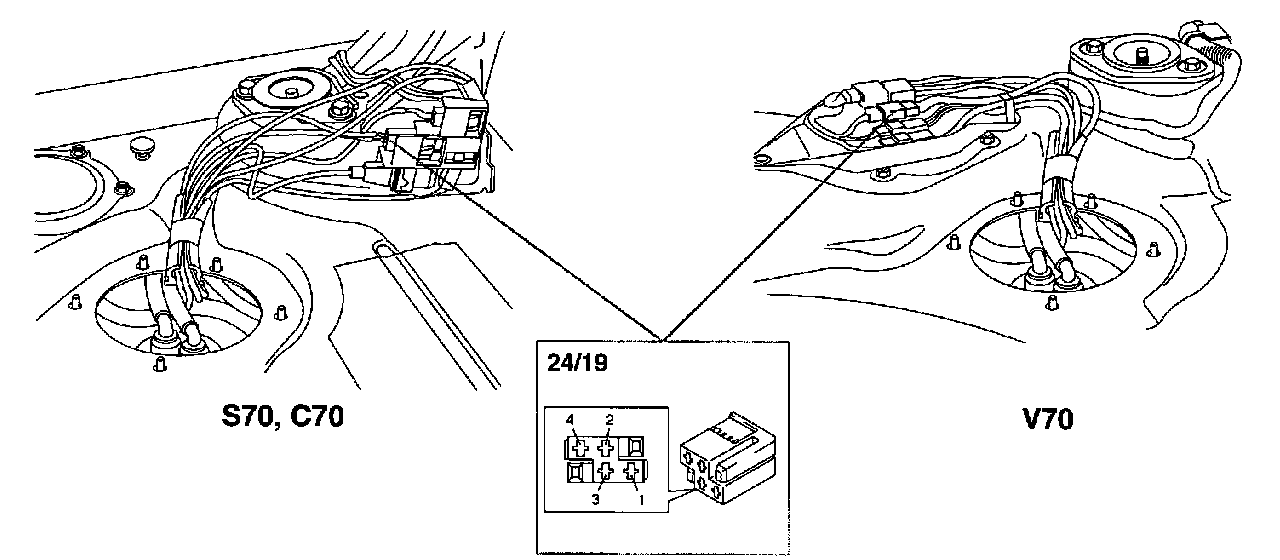

Connector 24/19:
