C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/17
24/17

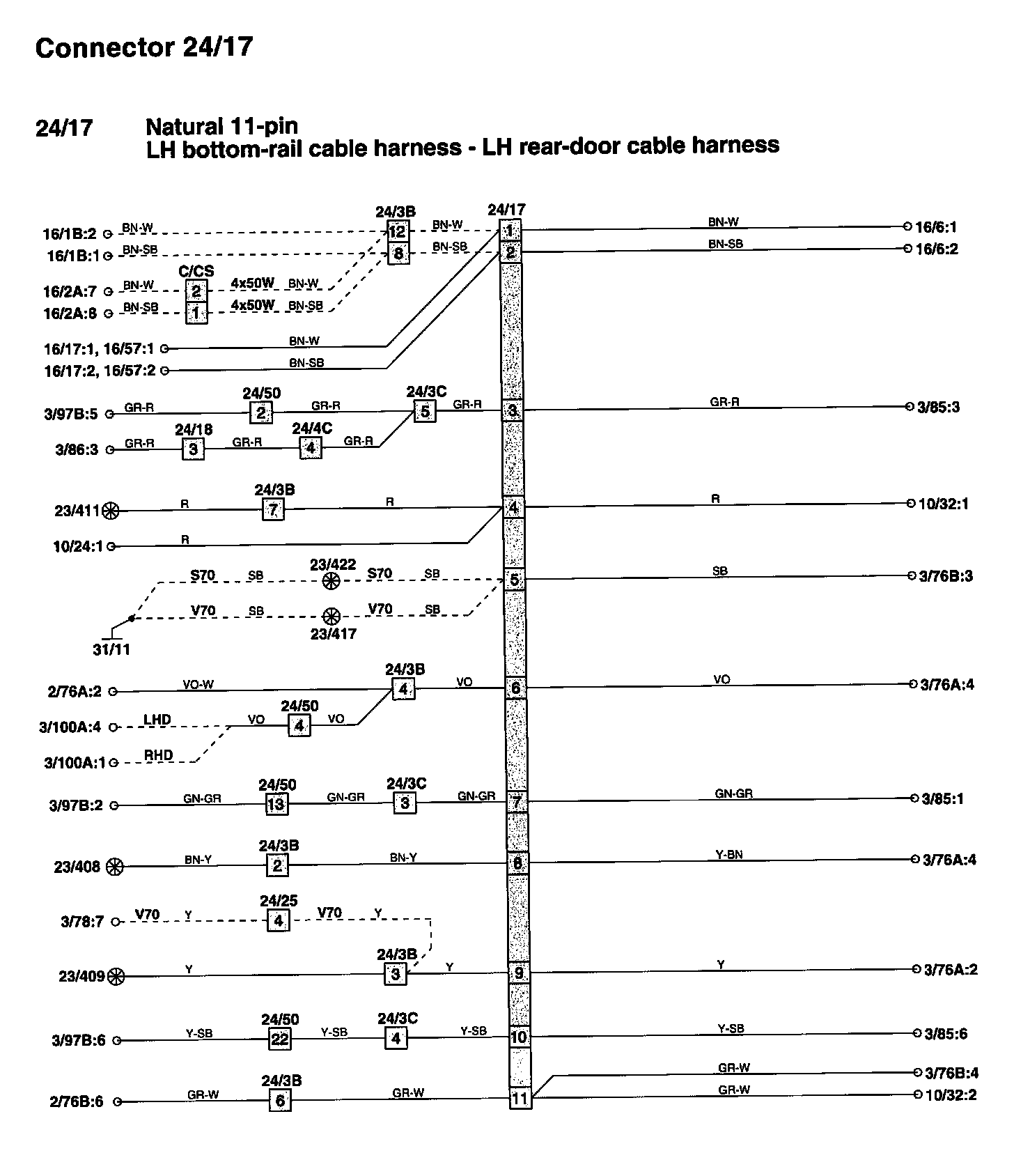

24/17:

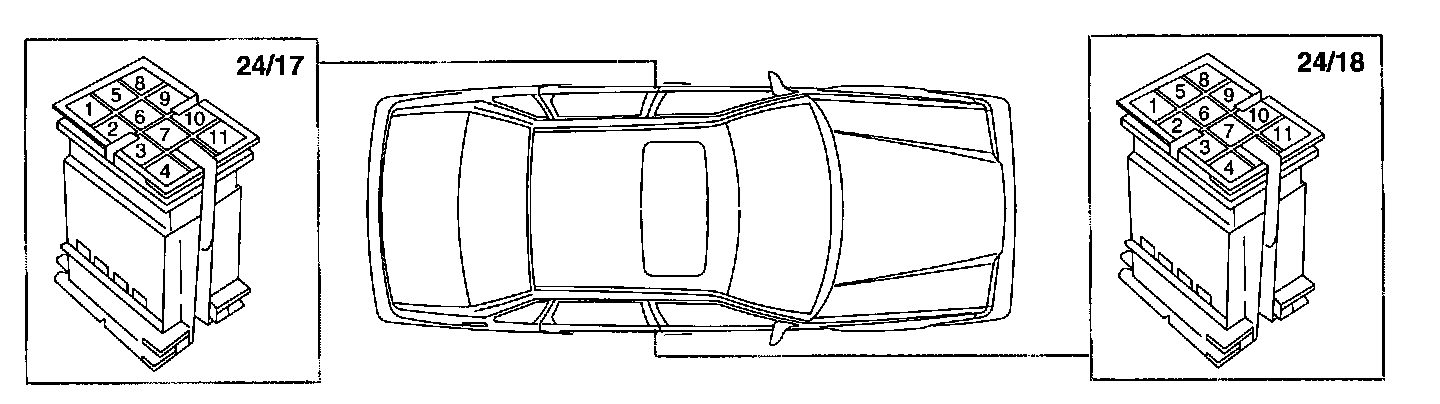

Connector 24/17, 24/18:
