C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/13C
24/13C

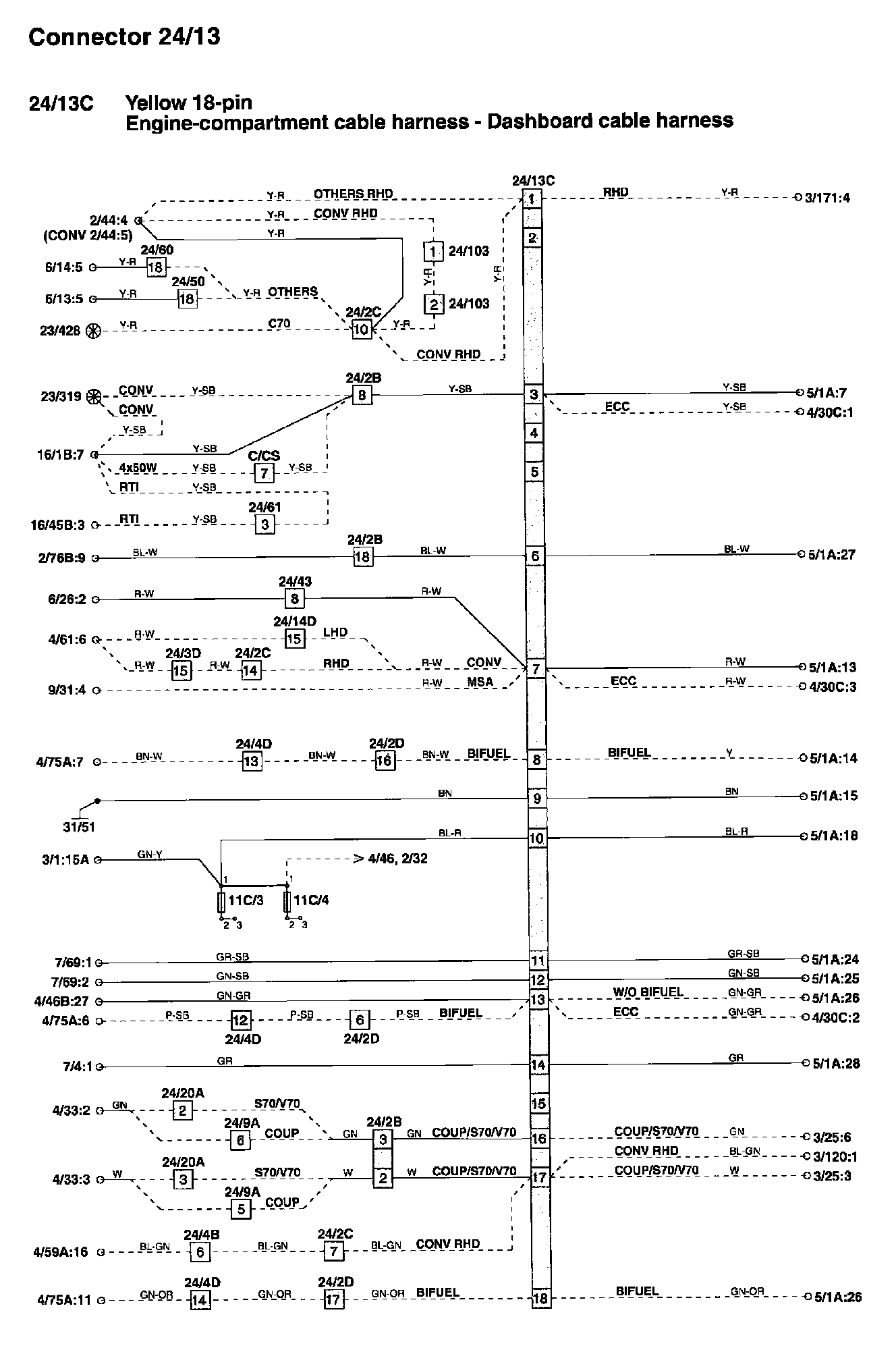

24/13C:
Connector 24/13A, 24/13B, 24/13C, 24/13D:
