C70 Convertible L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/13B
24/13B
24/13B:

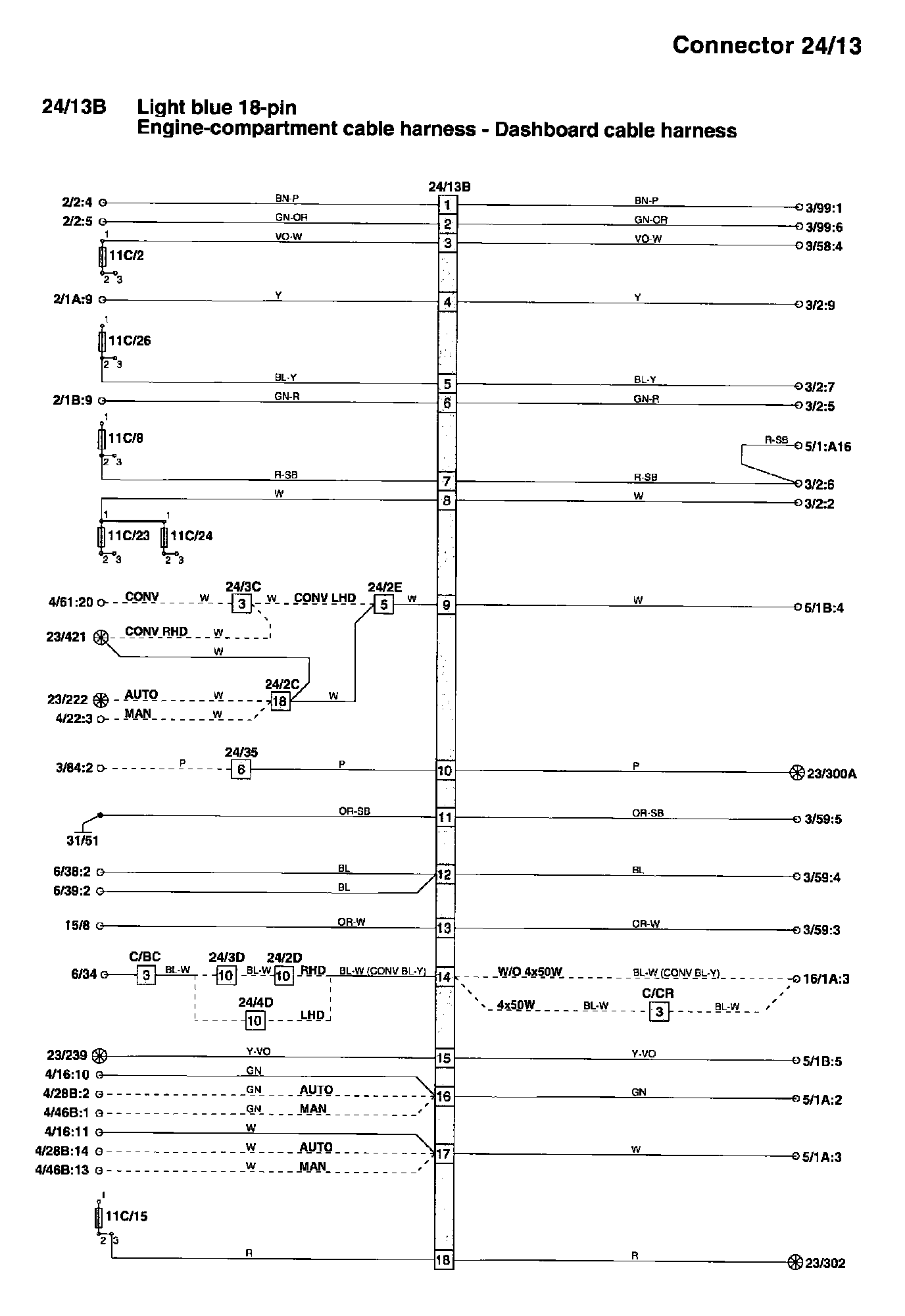

Connector 24/13A, 24/13B, 24/13C, 24/13D:
