Procedures

Brake Cable (Later Version), Replacement

NOTE: There are two types of cable cover.

Older version:
- cable cover with loose guide sleeve towards end piece.

Later version:
- cable cover with fixed plastic guide sleeve towards end piece.

The removal and installation procedures are different for the two types. Follow instructions for the appropriate type.

Preparations
- Check that ignition is switched off.

Removing center console







- Remove cigarette lighter panel (2 bolts). If DLC is fitted, remove this from panel first.
- Put parking brake on and put gearshift in neutral.

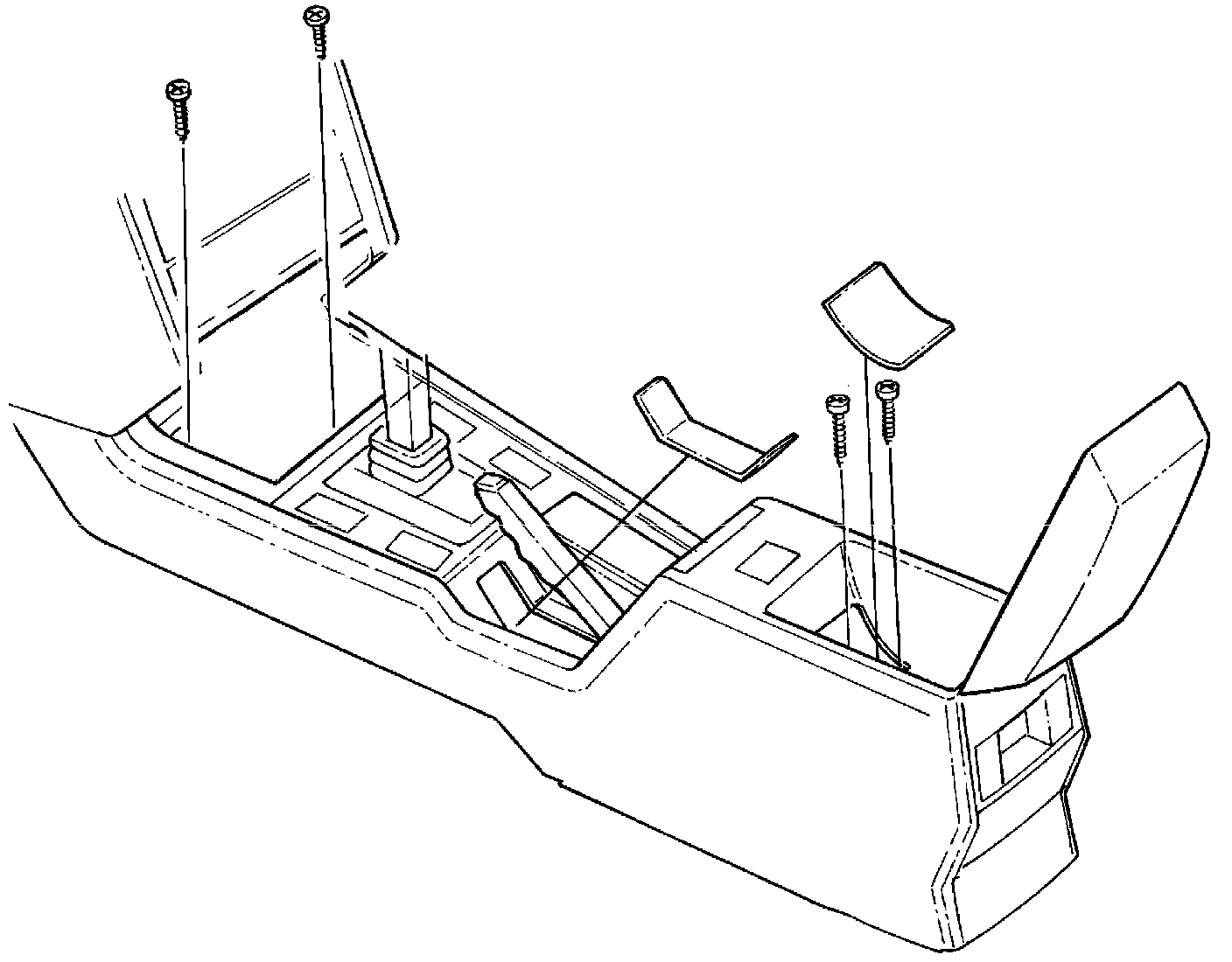

- Remove the two cover panels, one under the hand brake lever and the other under the armrest.
- Remove the four console bolts.
- Undo the connectors at the front of the console.

Cars with manual gearshift:
Undo gearshift gaiter from tunnel console by pressing on gaiter's rear snap fastening from underneath through the hole under the parking brake lever.

- Lift rear end of console first and press it forwards until the parking brake lever comes free of the console cross-member.
- Now lift front edge and remove console.

Removing cable







- Remove rear wheel.
- Remove cable clip mounting bolt located in front of rear wheel arch.
- Remove cable clip and rivet on carrier arm.

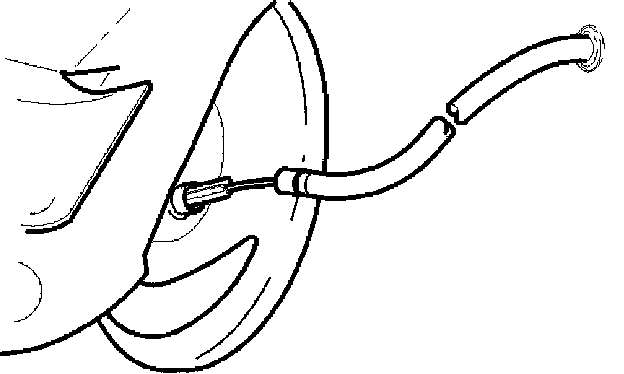

- Undo cable from carrier arm end piece by bending cable cover guide sleeve up and down moderately.
- Remove cable rear end from grip on expander.
- Remove cable.

Installing cable







- Insert new cable through floor from outside.

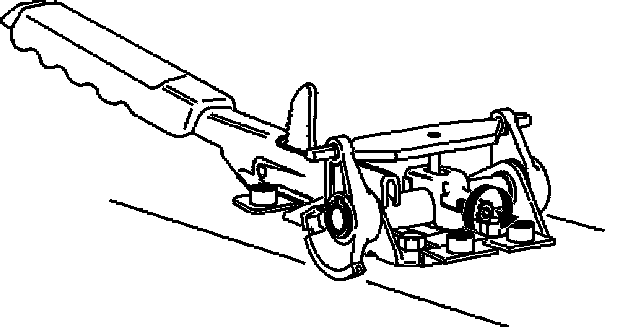

- Install cable front end in parking brake mechanism.







- Check that O-ring on cable cover guide sleeve is OK.
- Install cable end in grip on expander.
- Pinch grip on expander around cable with a pair of pliers.
- Press guide sleeve home in carrier arm end piece.
- Install cable to carrier arm with a new clip and rivet.
- Install mounting bolt in front of rear wheel arch.

Installing center console







- Install center console in reverse order to that in which it was removed.

Car with manual gearshift:
- Attach gearshift gaiter by hooks at front of tunnel console.
- Press snap fasteners on sides and at back together.
