Home >> Volvo >> 2001 >> C70 Convertible L5-2.4L Turbo VIN 56 B5244T >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Signal Tables. Power Seat >> Connector D

Connector D






Connector D

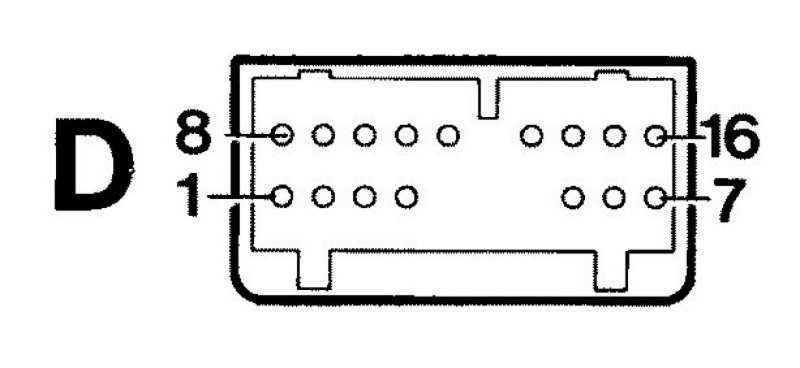

16-pin green connector
Type: JAE

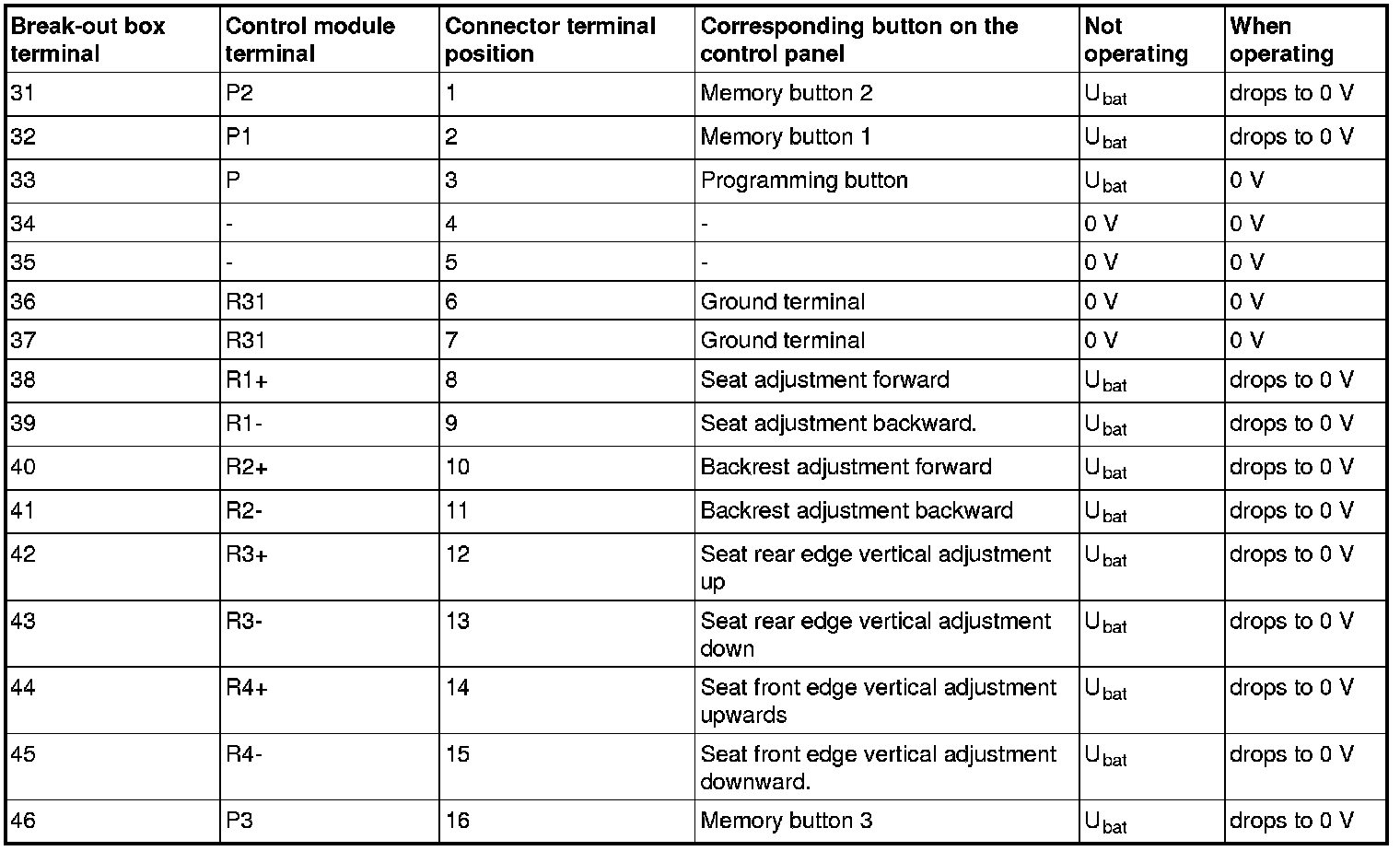

Measurements taken on ground side, terminal 36 on break-out box, unless stated otherwise.
Ubat = Battery voltage
