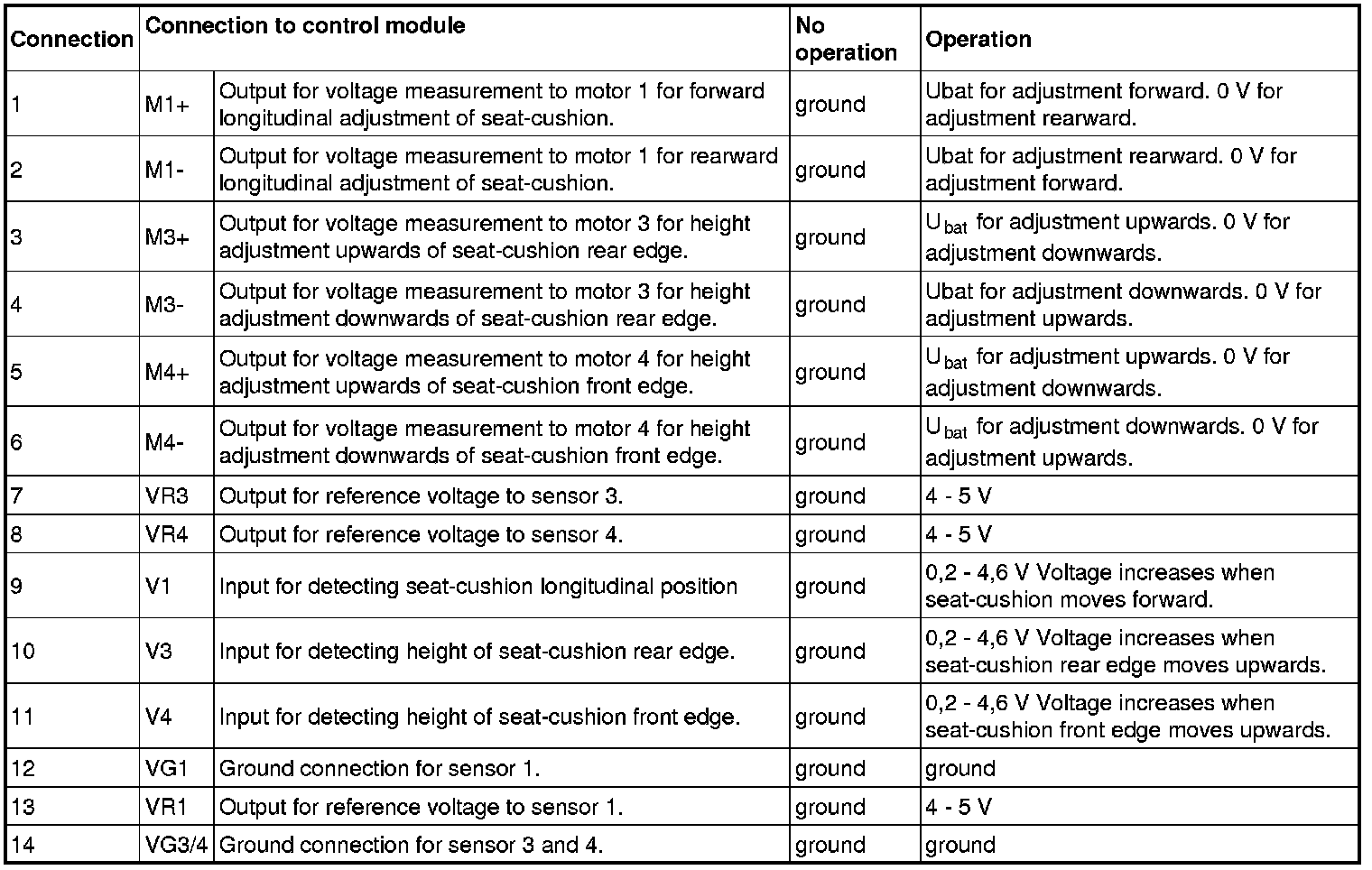

Home >> Volvo >> 2001 >> C70 Convertible L5-2.4L Turbo VIN 56 B5244T >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Signal Tables. Power Seat >> Connector C

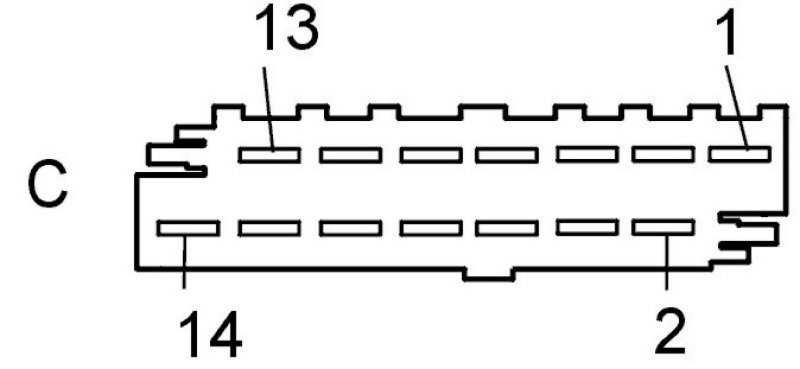

Connector C






Connector C
