Front-Rear Adjustment Motor (Center Motor)

Front-rear adjustment motor (center motor)

Preparations

Remove:
- the seat from car according to Lifting the power seat in and out Lifting the Power Seat In and Out.
- the connectors according to Connector Connector.

Removing the center motor





Remove:

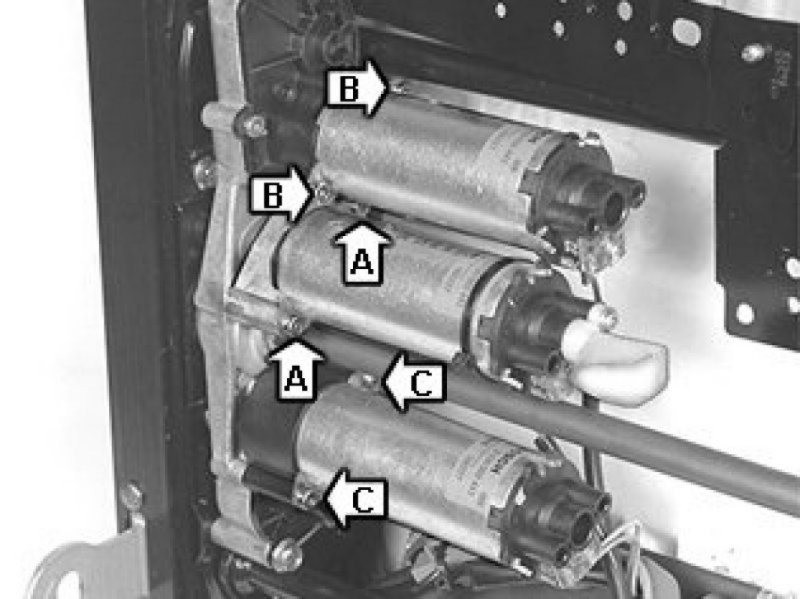

- two screws (A).
- the motor.

Install:
In reverse order.
Tightening torque for the seat to the floor: 48 Nm.
