Control Panel

Control Panel

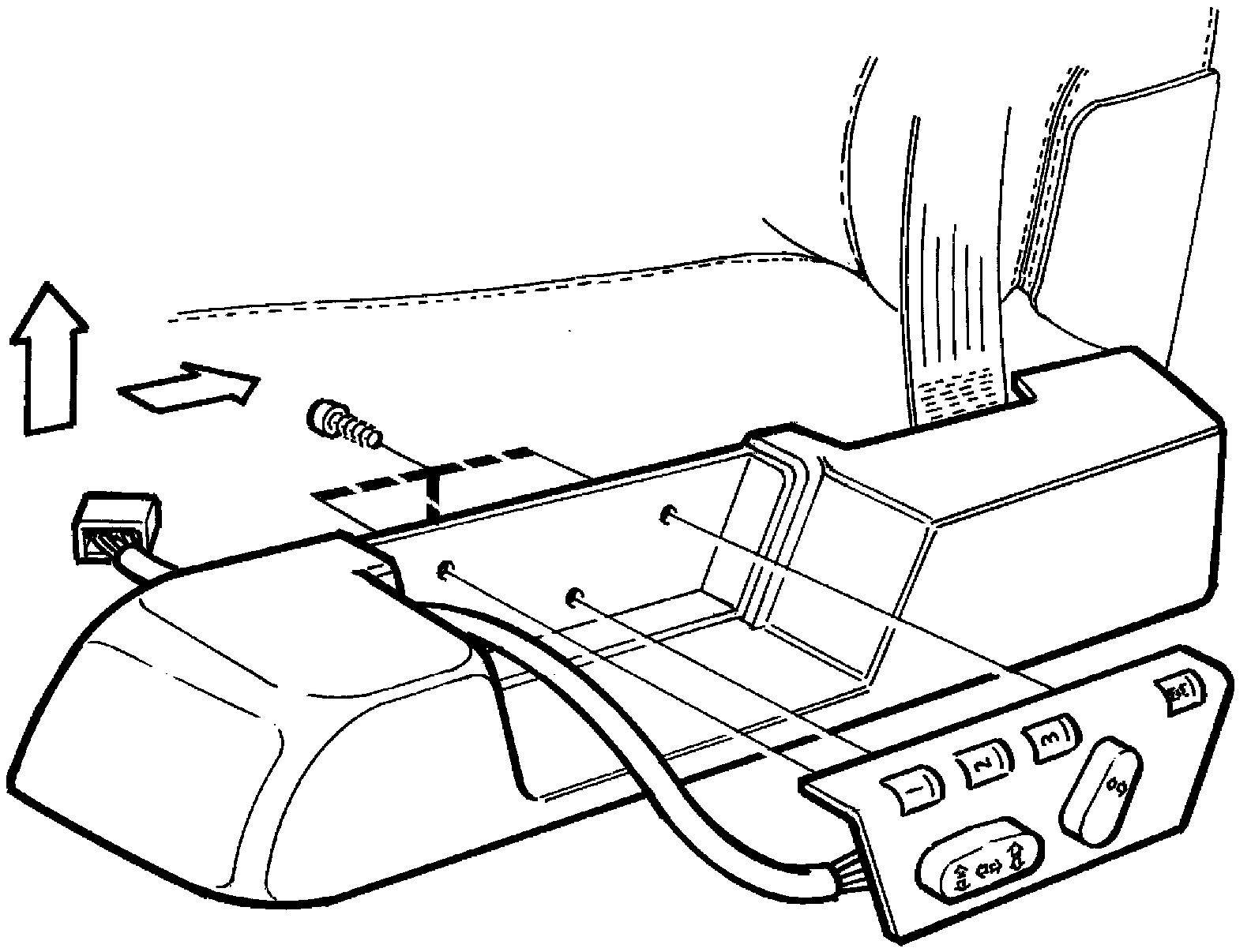

Remove:










- side panel.

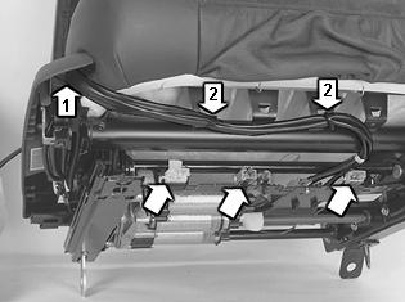

- connector from control module (under the front edge of the seat cushion).
- tie straps (2).
- the three screws on the rear of the side compartment.

Install:
- In reverse order.
