Cables For Folding Down the Seat and Moving It Forward

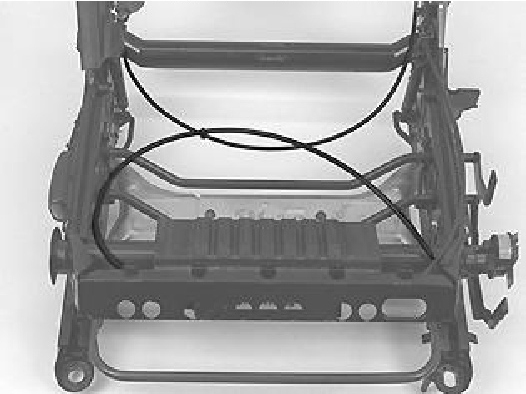

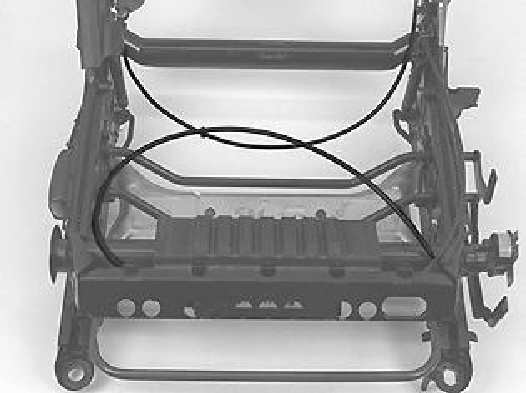

The cable for the fold-down mechanism

Remove:







- the seat from the car.
- Slacken off the tensioner on the cable
- Pull the cable back.










- Pull out the cable.
- Replace the cable.

Install:
- In reverse order.

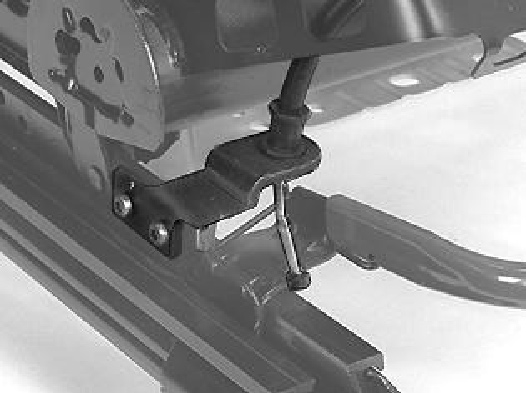

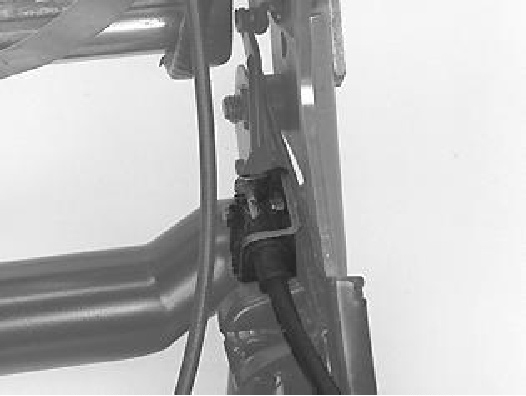

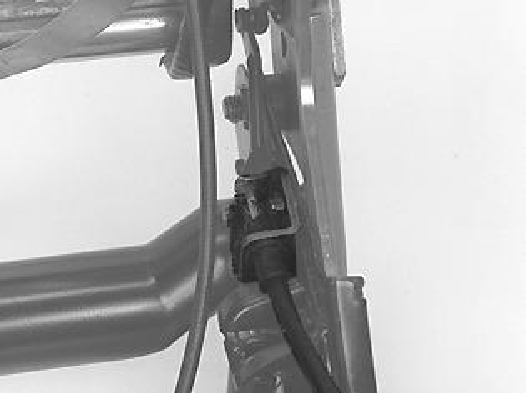

The cable for moving the seat forward

Remove:







- the seat from the car.







- Slacken off the tensioner on the cable.







- Twist and pull the cable from its mounting.
- Replace the cable.

Install:
- In reverse order.

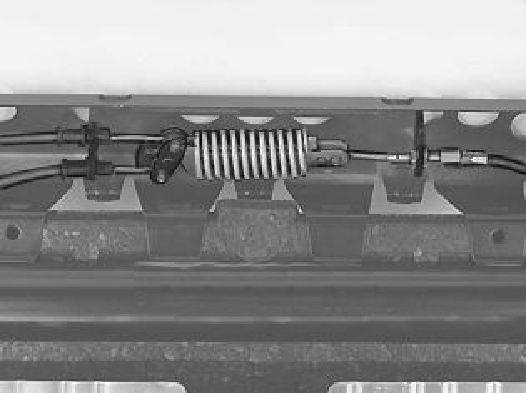

Removing spring tensioner

Remove:







- the seat from the car.
- Slacken off the tensioner on the cable.
- Twist and pull the cable back.













- Detach the cable from the mountings.
- Twist the cable against the spring
- Replace the cable.

Install:
- In reverse order.
