Seat Latch: Service and Repair

WHIPS

Preparations

Remove:
- the seat from the car.
- the lumbar support knob.
- the backrest adjustment knob.

Replacing WHIPS

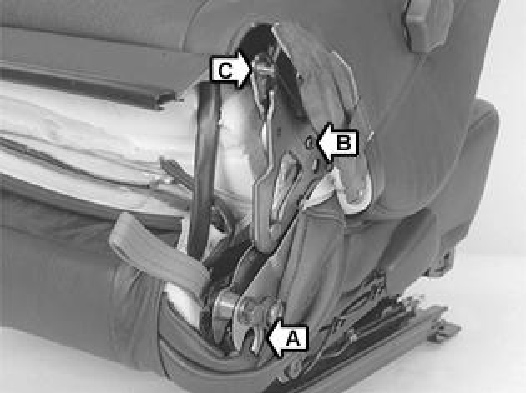

If indicator B is not intact:
- Screw the backrest adjustment as far forwards as possible.
- Release folding mechanism A. Fold the backrest forward.
- Disconnect spring C.

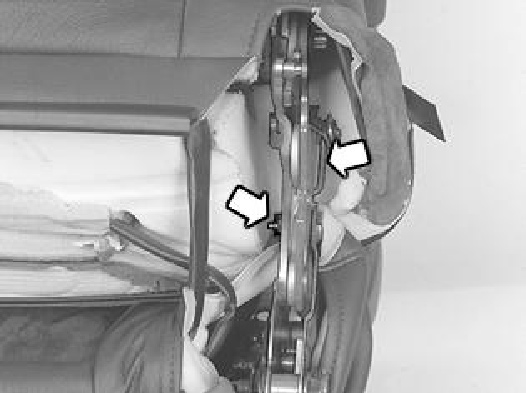

Remove:







- the indicator pin or its remains
- one nut on each side.







- one shaft/screw on each side
- sliding washer.

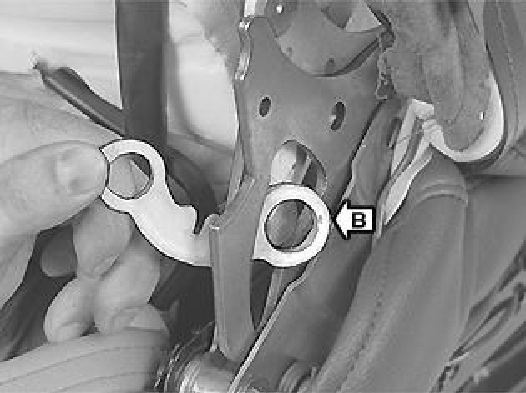

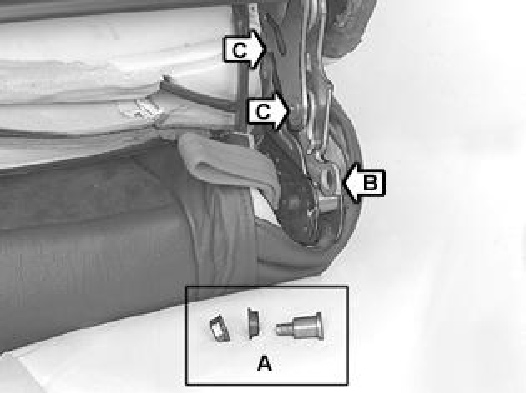

- Use a screwdriver to lift apart the mounting at C in order to angle out segment B.







- Remove the segment: Twist it and angle it out.

NOTE: The segment can only be removed when it is in one particular position.

- Replace the segment.

Install:
- In reverse order.

NOTE:
- The nut must be tightened. Tighten to 17 Nm ±1 Nm.
- The sliding washer must be positioned correctly.

- Check that the indicator pin is intact and is correctly positioned after installation.
