Upholstery, Head Restraint, Front Seat, Replacing

Upholstery, head restraint, front seat, replacing

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparations

NOTE: A zip fastener catch is required to carry out this work. This is not included with the upholstery but is ordered separately.

Removing upholstery







- Remove the head restraint.

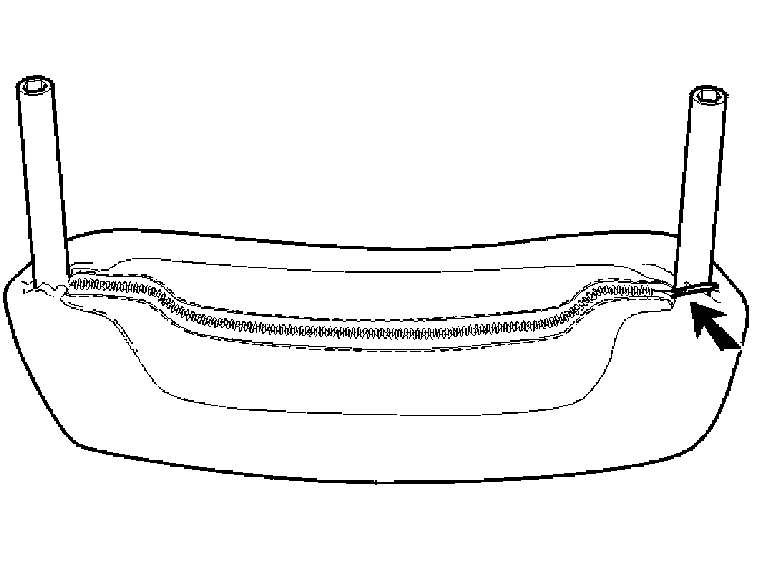

- Cut the upholstery at the zip fastener.
- Remove the upholstery.

Installing upholstery

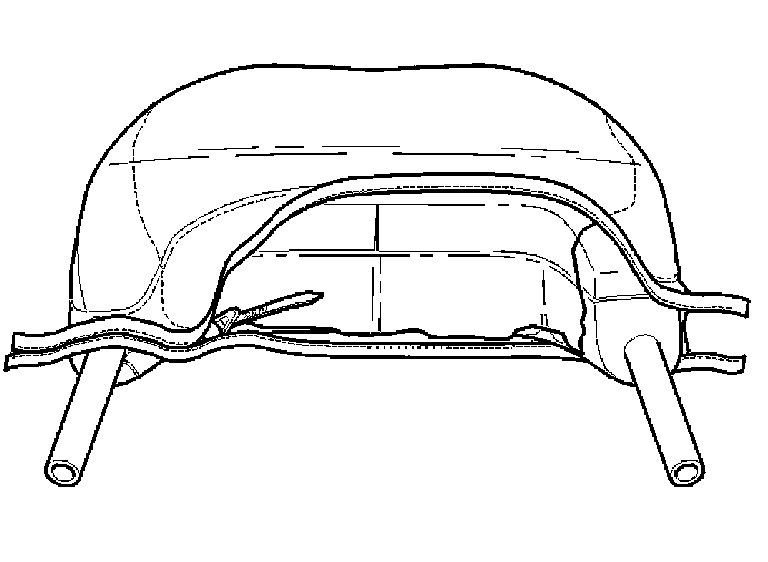

- Install the upholstery.
- Close the zip fastener.

NOTE: Ensure that all seams are correctly positioned and the padding is not kinked under the upholstery.
