Protective Pad

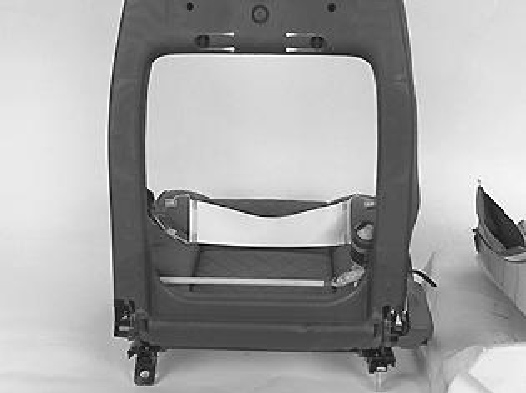

Replacing protective pad

Remove:






- Carry out Backrest upholstery.
- Fold out and release the protective pad by the backrest adjustment and lumbar adjustment knob.
- Press out the clip in the rear of the protective pad.
- Replace protective pad.

Install:
- In reverse order.
