Seat Bladder: Service and Repair

MECHANICAL/POWER FRONT SEATS

Lumbar Support

Replacing lumbar support

Remove:







- the backrest upholstery.
- the lumbar support strap.

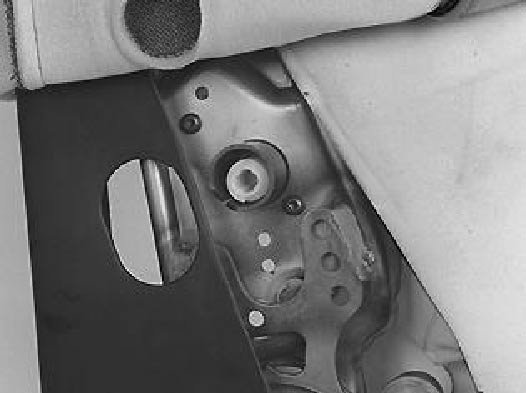

- Remove two screws from the mechanism.
- Press the mechanism inwards.
- Unhook the spring from the backrest frame.
- Replace damaged components.

Install:
- In reverse order.

Removing lumbar support strap







- Remove backrest upholstery.

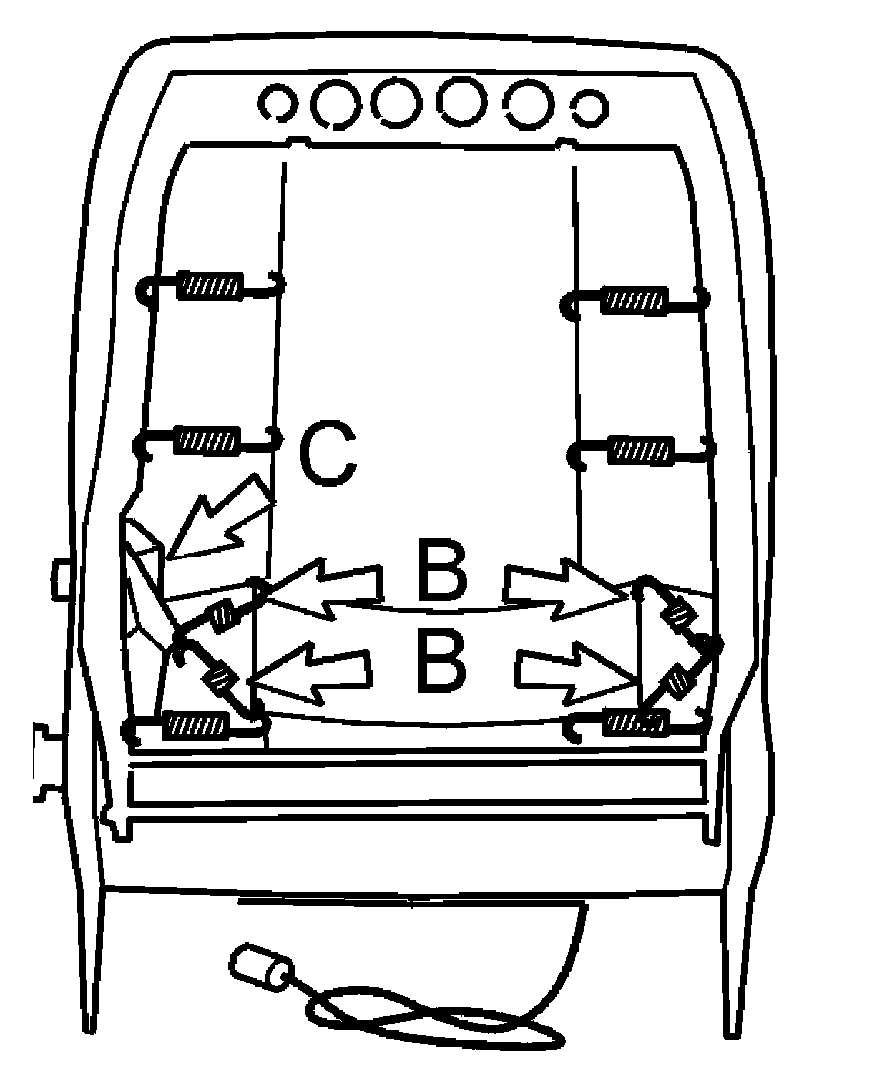

- Disconnect the springs from mountings (B) in the backrest frame and lumbar support adjustment mechanism.
- Replace damaged components.

Install:
- In reverse order.

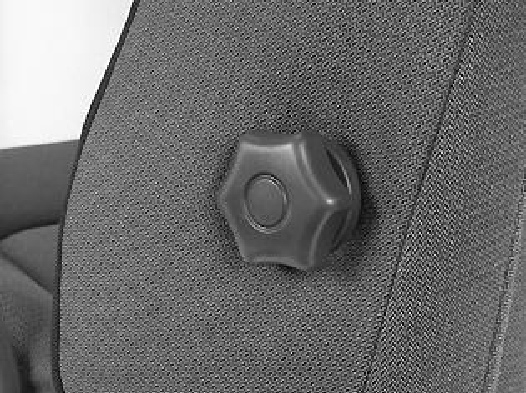

Replacing the lumbar support adjustment knob







- Screw the knob anti-clockwise until stop.
- Continue screwing anti-clockwise and pull out hard.

Install:
- Press the knob on and screw the knob into place.
