Backrest Fold-Down Mechanism Assembly

Backrest fold-down mechanism assembly

Preparations

Remove:
- the seat from the car.
- the seat from the car.
- the backrest upholstery.
- handle.
- side piece, angle and pull down.

Removing the mechanism










- Disconnect the micro-switch.
- Replace cables.
- Remove upholstery as illustrated.

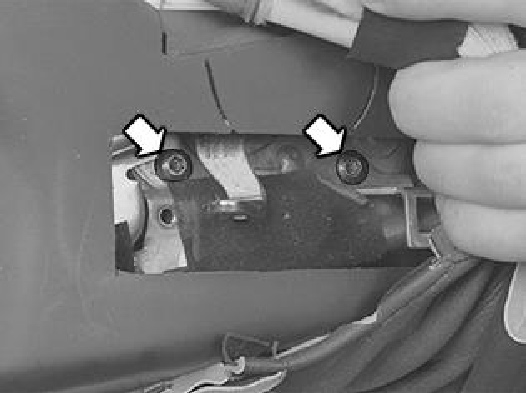

- Remove the two screws.

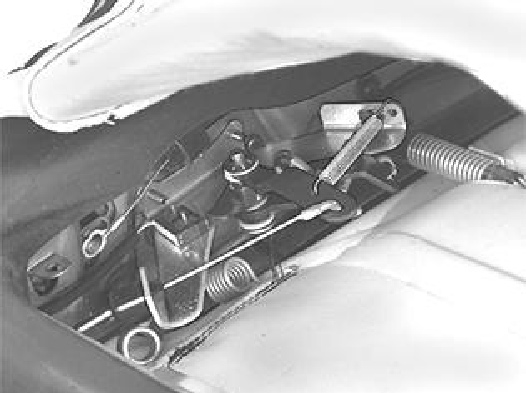

- Remove the mechanism.

Install:
- In reverse order.
