Replacing the Micro-Switch For Backrest Folding

Replacing the micro-switch for backrest folding

Preparations

Remove:
- the seat from the car.
- the backrest upholstery.
- Fold the backrest forward.

Removal

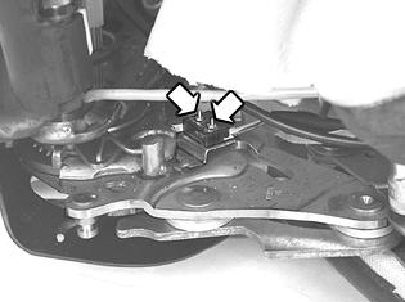

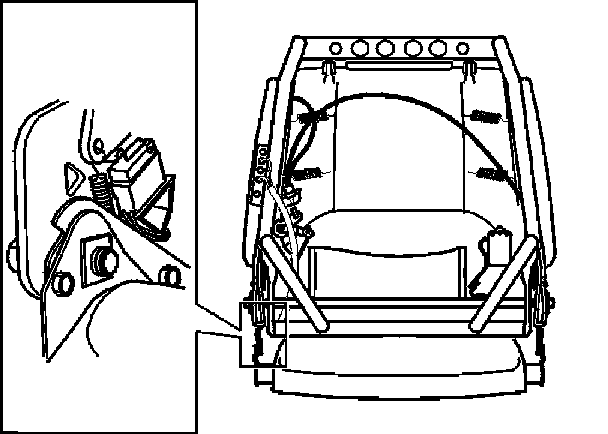

NOTE: Check the location of the micro-switch before removing it.

- Cut of the tie strap.
- Remove the micro-switch from the seat.
- Disconnect the connector.
- Replace the micro-switch.
- Install in reverse order.
