Replacing the Backrest Micro-Switch

Replacing the backrest micro-switch

Preparations

Remove:
- the battery negative lead.
- the seat from the car.
- the backrest upholstery.

Removal

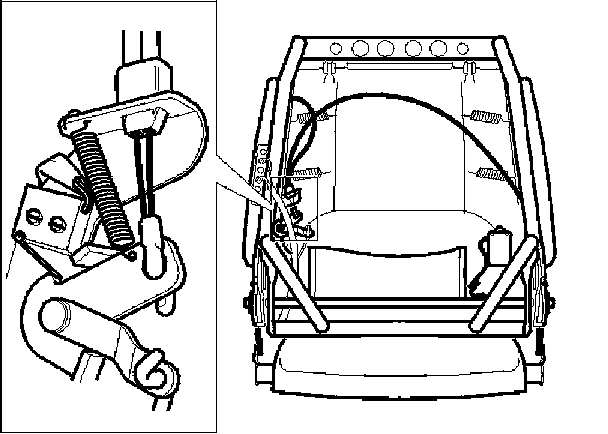

NOTE: Check the location of the micro-switch before removing it.

- Cut of the tie strap.

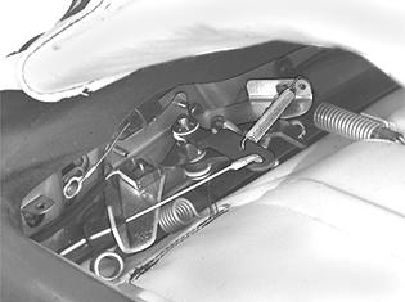

- Remove the micro-switch from the tilt mechanism.
- Disconnect the connector.
- Replace the micro-switch.
- Install in reverse order.
